DTC P2122, P2123 App Sensor: Wiring Diagram

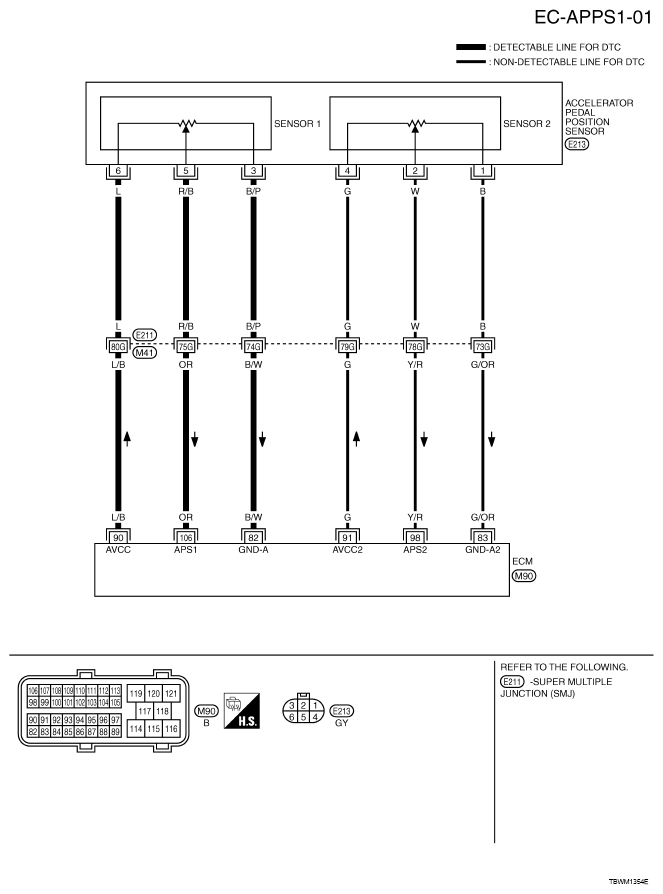

Fig 1: APP Sensor - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

SPECIFICATION DATA

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
82	B/W	Sensor ground (APP sensor 1 / ICC steering switch / ASCD steering switch)	[Engine is running] Warm-up condition Idle speed	Approximately 0V
83	G/OR	Sensor ground (APP sensor 2)	[Engine is running] Warm-up condition Idle speed	Approximately 0V
90	L/B	Sensor power supply (APP sensor 1)	[Ignition switch: ON]	Approximately 5V
91	G	Sensor power supply (APP sensor 2)	[Ignition switch: ON]	Approximately 5V
98	Y/R	Accelerator pedal position sensor 2	[Ignition switch: ON] Engine stopped Accelerator pedal: Fully released	0.15 - 0.60V
98	Y/R	Accelerator pedal position sensor 2	[Ignition switch: ON] Engine stopped Accelerator pedal: Fully depressed	1.95 - 2.40V
106	OR	Accelerator pedal position sensor 1	[Ignition switch: ON] Engine stopped Accelerator pedal: Fully released	0.5 - 1.0V
106	OR	Accelerator pedal position sensor 1	[Ignition switch: ON] Engine stopped Accelerator pedal: Fully depressed	3.9 - 4.7V
