Intelligent Key Operation Inspection

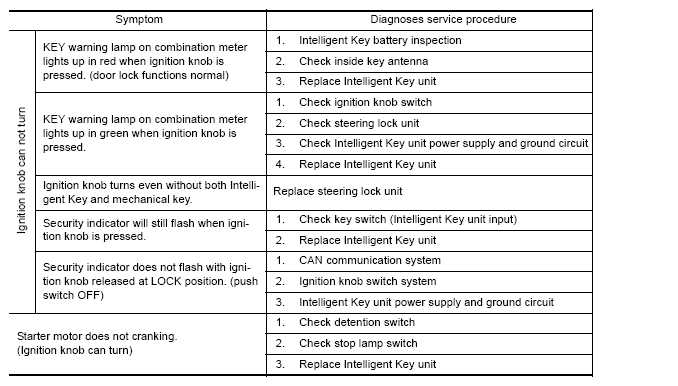

Fig 1: Identifying Intelligent Key Operation Inspection Chart
G05220879Courtesy of NISSAN MOTOR CO., U.S.A.
