Removal and Installation: Notes

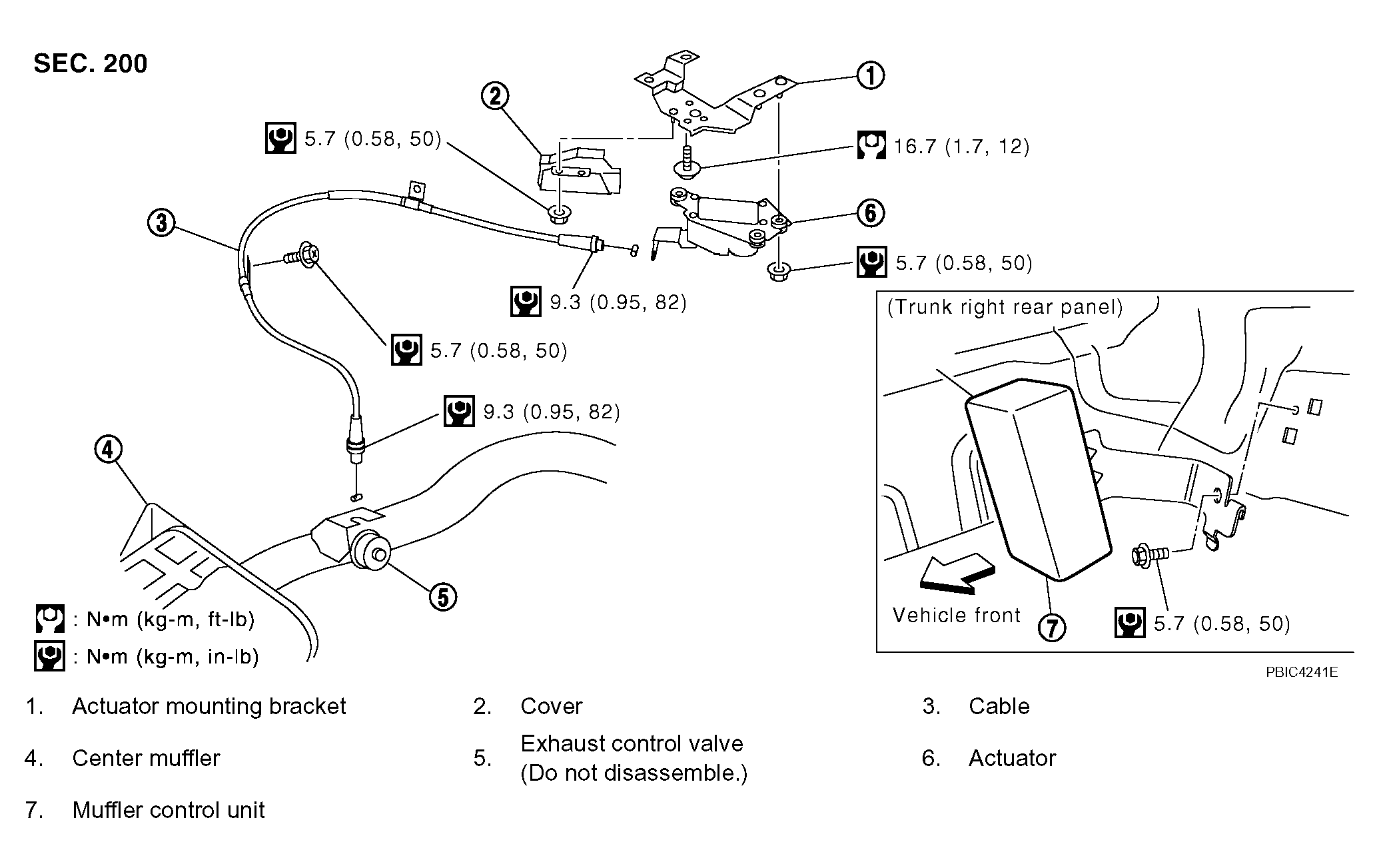

Fig 1: Dual Mode Muffler With Torque Specifications
G04127923Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Exhaust control valve is provided in center muffler and not permitted to disassemble.
