Inspection Procedure

1. Turn ignition switch "OFF".
2. Disconnect VDC OFF switch connector M13.
3. Check continuity between VDC OFF switch connector M13 terminal 1 and 2.
   VDC OFF SWITCH CONDITION TABLE



   VDC OFF switch connector	Condition	Continuity
   1 - 2	VDC OFF switch ON	Yes
   	VDC OFF switch OFF	No

   Fig 1: Checking Continuity Between VDC Connector M13 Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : GO TO 2.
2. NG : Replace VDC OFF switch.

1. Turn ignition switch "OFF".
2. Disconnect VDC/TCS/ABS control unit connector E218.
3. Check continuity between VDC OFF switch connector M13 and VDC/TCS/ABS control unit connector E218.
   VDC/TCS/ABS CONTROL UNIT AND VDC OFF SWITCH REFERENCE



   VDC/TCS/ABS control unit	VDC OFF switch	Continuity
   44	2	Yes
   	Ground	No
   Ground	1	Yes

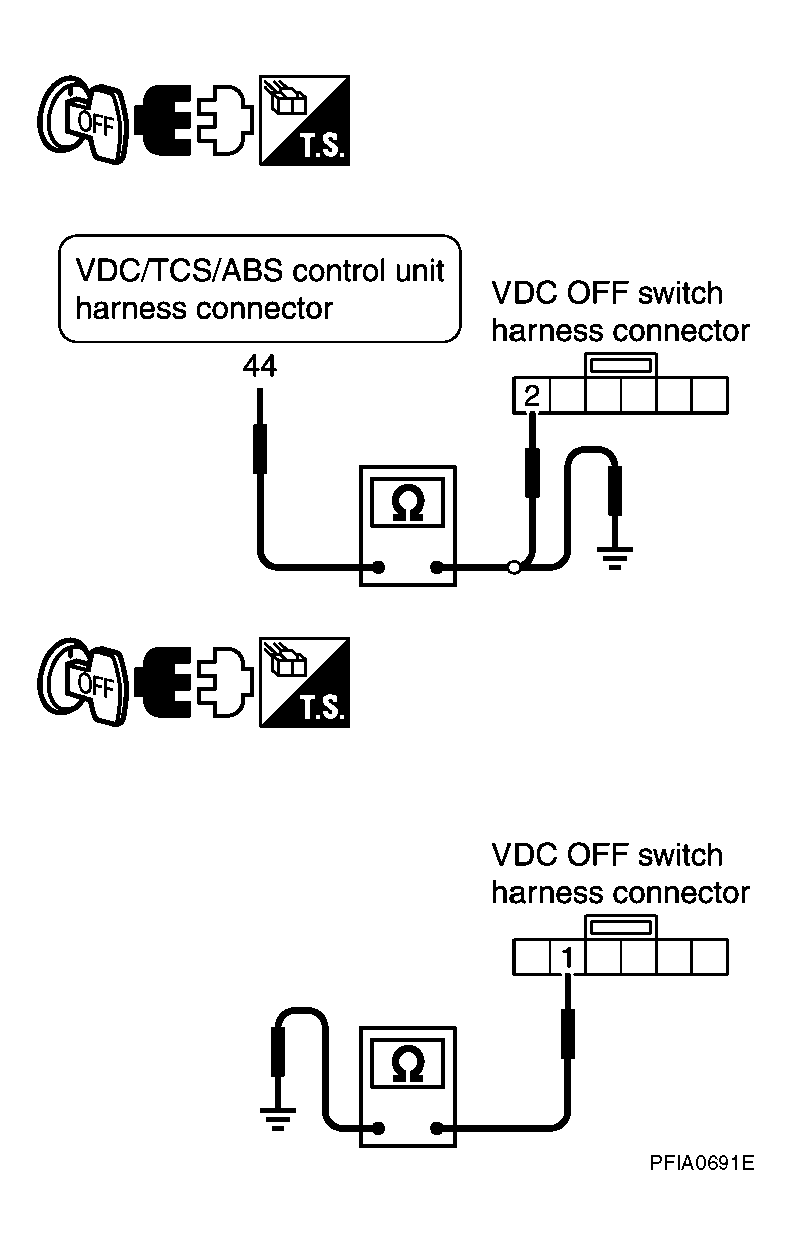

   Fig 2: Checking Continuity Between VDC Off Switch Connector And VDC/TCS/ABS

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : INSPECTION END
2. NG : Repair or replace malfunctioning components.
