Q45
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
VDC/TCS/Abs
>>
System Description
>>
Hydraulic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Hydraulic Circuit Diagram

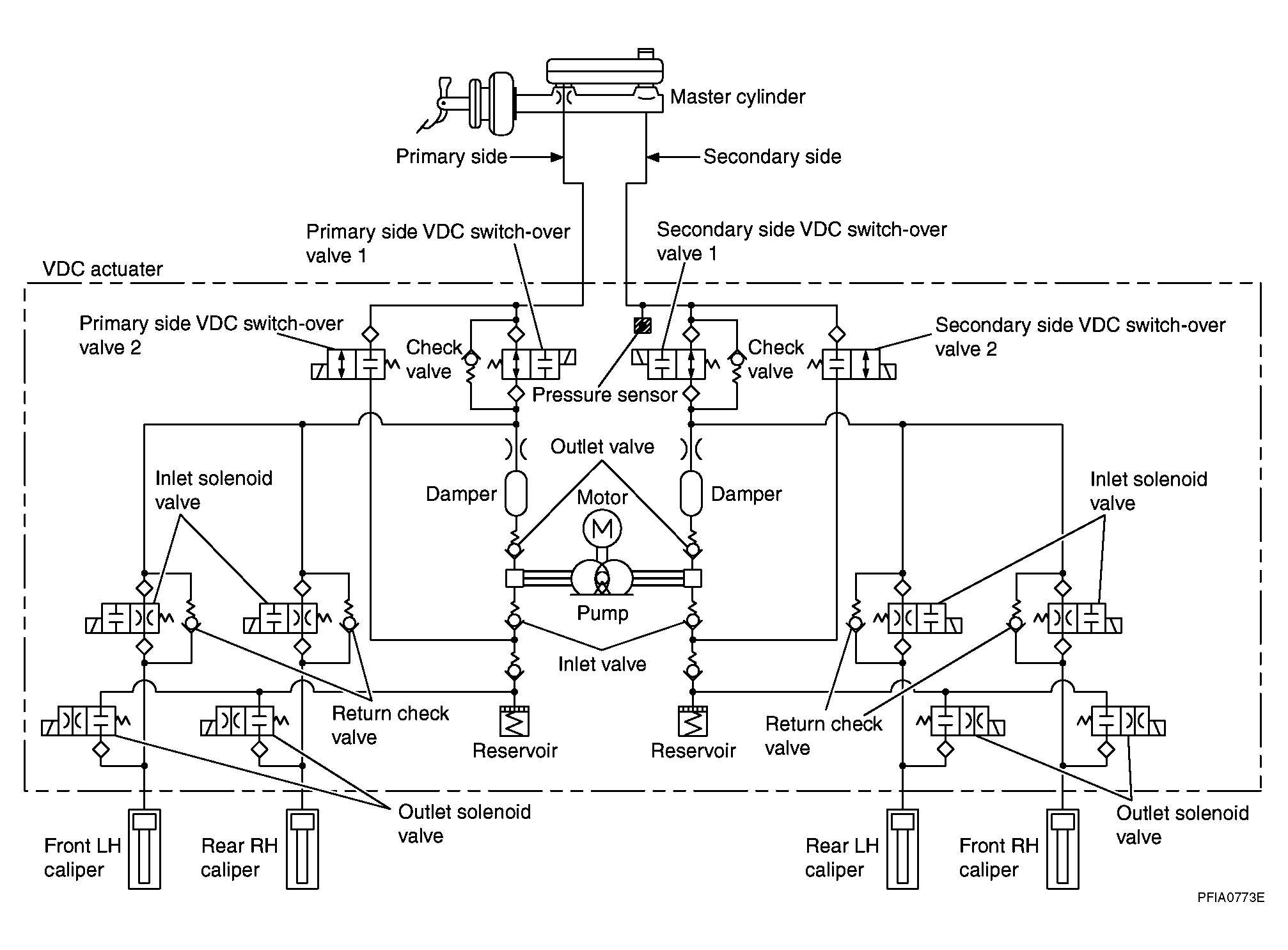

Fig 1: VDC/TCS/ABS Hydraulic Circuit Diagram
