Disassembly and Assembly: Components

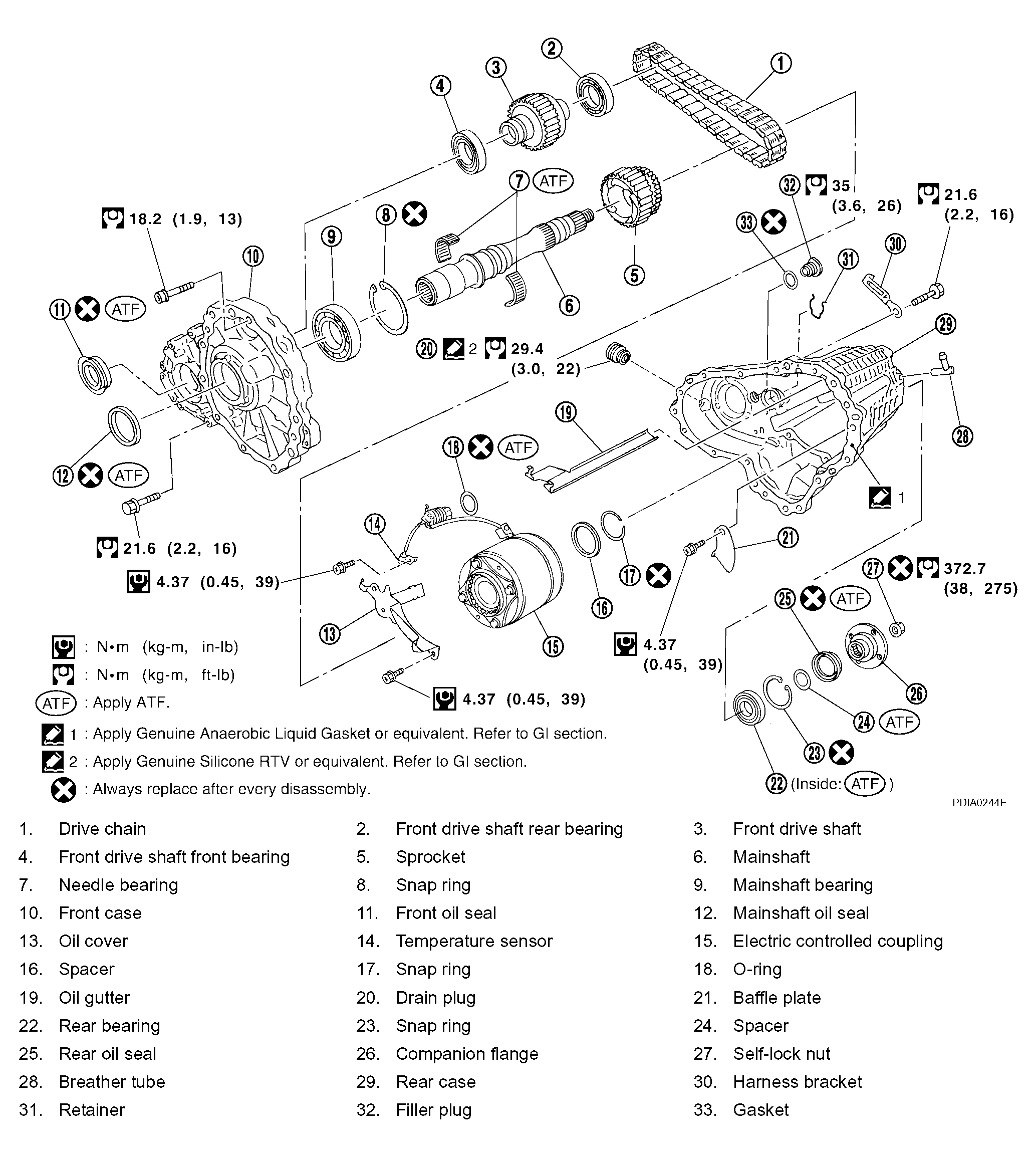

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
G04144531Courtesy of NISSAN MOTOR CO., U.S.A.
