Shift Mechanism: Construction

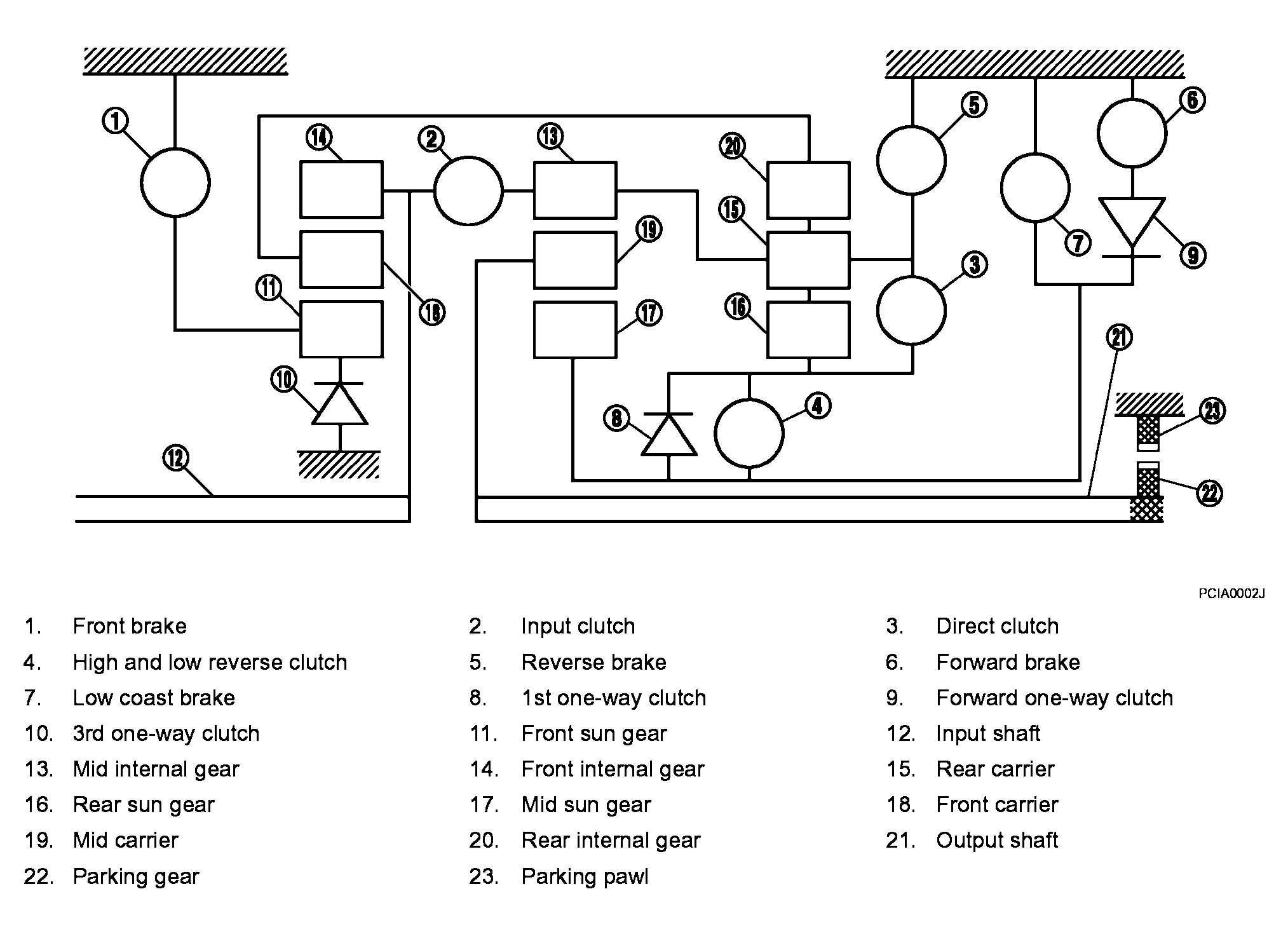

Fig 1: Shift Mechanism Construction Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
