Hood Lock Control Inspection

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If the hood lock cable is bent or deformed, replace it.
  1. Remove the front grille. Refer to "FRONT GRILLE ".
  2. Make sure the secondary latch is properly engaged with the secondary striker with hood's own weight by dropping it from approx. 200 mm (7.87 in) height.
  3. While operating the hood opener, carefully make sure the front end of the hood is raised by approx. 20 mm (0.79 in). Also make sure the hood opener returns to the original position.

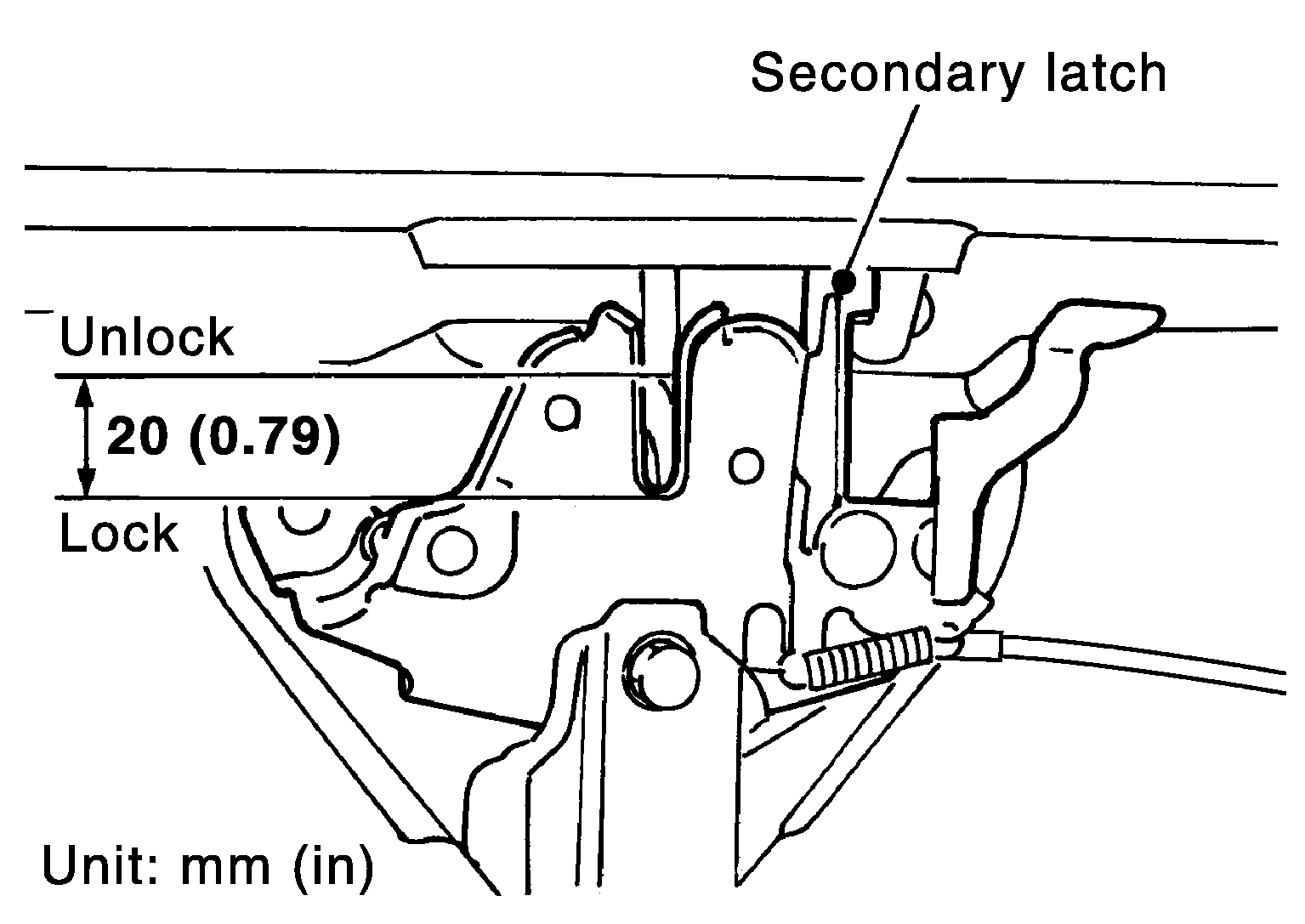

    Fig 1: Identifying Secondary Striker
    G04134955Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check the hood lock lubrication condition. If necessary, apply "body grease" to the points shown in the figure.
  5. Install the front grille. Refer to "FRONT GRILLE ".

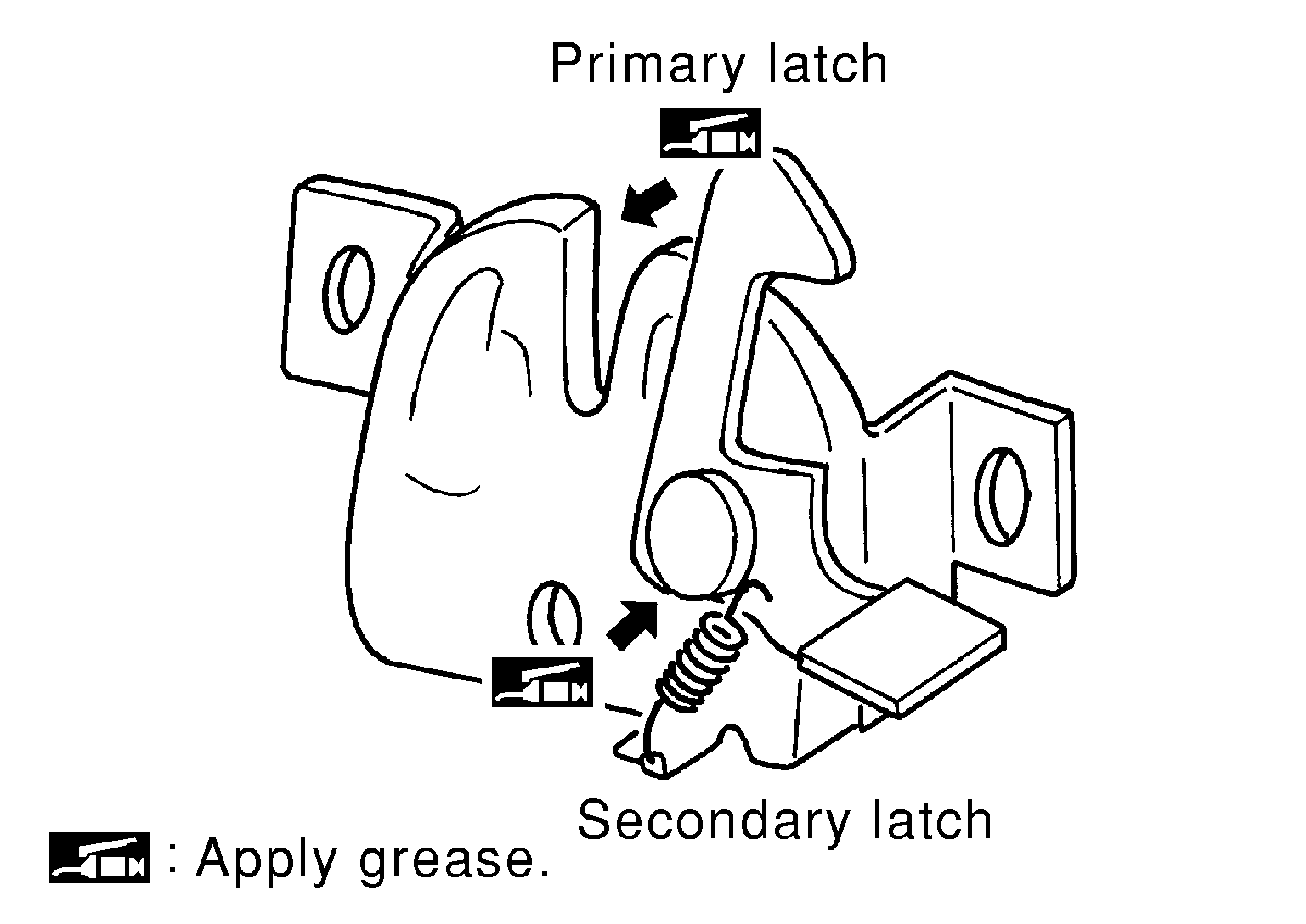

    Fig 2: Identifying Hood Lock Lubrication Condition
    G04134956Courtesy of NISSAN MOTOR CO., U.S.A.
