System - Engine Mechanical & Other

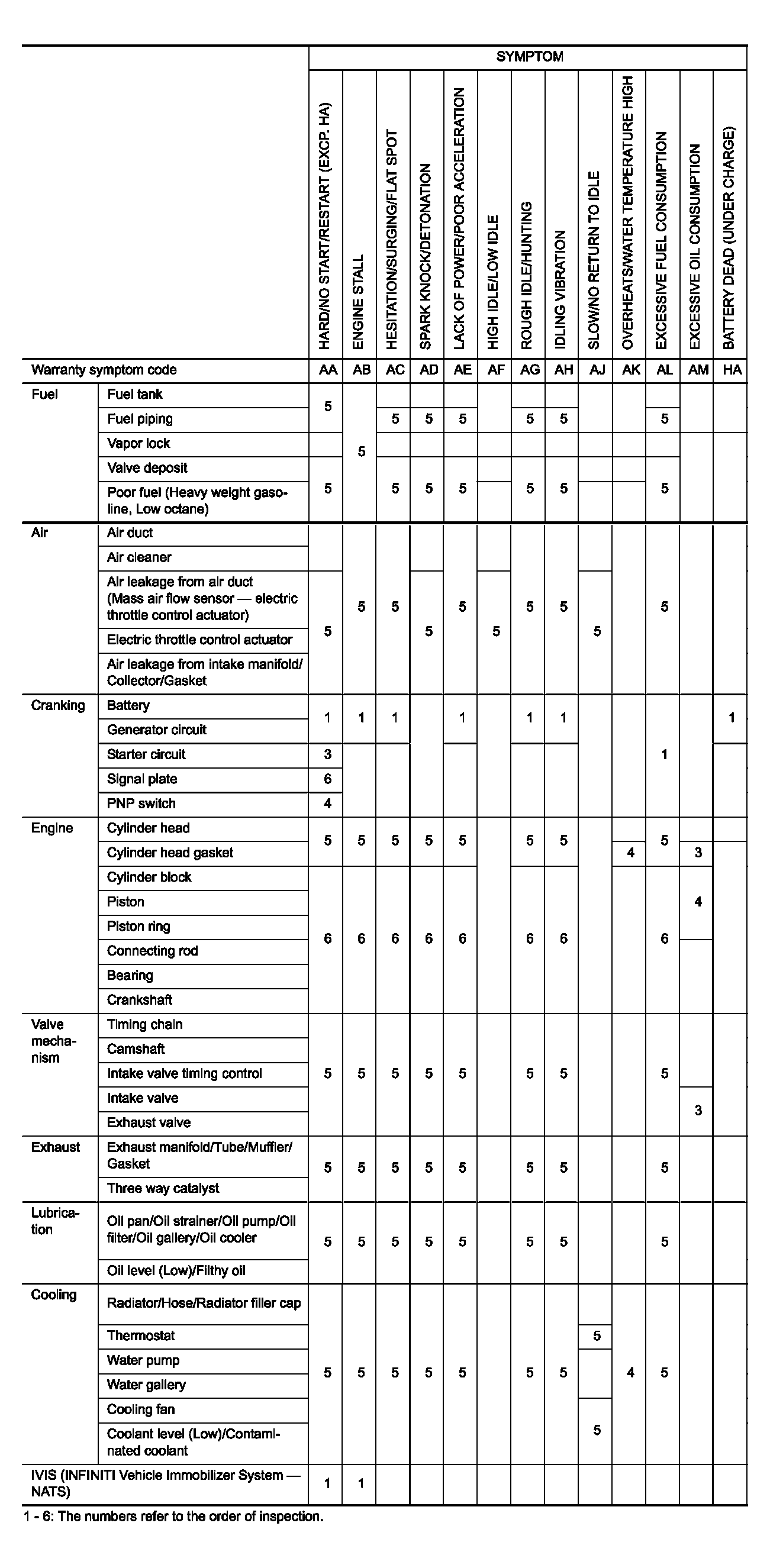

Fig 1: Symptom Matrix Chart - Engine Mechanical & Other (1 Of 2)
G04138237Courtesy of NISSAN MOTOR CO., U.S.A.
