Exhaust System: Components

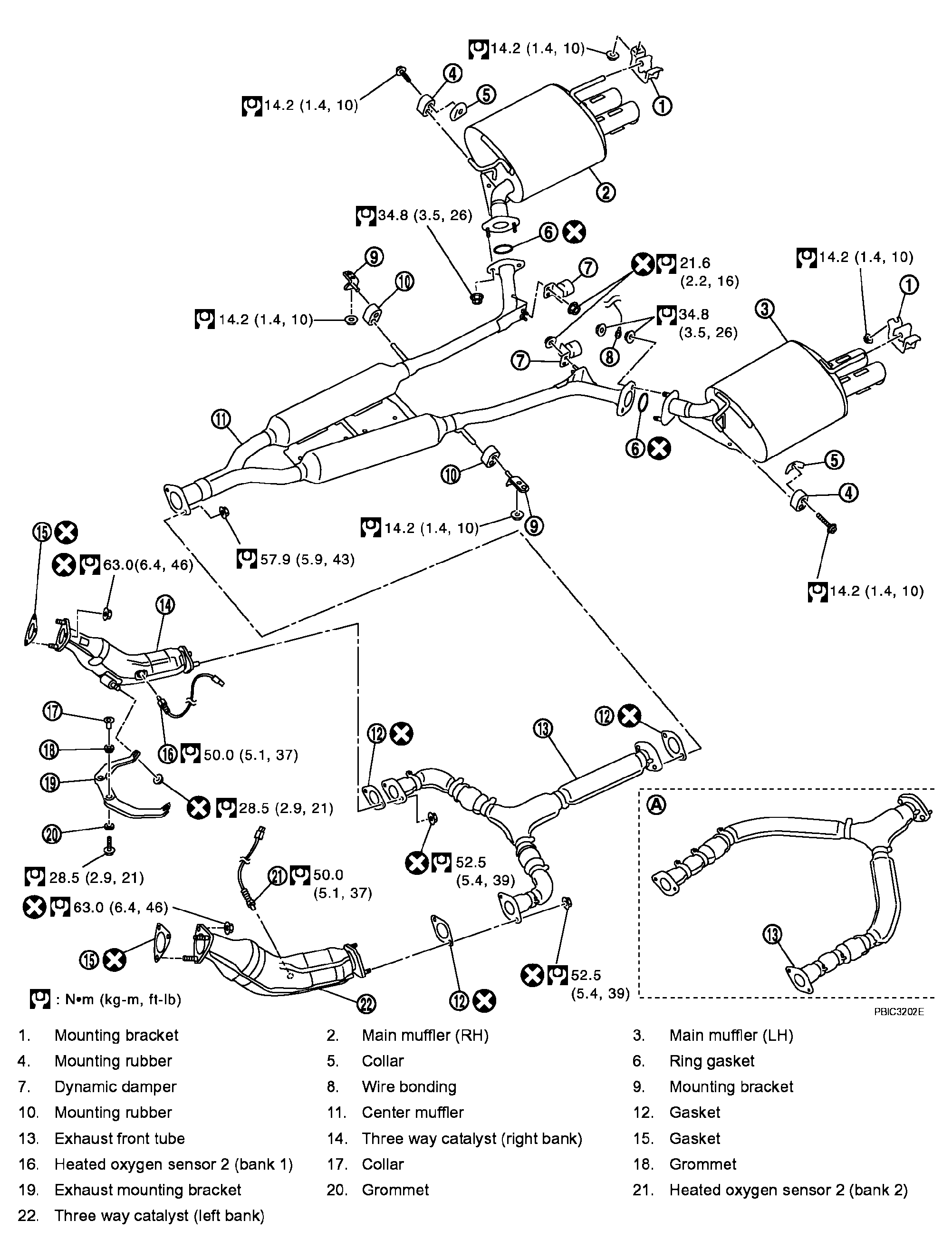

Fig 1: Exploded View Of Exhaust System Components With Torque Specifications (VQ35DE)
G04139062Courtesy of NISSAN MOTOR CO., U.S.A.

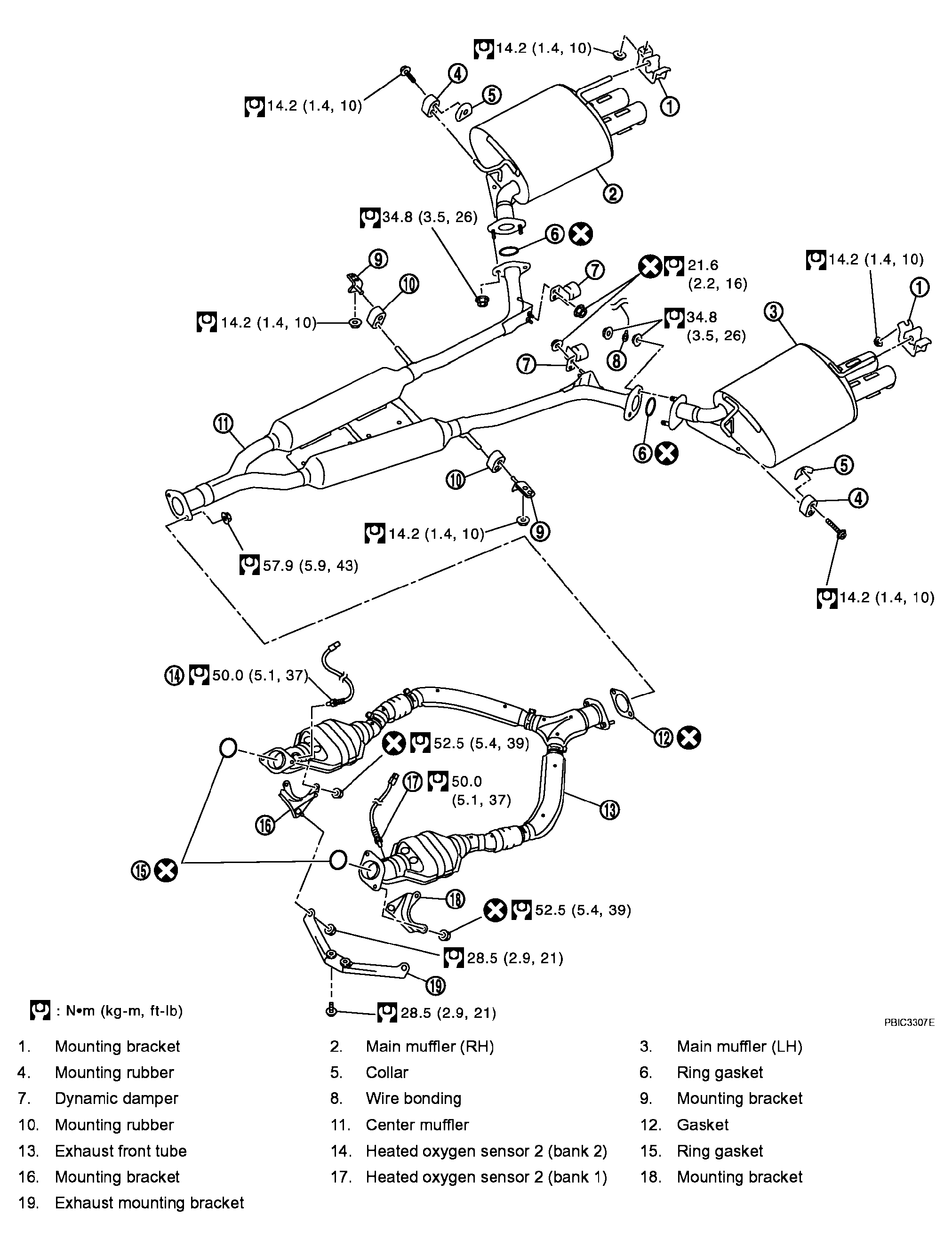

Fig 1: Exploded View Of Exhaust System Components With Torque Specifications (VK45DE)
G04139064Courtesy of NISSAN MOTOR CO., U.S.A.
