Disassembly and Assembly: Components

For GI, go to GENERAL INFORMATION .

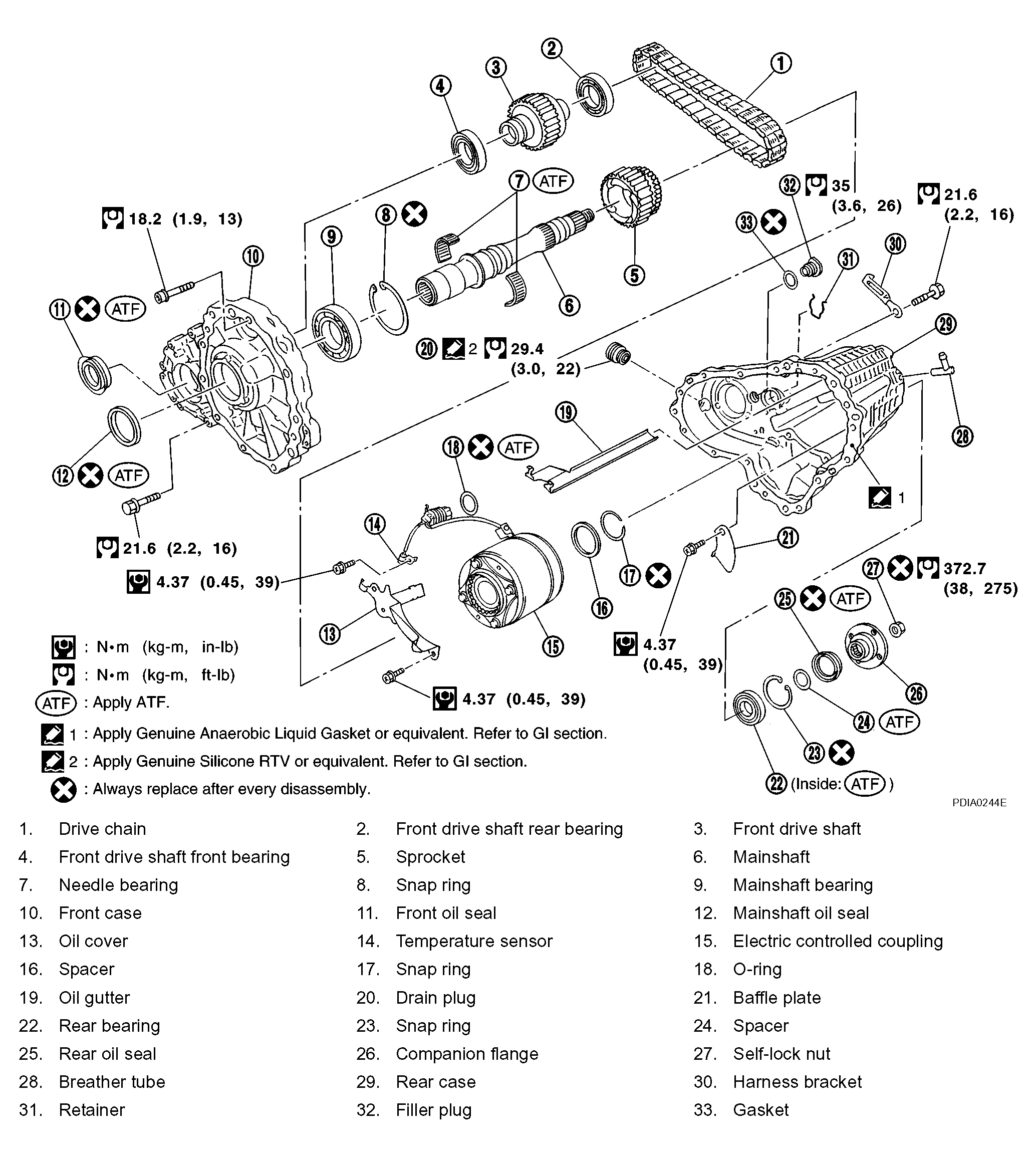

Fig 1: Exploded View Of Transmission Components With Torque Specifications
G04076076Courtesy of NISSAN MOTOR CO., U.S.A.
