Removal and Installation: Removal

  1. Remove the rear seat. Refer to "REMOVAL ".
  2. Remove LATCH (Lower Anchors and Tether for Children) system.

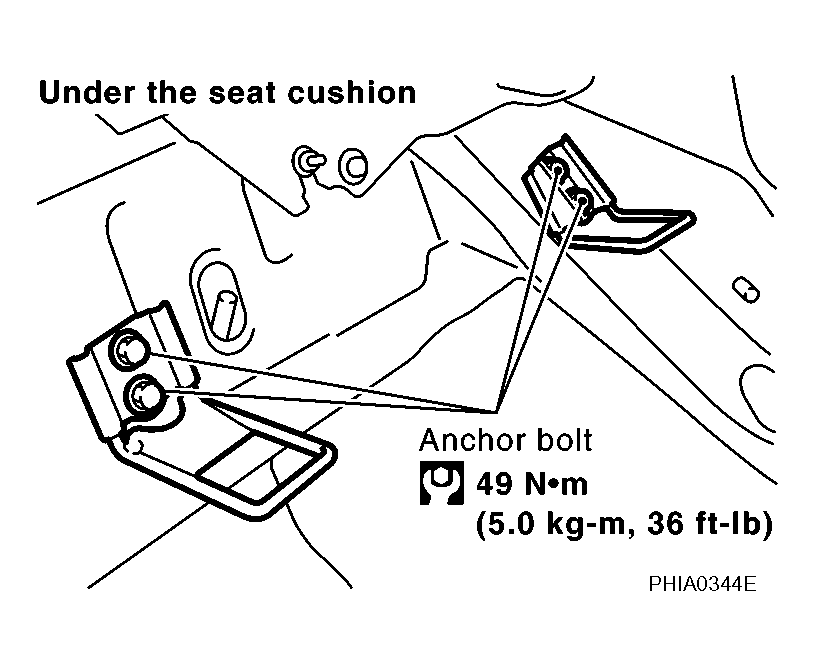

    Fig 1: Rear Seat Latch With Torque Specifications
    G04076821Courtesy of NISSAN MOTOR CO., U.S.A.
