Disassembly and Assembly (VK45DE Models): Notes

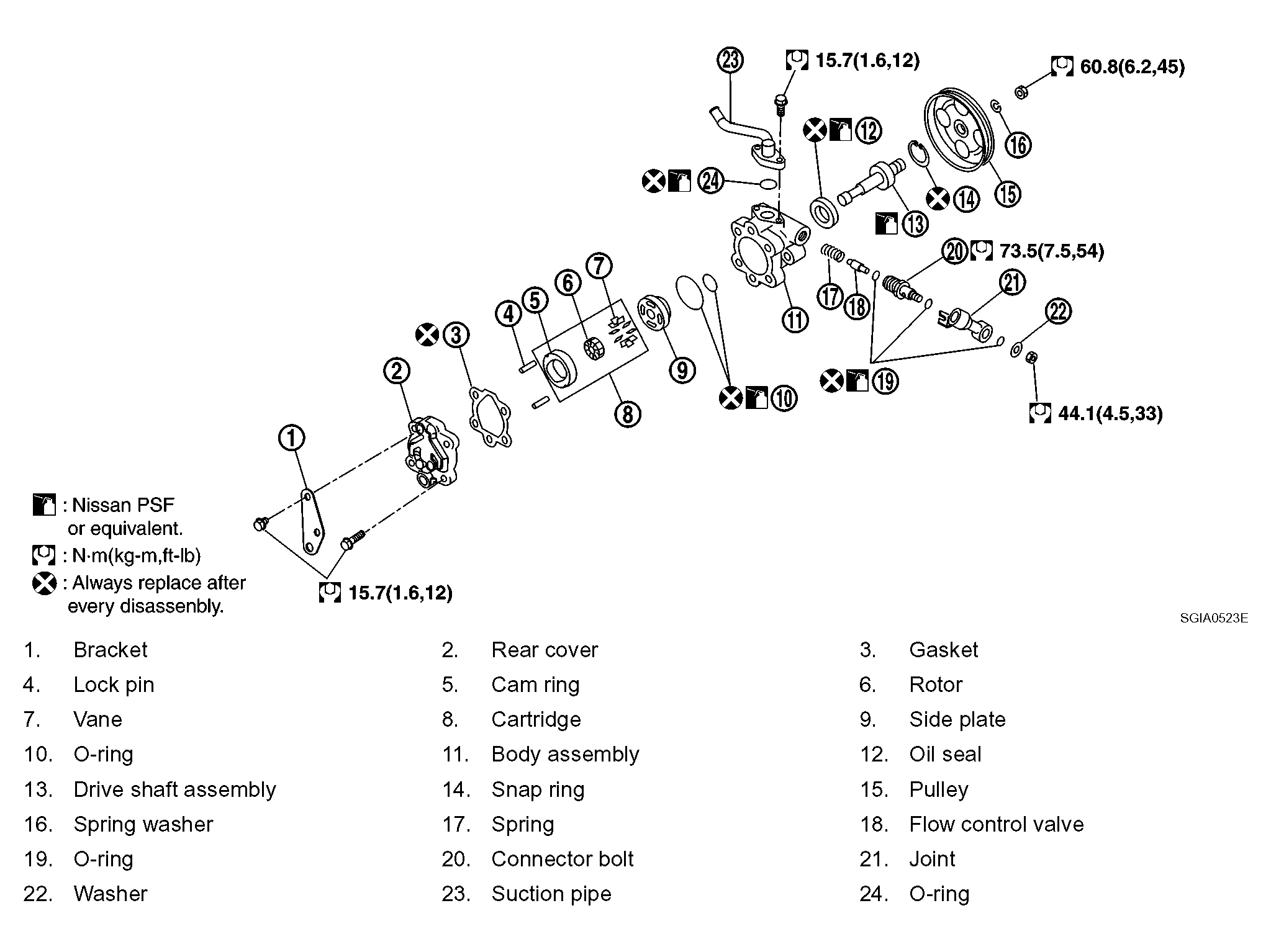

Fig 1: View Of Power Steering Oil Pump With Torque Specifications (VK45DE Models)
G04076795Courtesy of NISSAN MOTOR CO., U.S.A.
