Transfer Control Unit Terminals And Reference Value

Data are reference value and are measured between each terminal and ground.

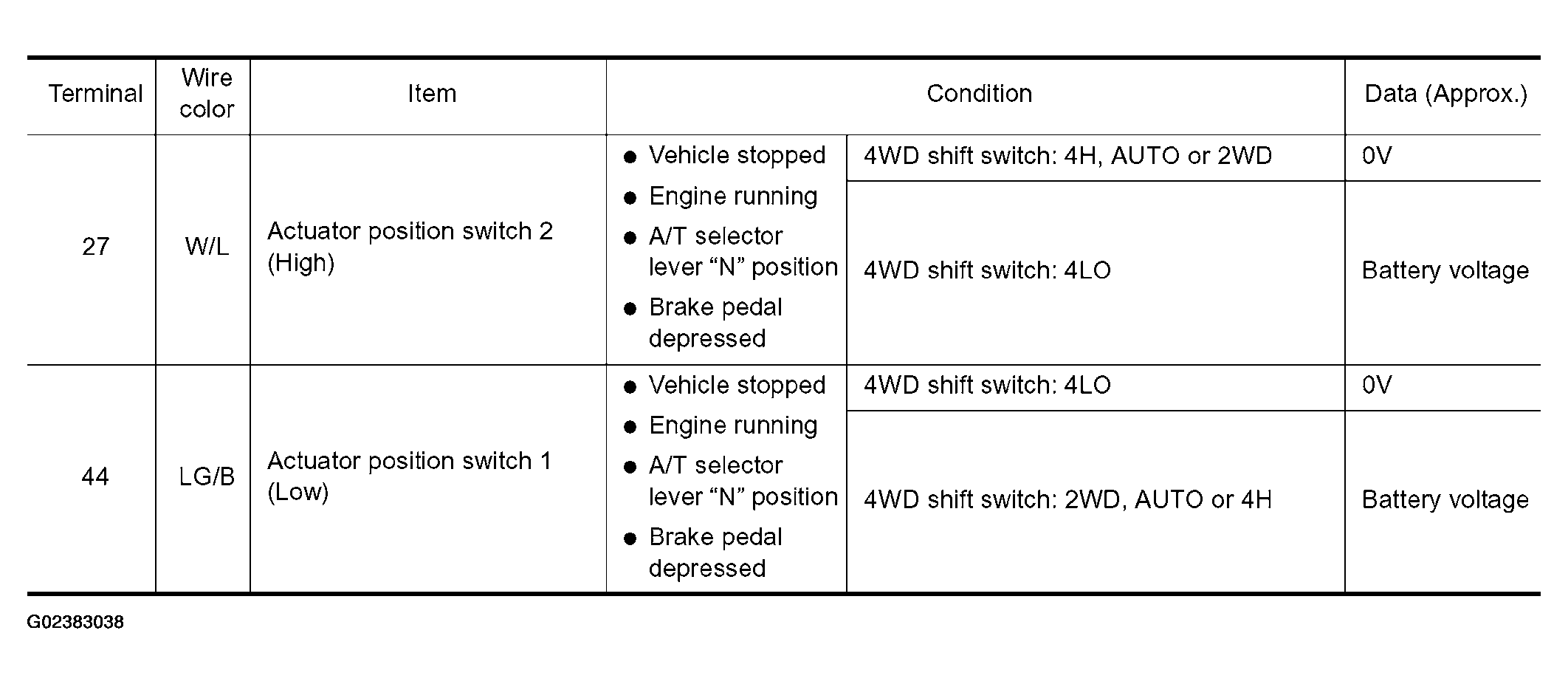

Fig 1: Actuator Position Switch - Transfer Control Unit Terminals And Reference Value

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
