Control System: Notes

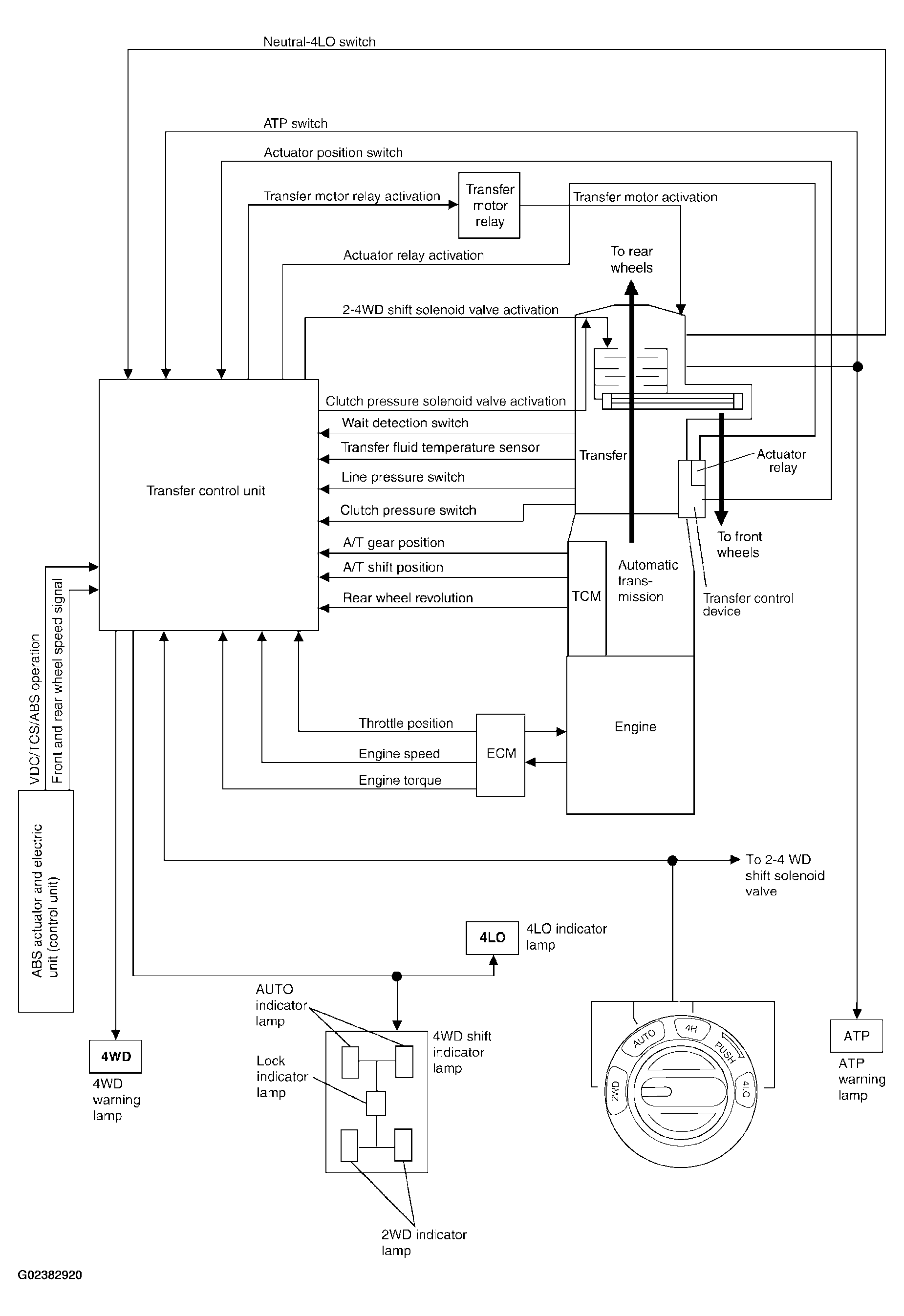

Fig 1: Control System - Description Diagram
G02382920Courtesy of NISSAN MOTOR CO., U.S.A.
