Cross-section View

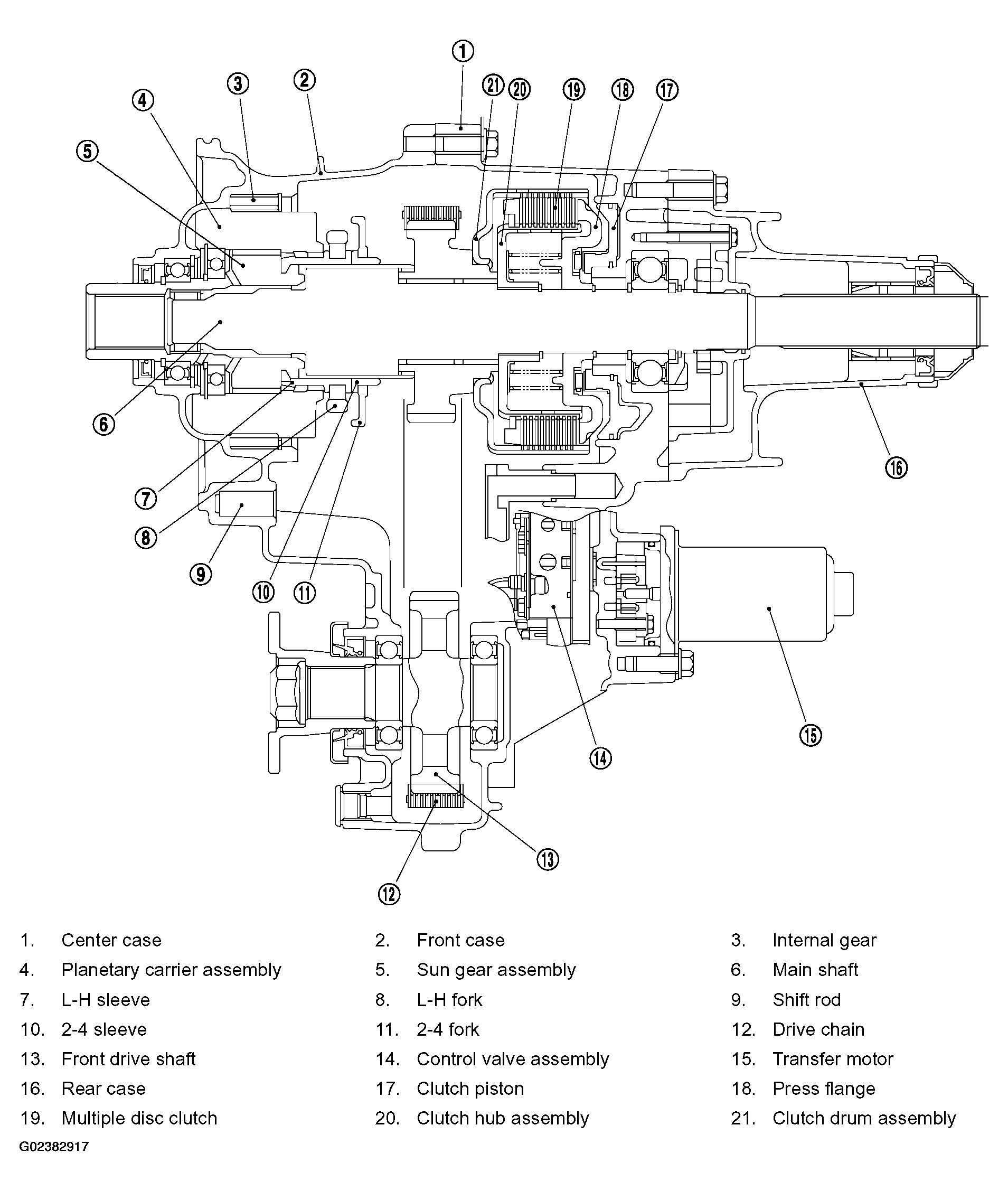

Fig 1: All-Mode 4WD System - Cross-Section View

Courtesy of NISSAN MOTOR CO., U.S.A.
