Control System Outline

The automatic transmission senses vehicle operating conditions through various sensors or signals. It always controls the optimum shift position and reduces shifting and lock-up shocks.

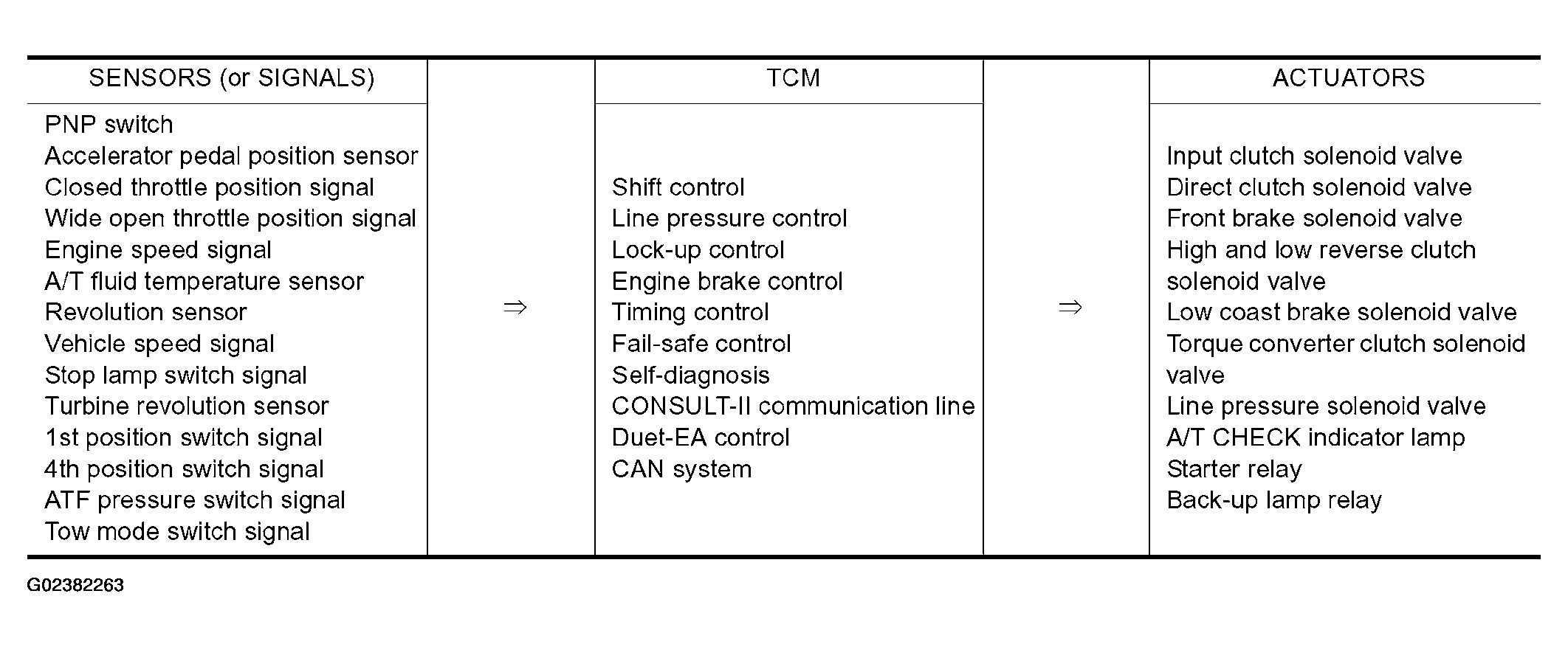

Fig 1: Vehicle Operating Conditions Chart (Through Various Sensors Or Signals)

Courtesy of NISSAN MOTOR CO., U.S.A.
