Steering Outer Socket and Inner Socket

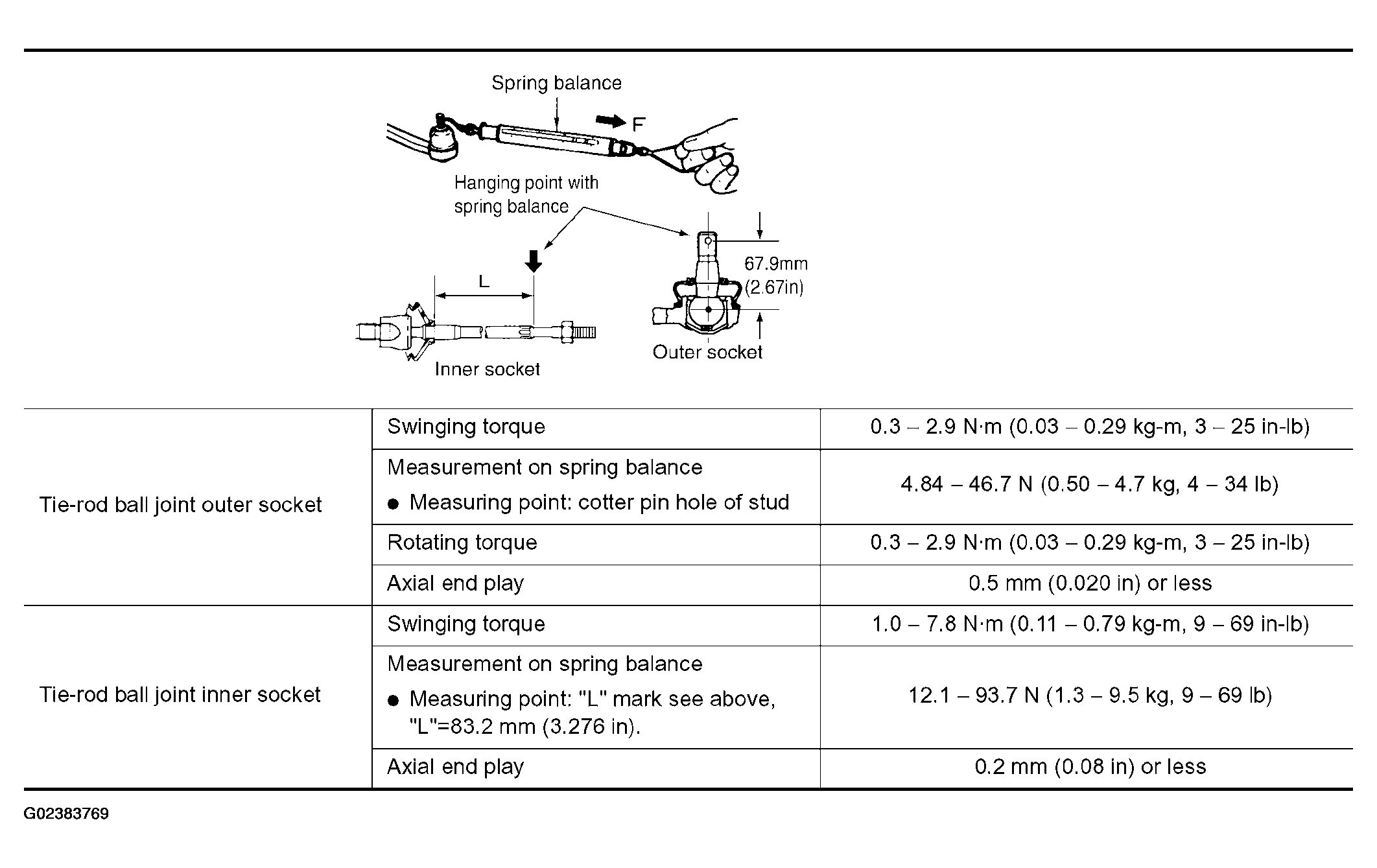

Fig 1: Socket And Ball Joint Specifications
G02383769Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Steering Inner Socket Length
G02383770Courtesy of NISSAN MOTOR CO., U.S.A.
