Stop Lamp Switch

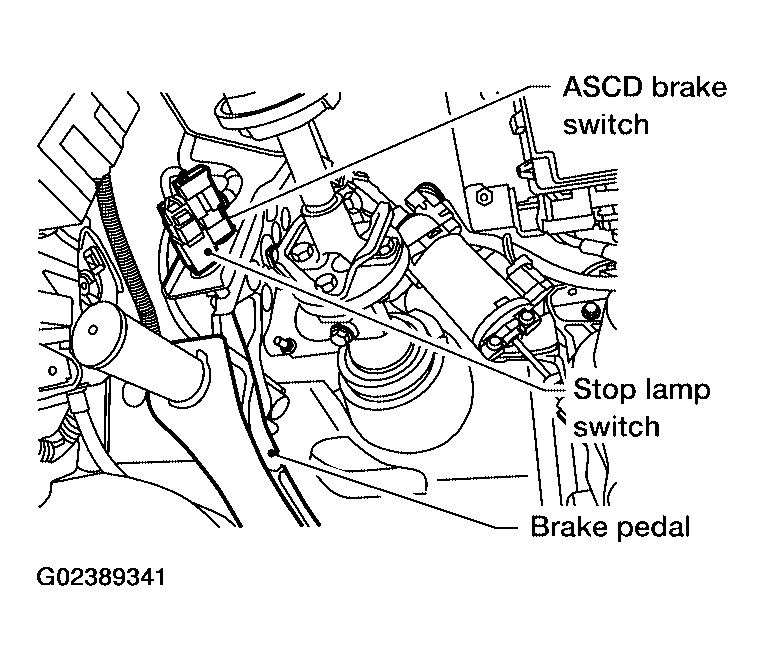

- Disconnect stop lamp switch harness connector.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Check continuity between stop lamp switch terminals 3 and 4 under the following conditions.
BRAKE PEDAL CONDITION - CONTINUITY
| Conditions |
Continuity |
| Brake pedal: Fully released |
Should not exist. |
| Brake pedal: Slightly depressed |
Should exist. |
- If NG, adjust stop lamp switch installation, refer to
"BRAKE PEDAL
", and perform step 2 again.
Courtesy of NISSAN MOTOR CO., U.S.A.
