ICC Steering Switch
- Disconnect combination switch (spiral cable) harness connector M102.

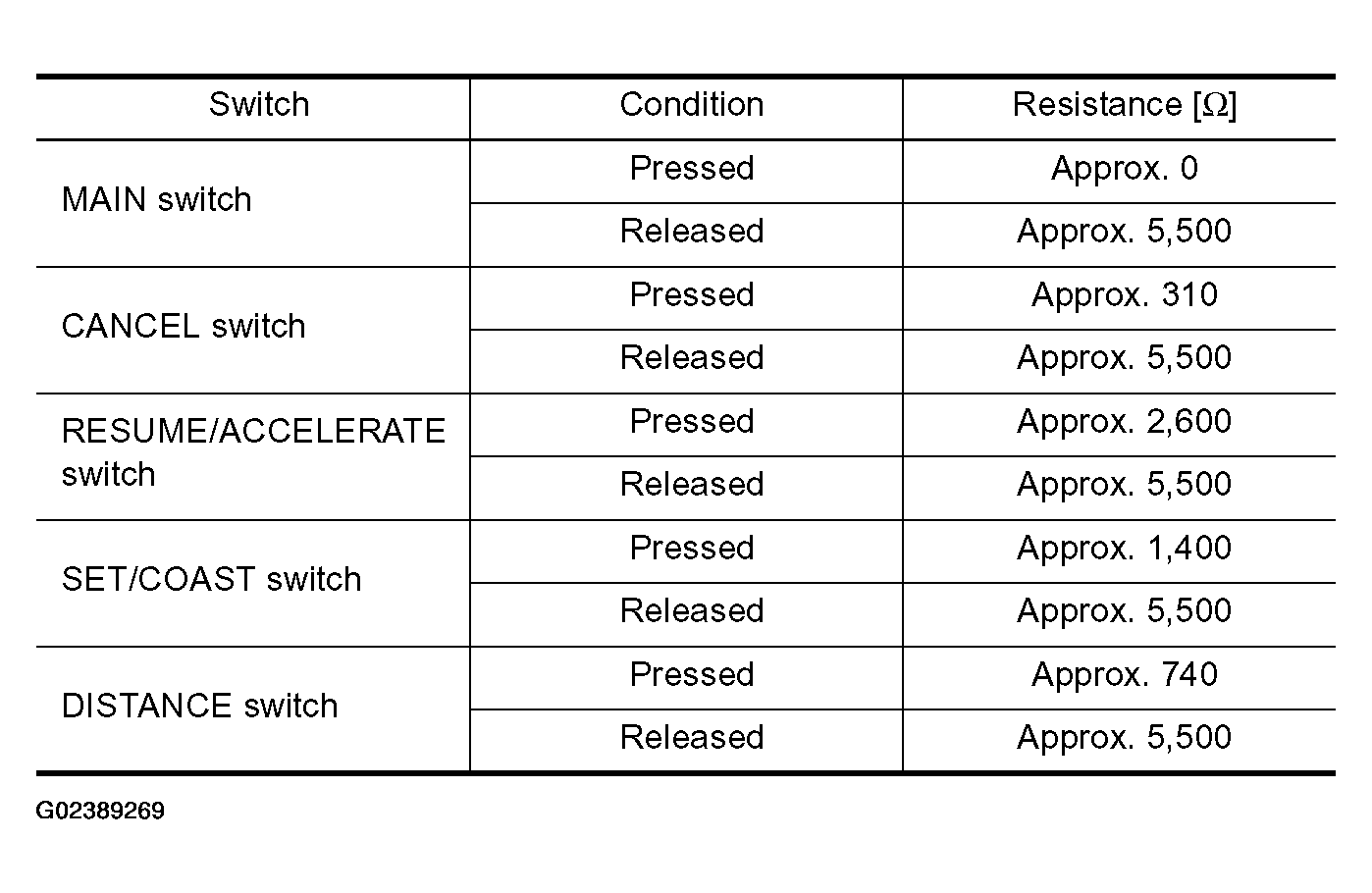

- Check continuity between ICC steering switch terminals 1 and 2 with pushing each switch.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace ICC steering switch.
