Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

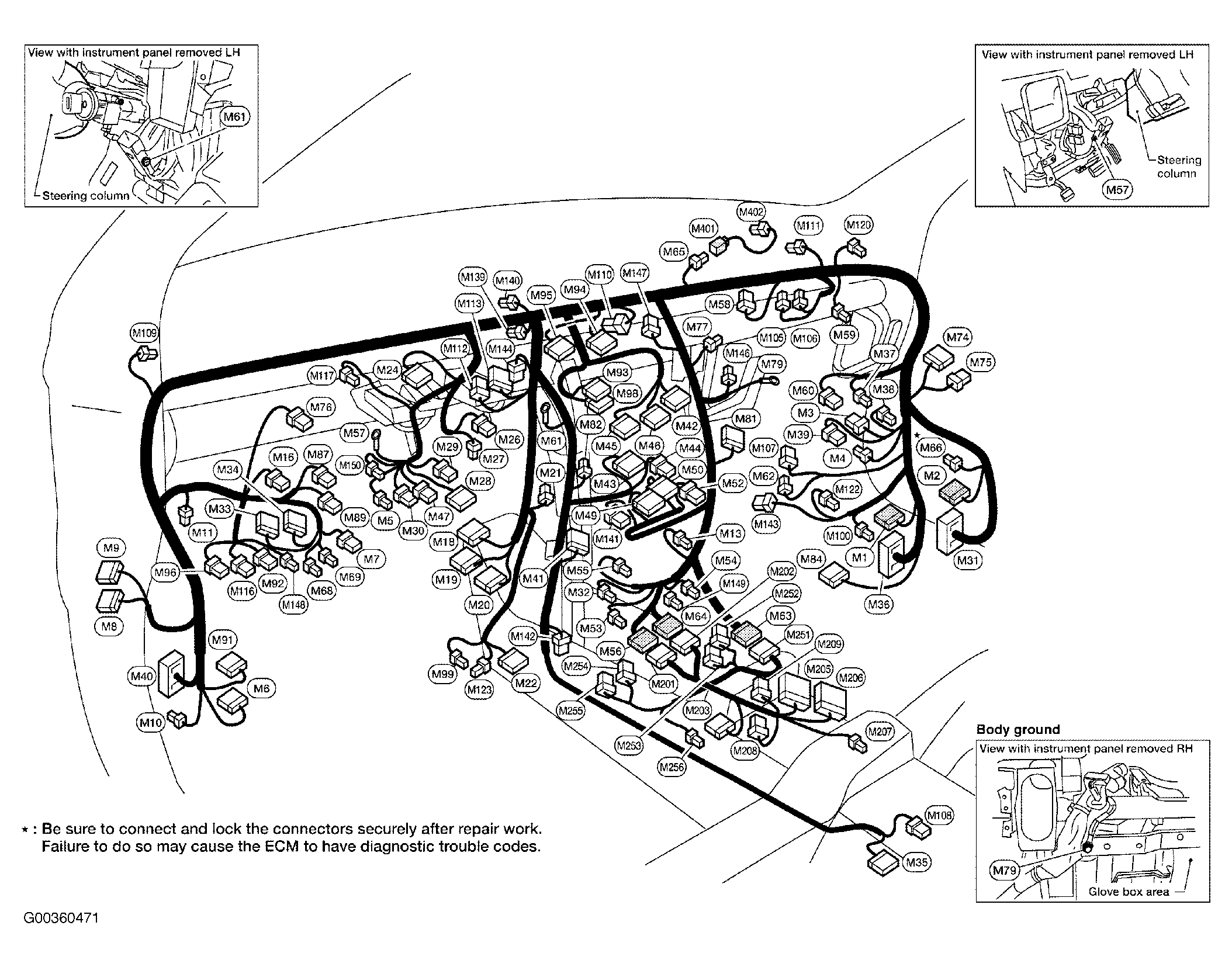

Circuit Breaker No. 2 (M82) Behind center of dash. See Figure .
Fuse Block (J/B) Right side of dash. See Figure .

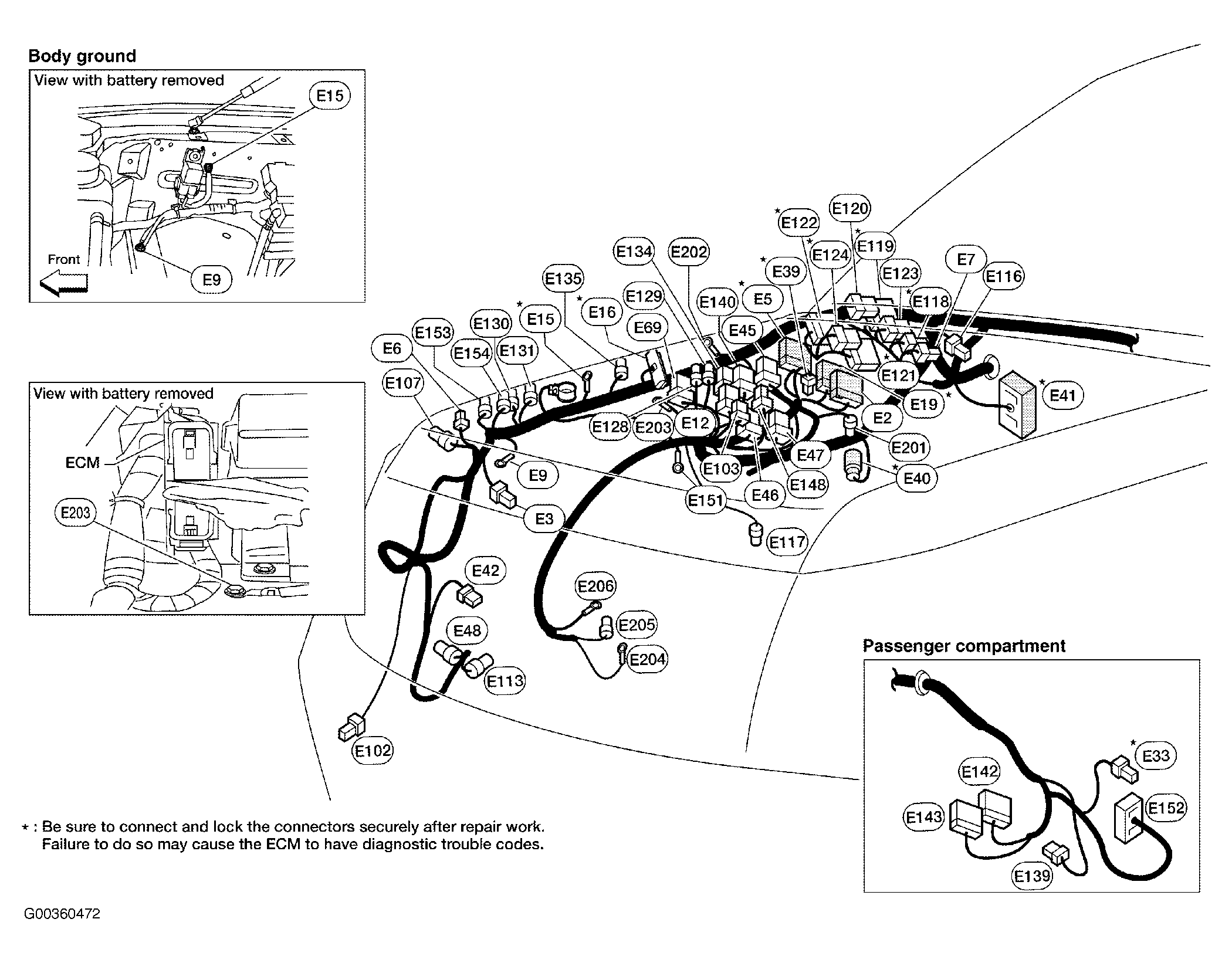

Fuse & Fusible Link Box Right rear of engine compartment.Figure .
Fuse & Relay Box Right rear corner of engine compartment. See Figure .
Fusible Link Box (Battery) (E128) Right side of engine compartment. See Figure .
IPDM E/R (Intelligent Power Distribution Module Engine Room) Right rear corner of engine compartment. See Figure .
