Voice Activated Control System: Schematic

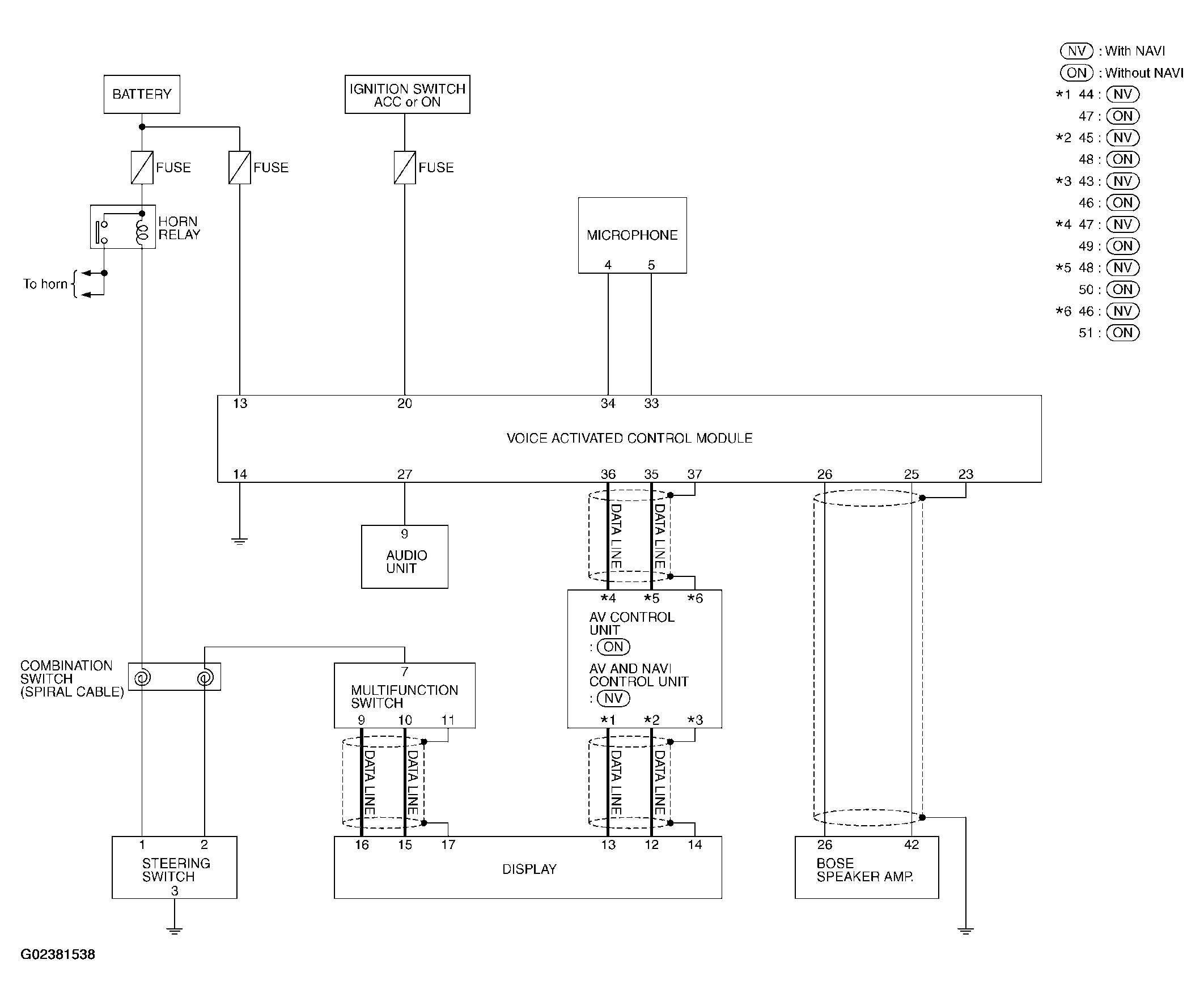

Fig 1: Voice Activated Control System Schematic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
