Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Driver Information System
>>
Vehicle Information And Integrated Switch System / Without Navigation System
>>
Terminals and Reference Value for Display
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Terminals and Reference Value for Display

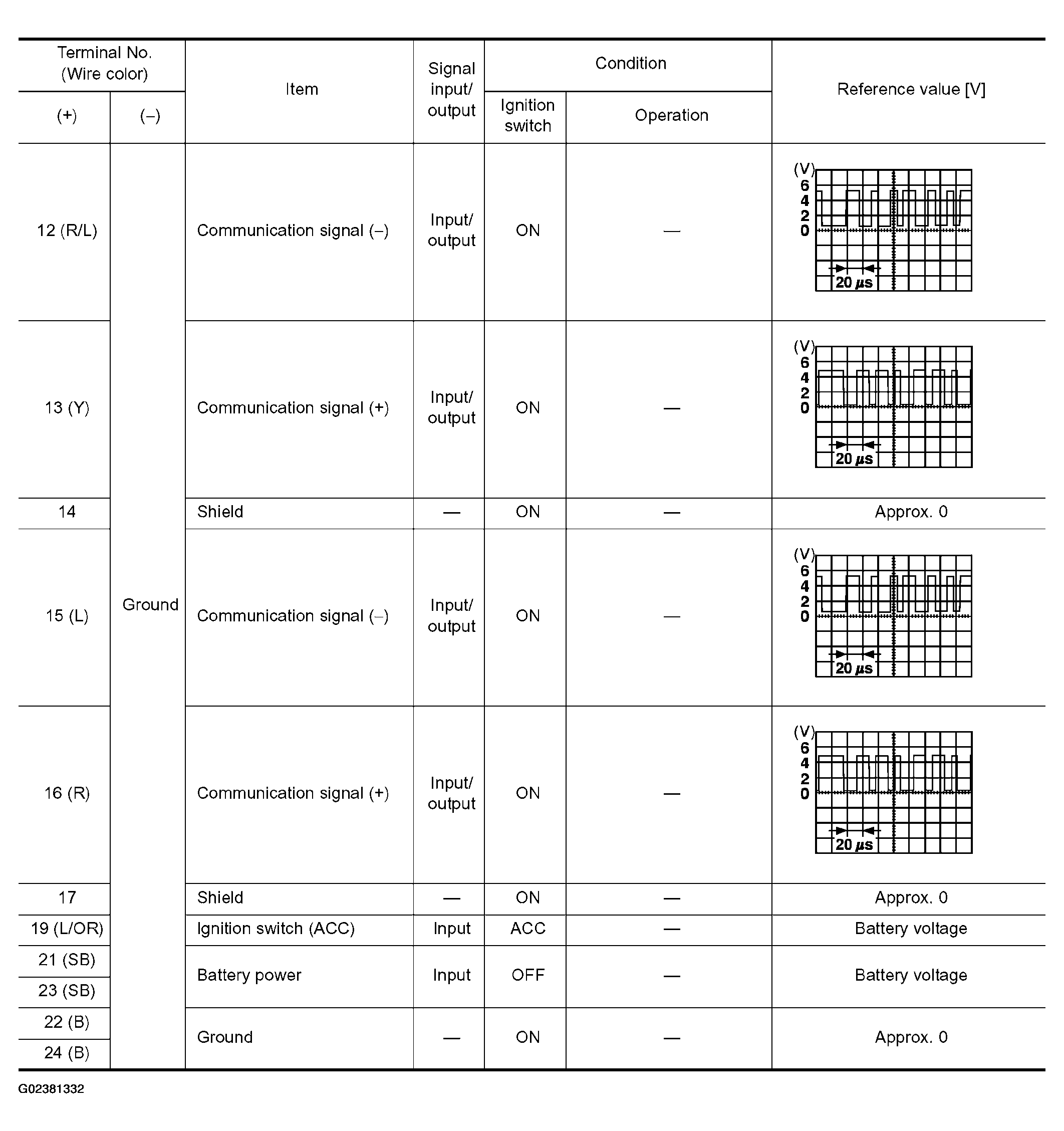

Fig 1: Identifying Terminals And Reference Value Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

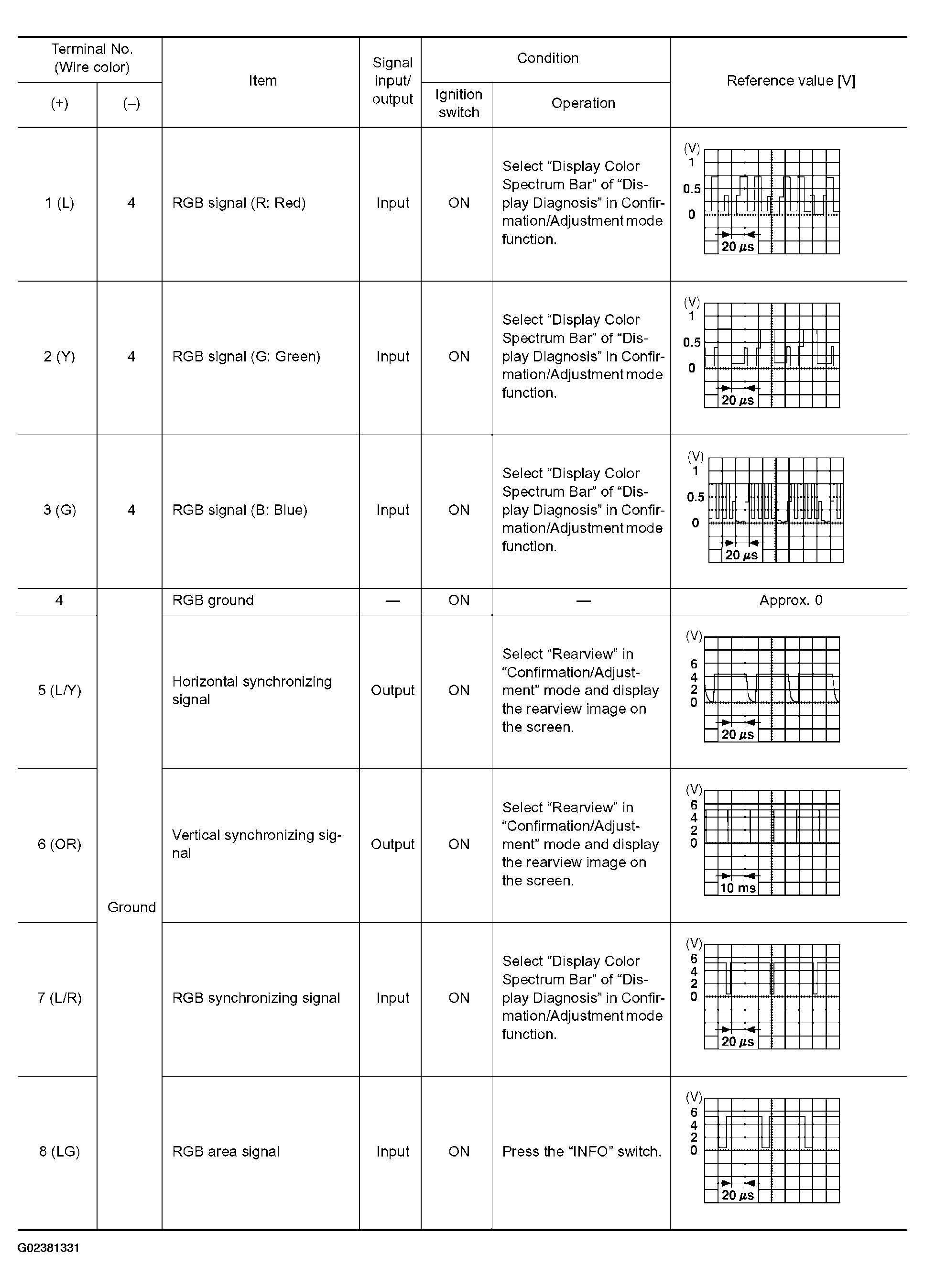

Fig 2: Identifying Terminals And Reference Value Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
