Disassembly and Assembly for Multifunction Switch: Notes

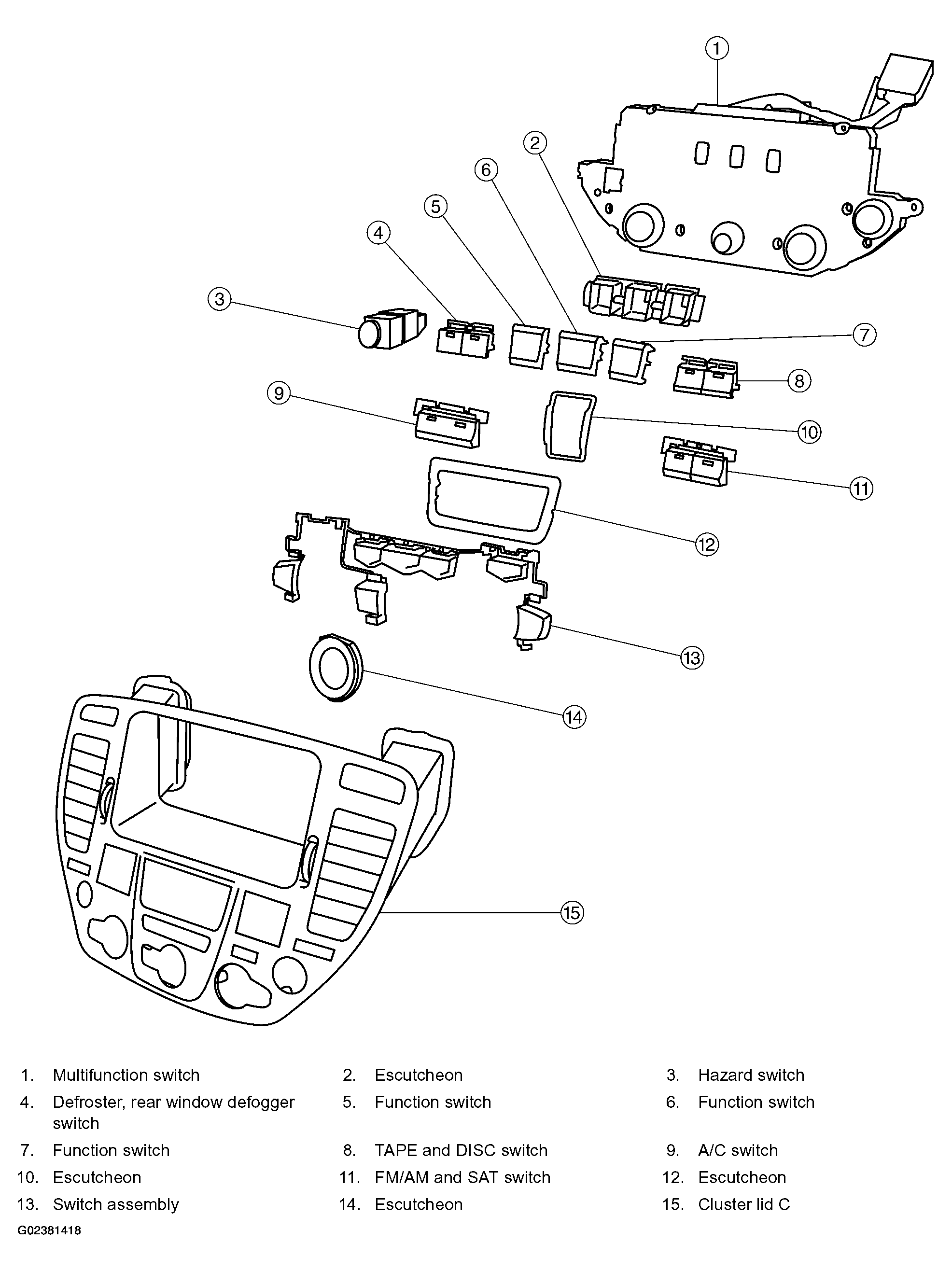

Fig 1: Identifying Multifunction Switch
G02381418Courtesy of NISSAN MOTOR CO., U.S.A.
