ODO/Trip Meter

• The combination meter processes the vehicle speed signal from VDC/TCS/ABS control unit with CAN communication line and the memory signals from the meter memory circuit. Then the mileage is displayed.
• Operating the odo/trip meter switch allows switching the mode in the following order.

How to Change The Display For Odo/trip Meter

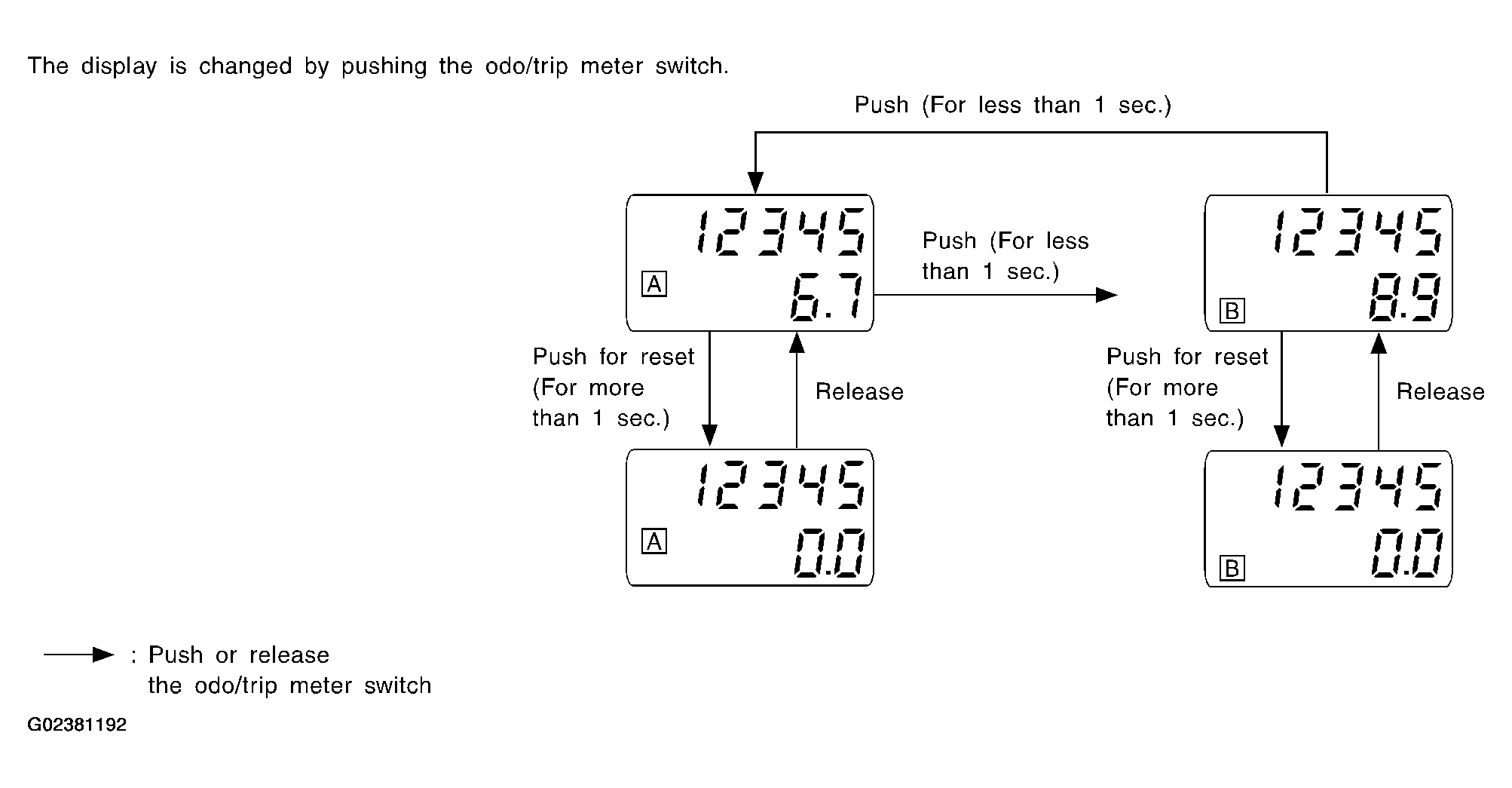

Fig 1: Display Odo/Trip Meter

Courtesy of NISSAN MOTOR CO., U.S.A.

• The odo/trip meter display switching and trip display resetting can be identified by the time from pressing the odo/trip meter switch to releasing it.
• When resetting with trip A displayed, only trip A display is reset. (The same way for trip B.)
