Terminals and Reference Value for Driver Door Control Unit

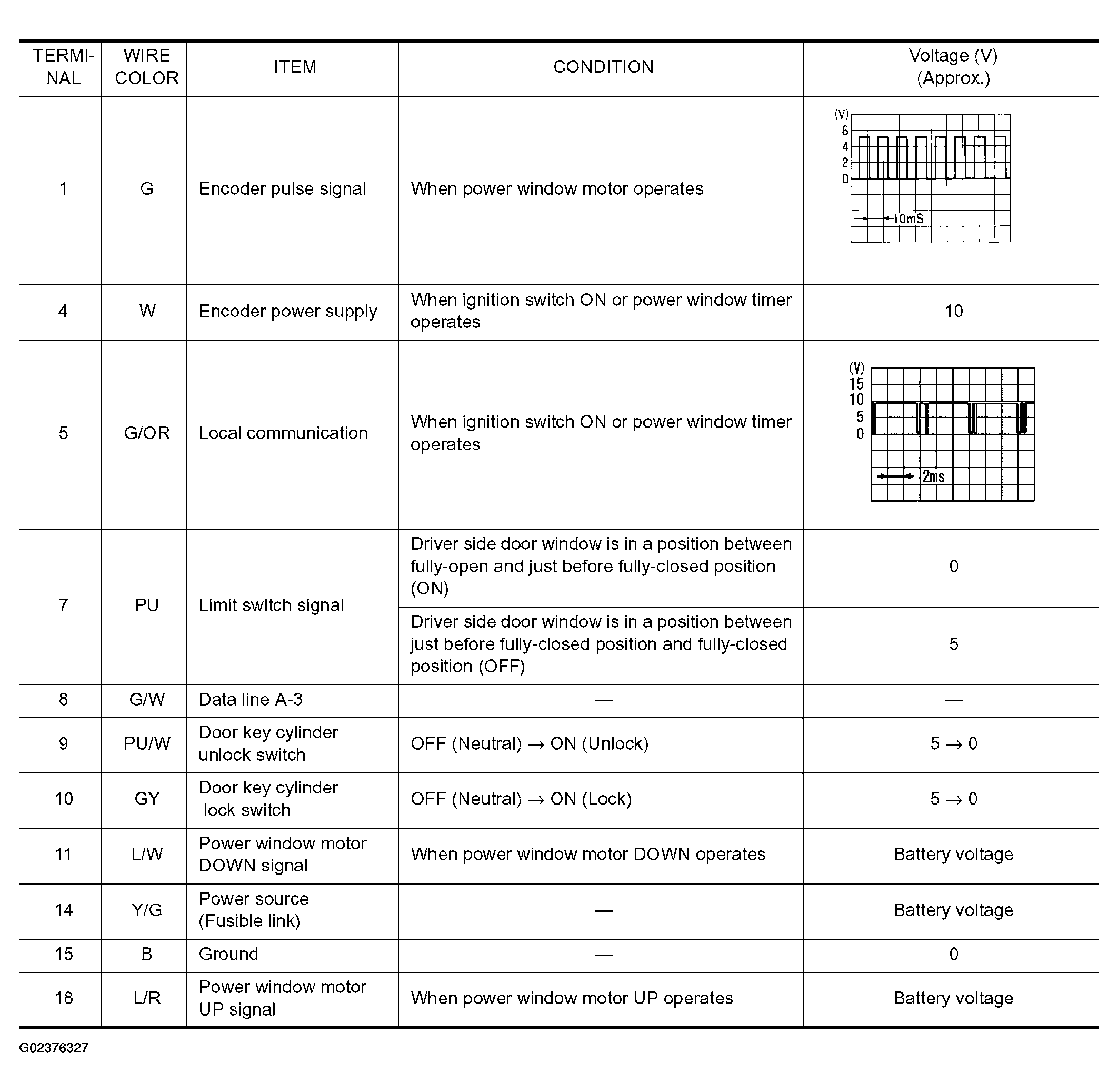

Fig 1: Driver Door Control Unit And Terminals Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
