Terminals and Reference Value For Auto Trunk Control Unit

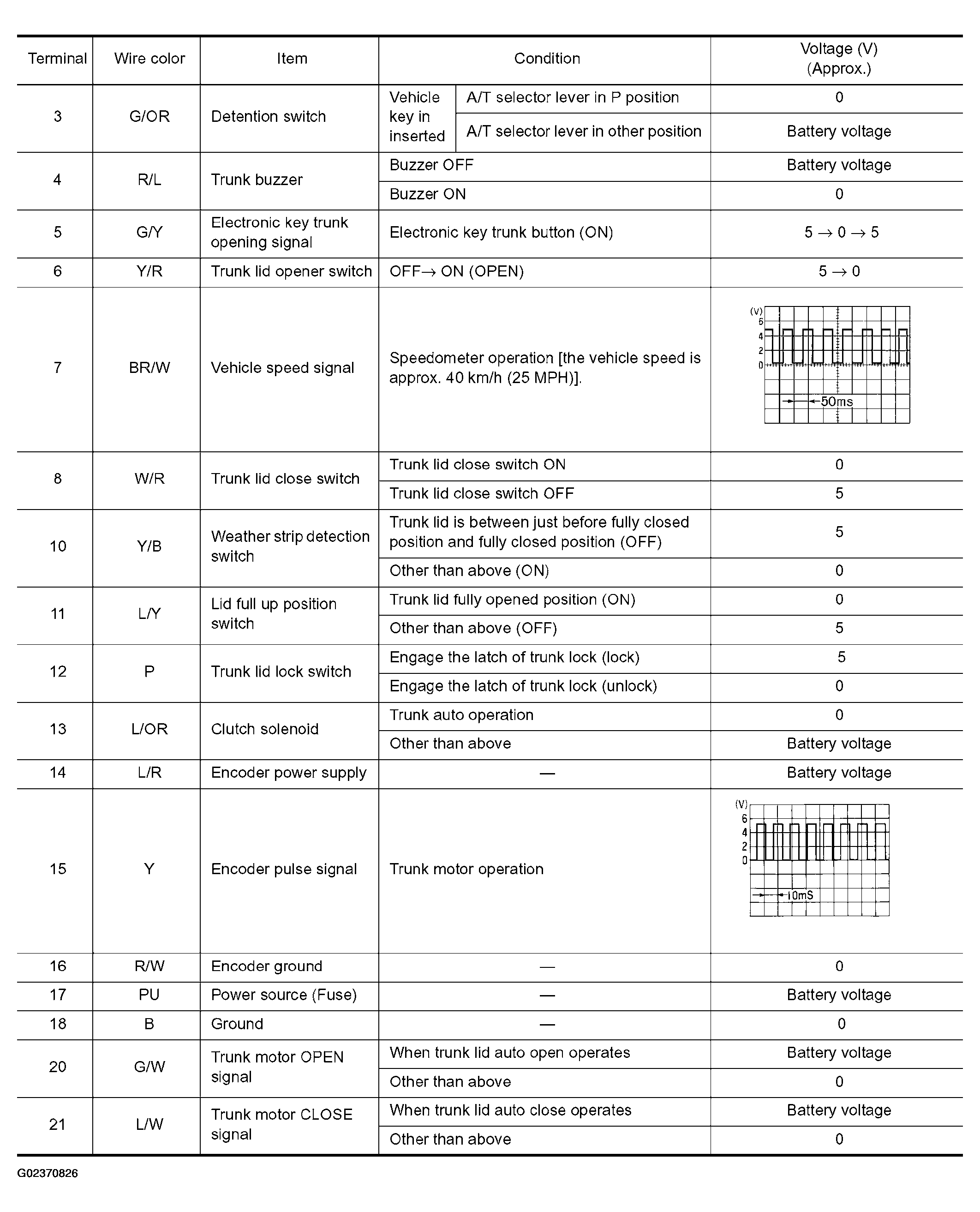

Fig 1: Auto Trunk Control Unit Terminals And Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
