Section 7 (Engine Control System - Coupe)
>>
Trouble Diagnosis
>>
CONSULT-II Function (ENGINE)
>>
Active Test Mode
>>
Test Item
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Test Item
WARNING:
This page is about a different variant/trim than selected.

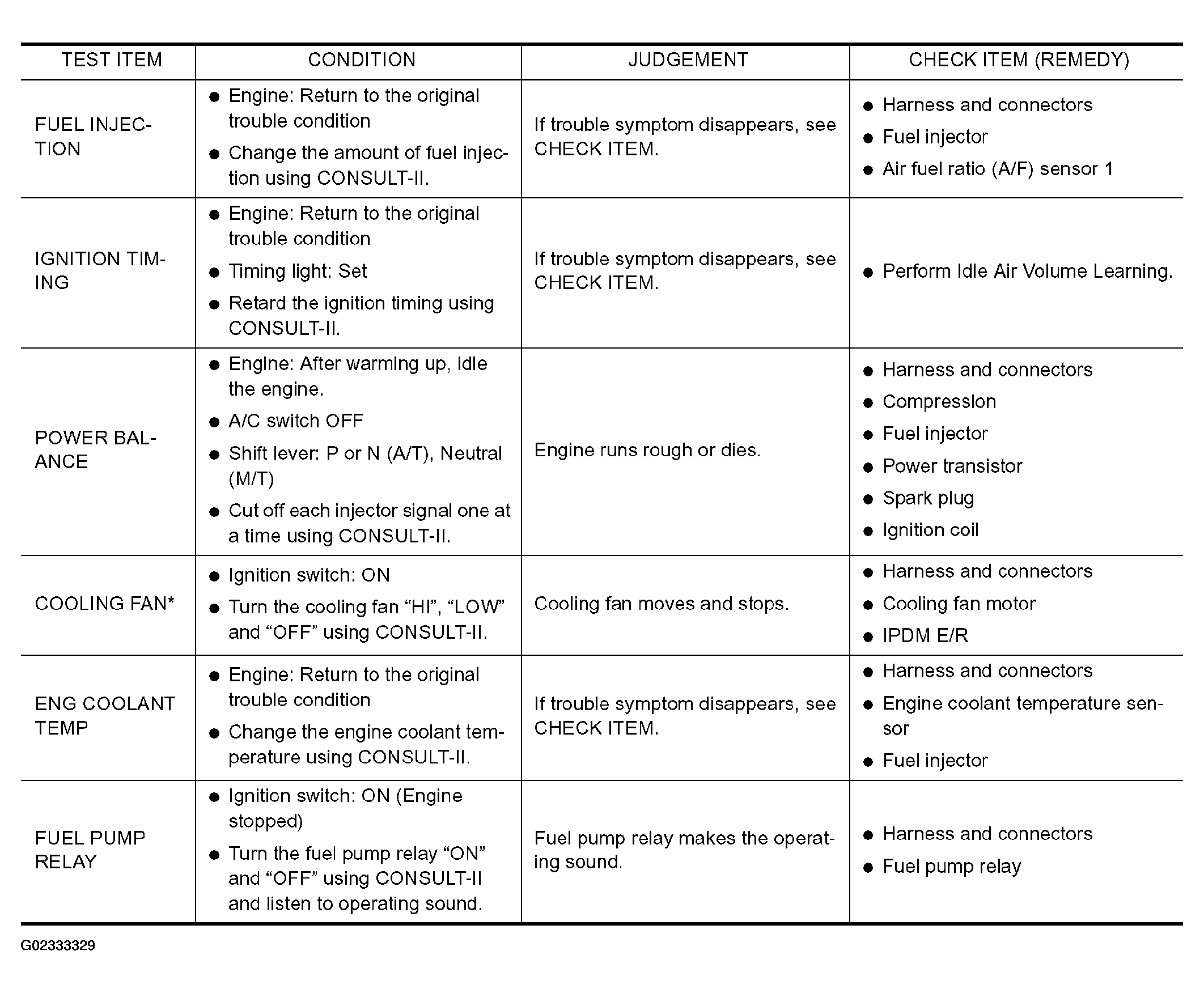

Fig 1: Active Test Mode Test Item Chart - (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

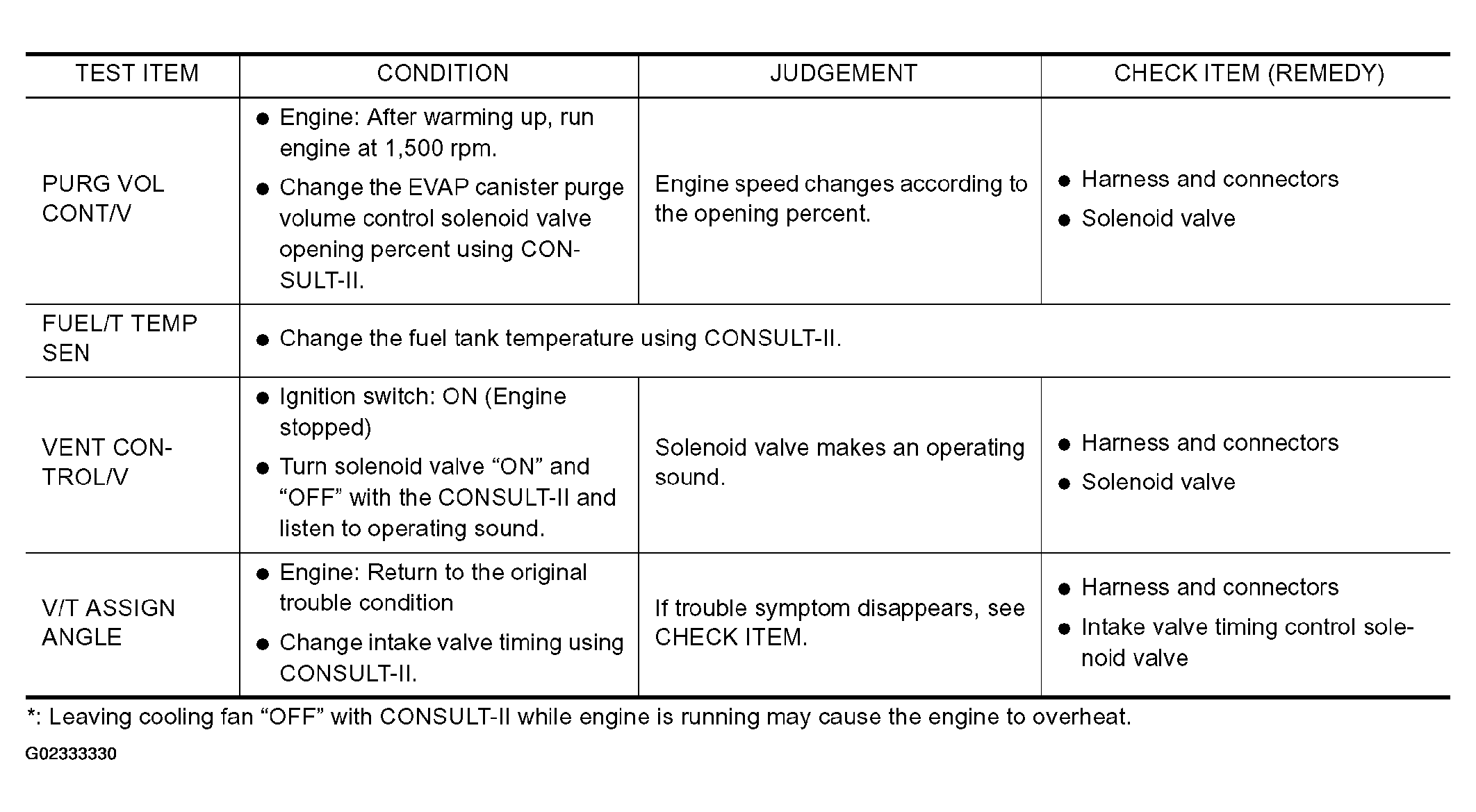

Fig 2: Active Test Mode Test Item Chart - (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
