Engine Control System - Sedan
>>
Trouble Diagnosis
>>
Trouble Diagnosis Introduction
>>
Work Flow
>>
Overall Sequence
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Overall Sequence

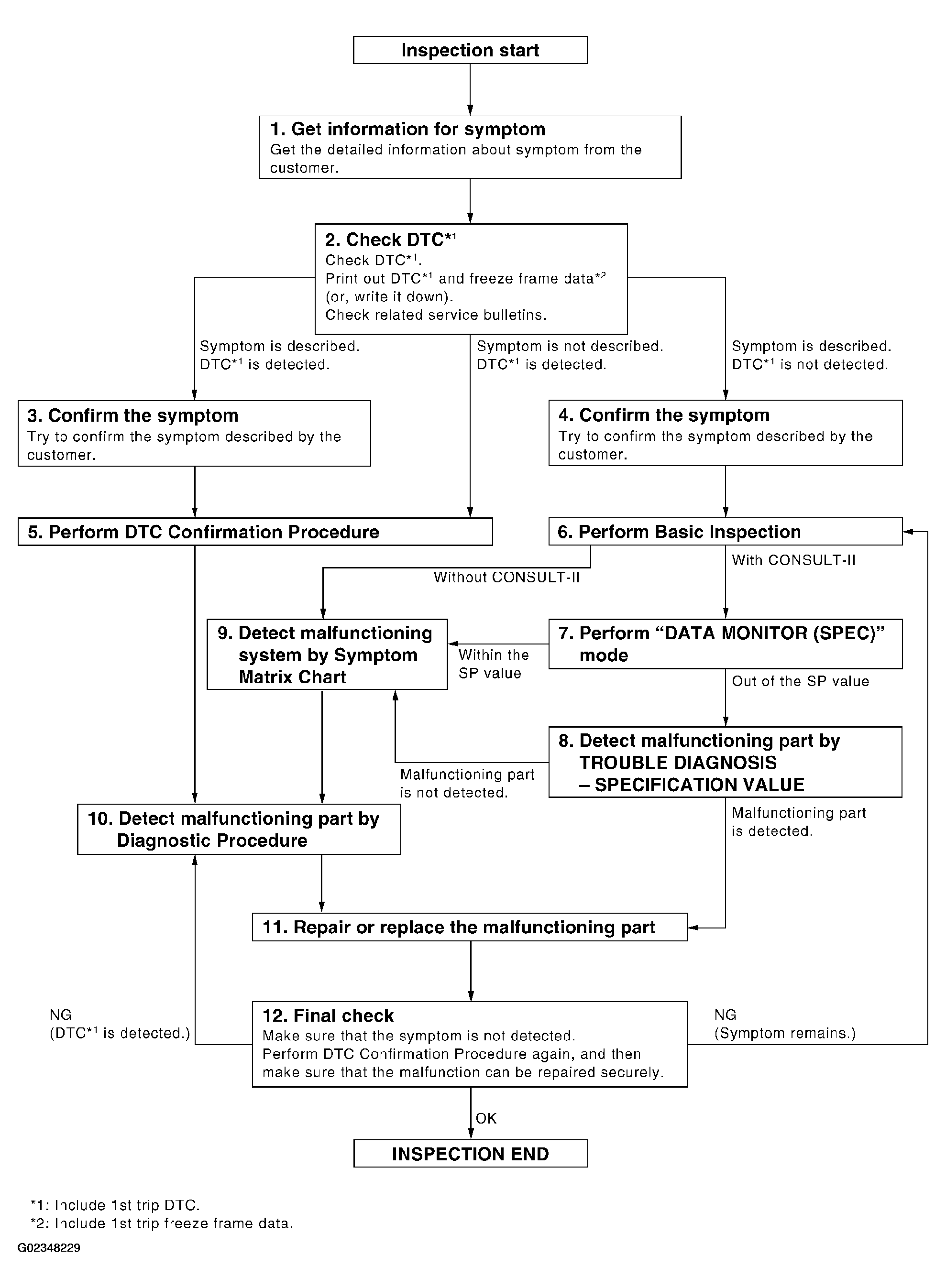

Fig 1: Work Flow Overall Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
