ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

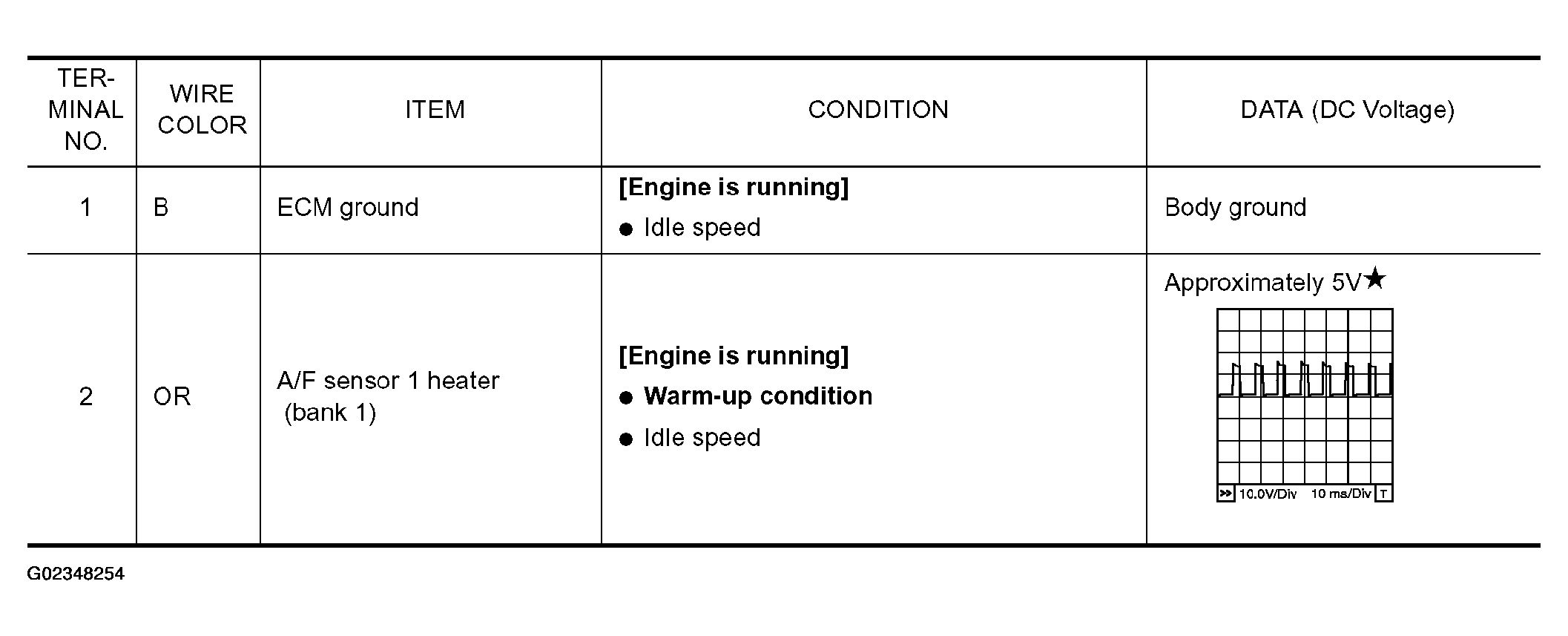

Fig 1: ECM Inspection Table - (1 Of 9)

G02348254

Courtesy of NISSAN MOTOR CO., U.S.A.

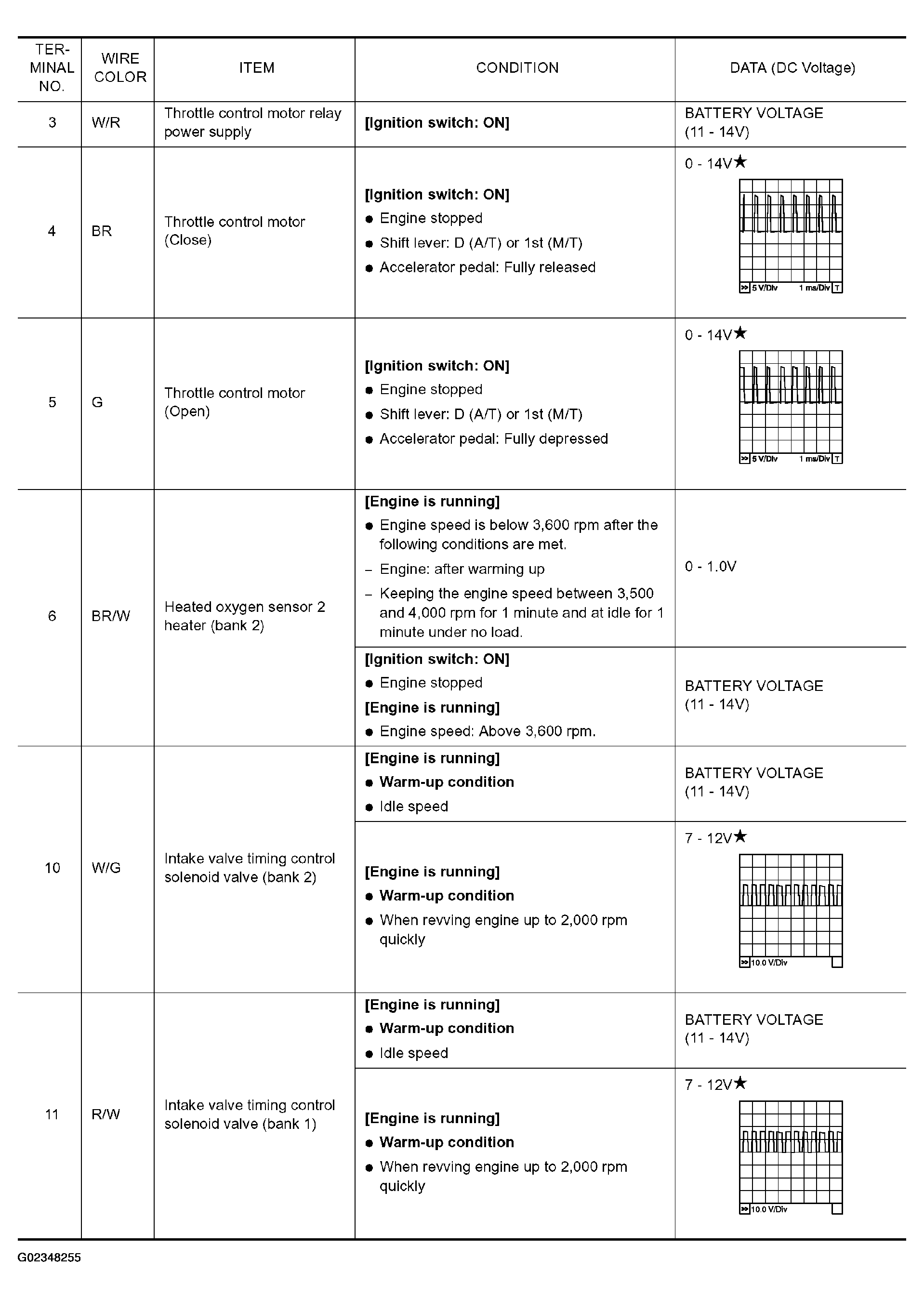

Fig 2: ECM Inspection Table - (2 Of 9)

G02348255

Courtesy of NISSAN MOTOR CO., U.S.A.

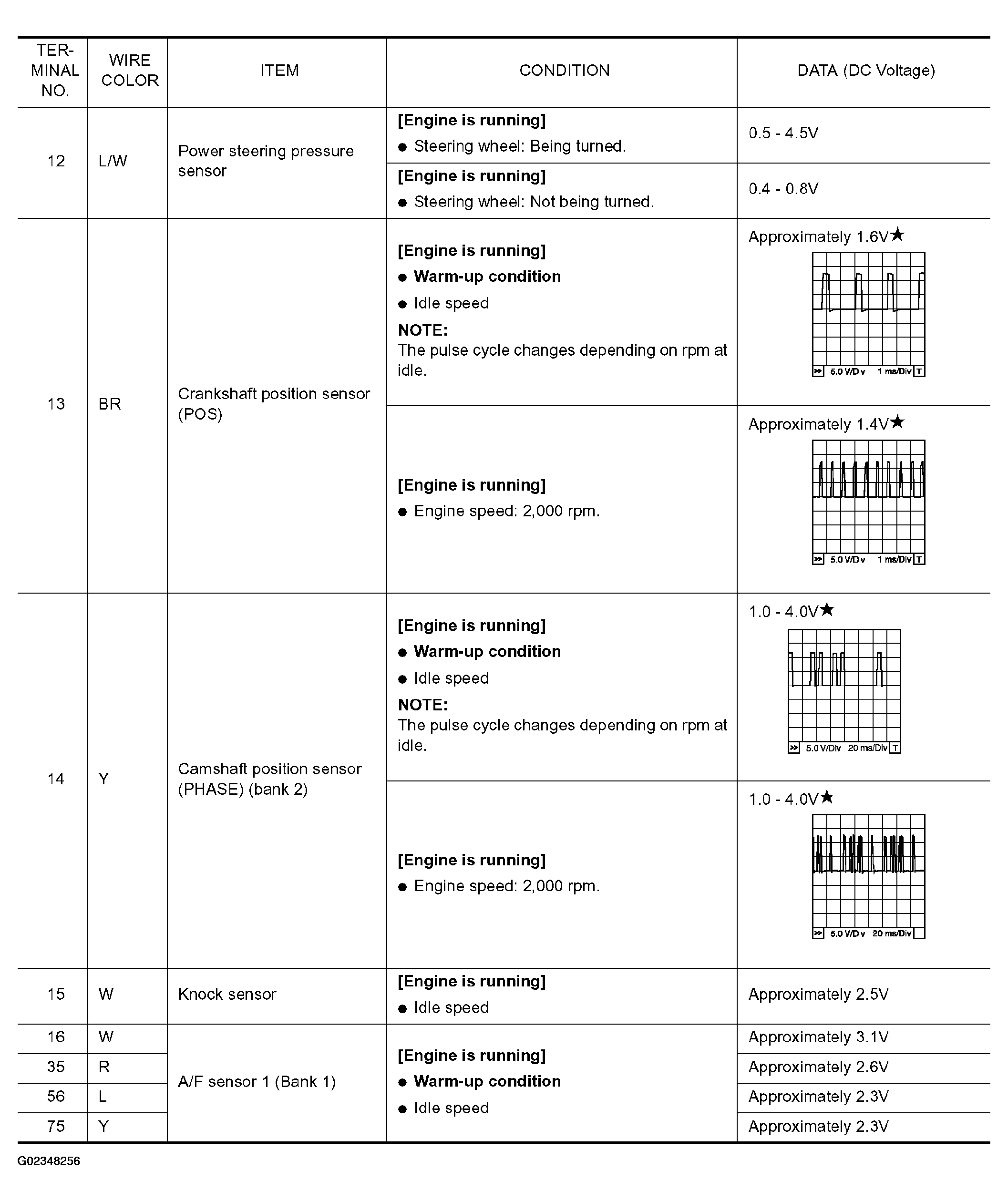

Fig 3: ECM Inspection Table - (3 Of 9)

G02348256

Courtesy of NISSAN MOTOR CO., U.S.A.

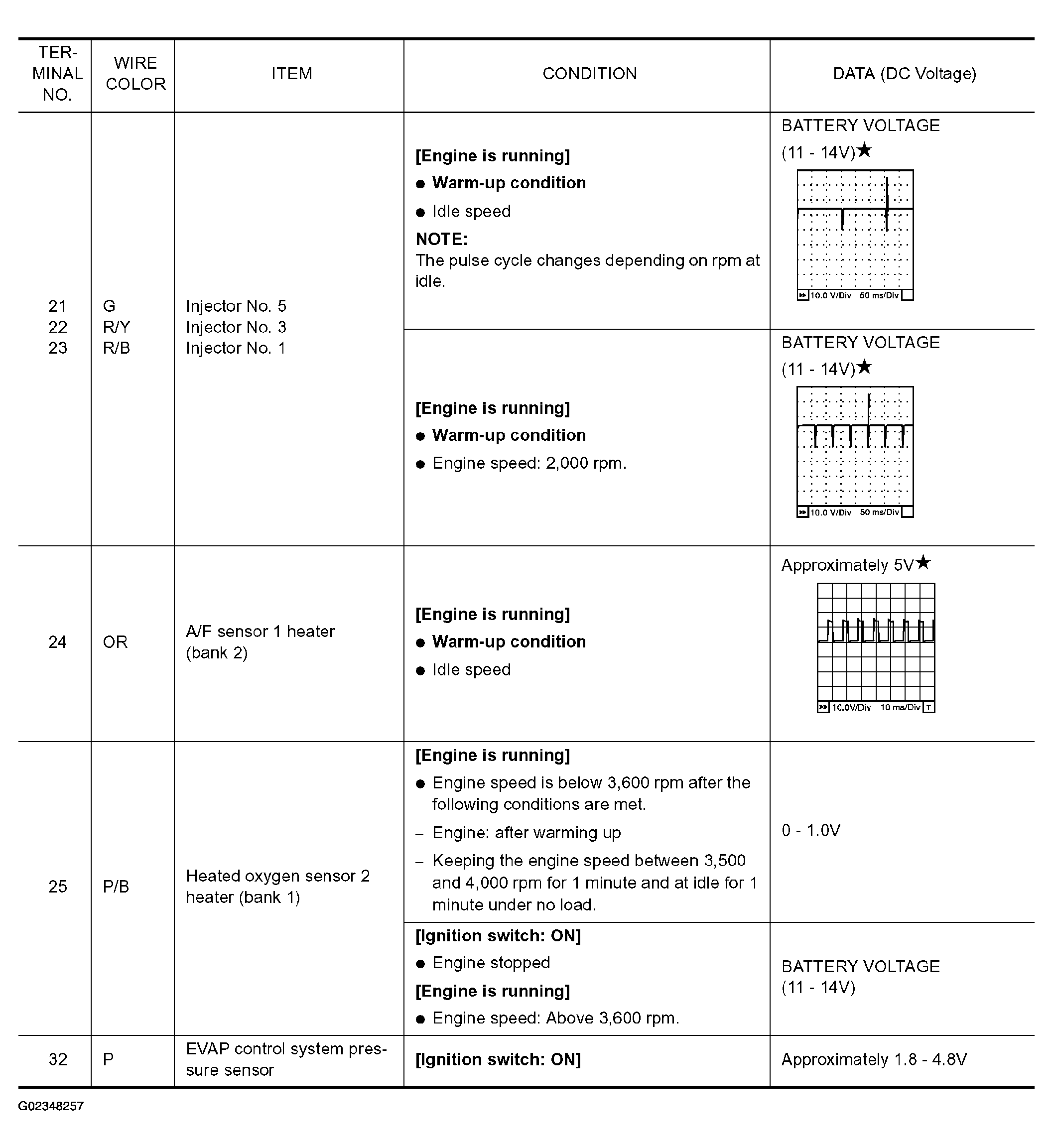

Fig 4: ECM Inspection Table - (4 Of 9)

G02348257

Courtesy of NISSAN MOTOR CO., U.S.A.

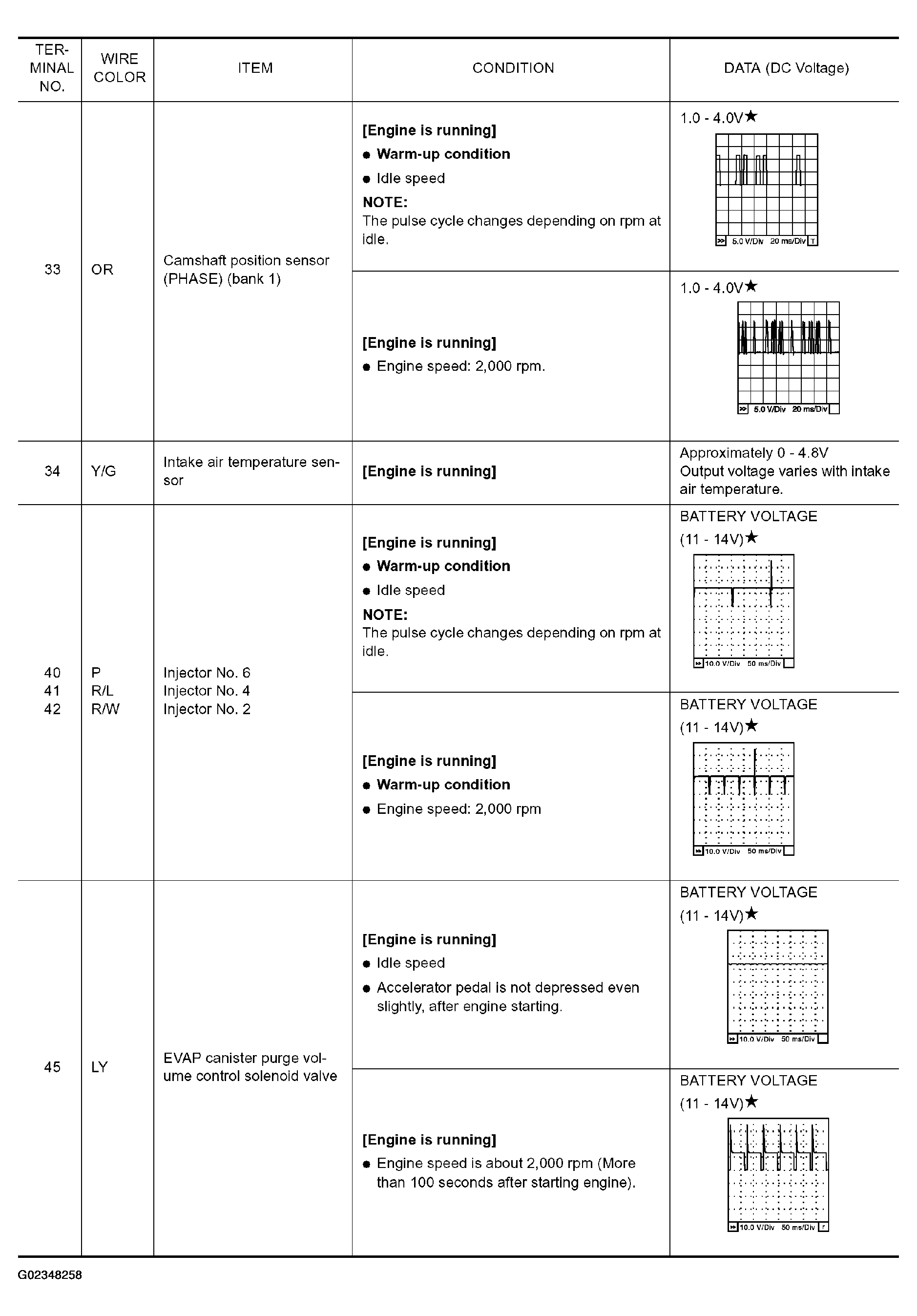

Fig 5: ECM Inspection Table - (5 Of 9)

G02348258

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: ECM Inspection Table - (6 Of 9)

G02348259

Courtesy of NISSAN MOTOR CO., U.S.A.

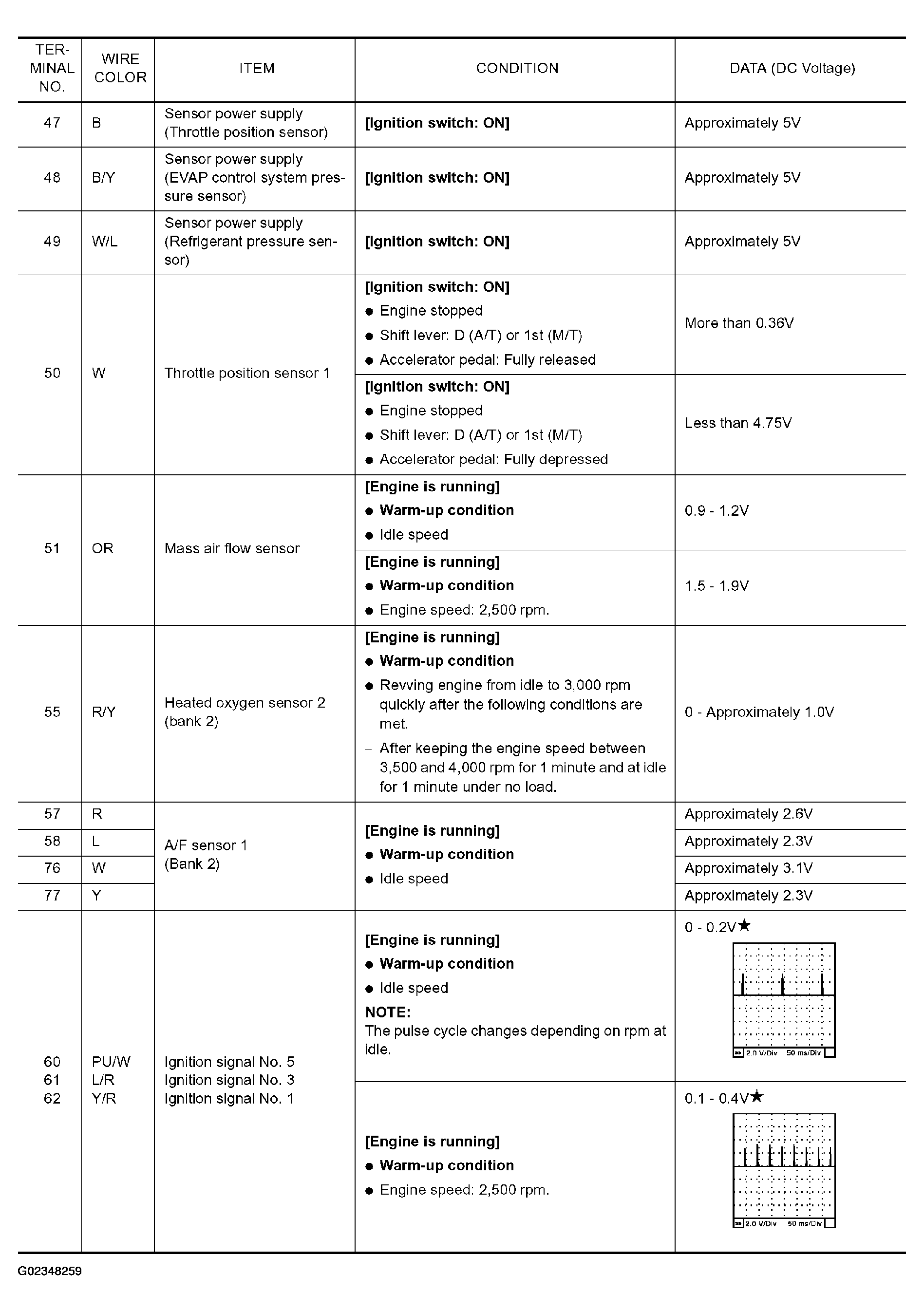

Fig 7: ECM Inspection Table - (7 Of 9)

G02348260

Courtesy of NISSAN MOTOR CO., U.S.A.

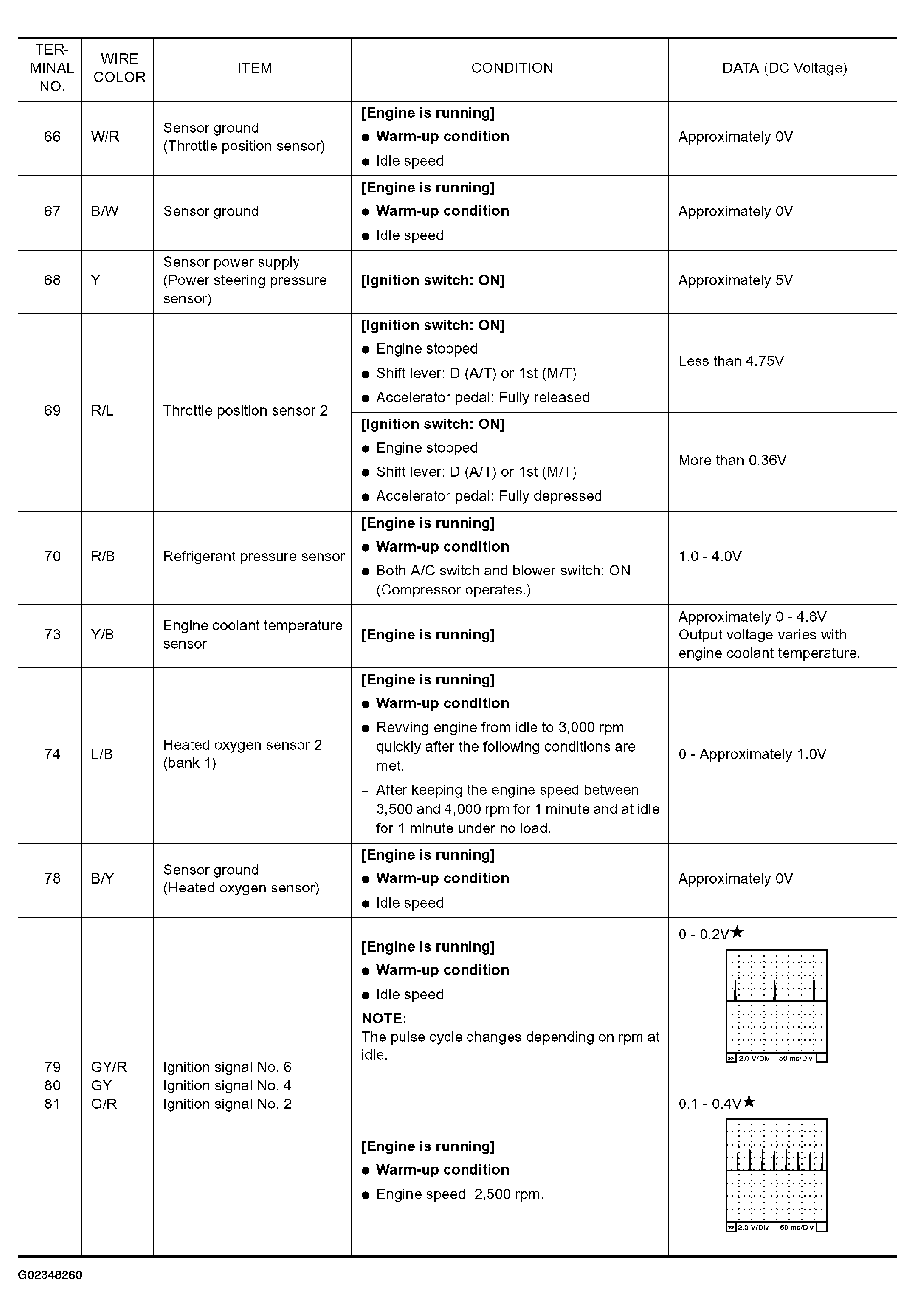

Fig 8: ECM Inspection Table - (8 Of 9)

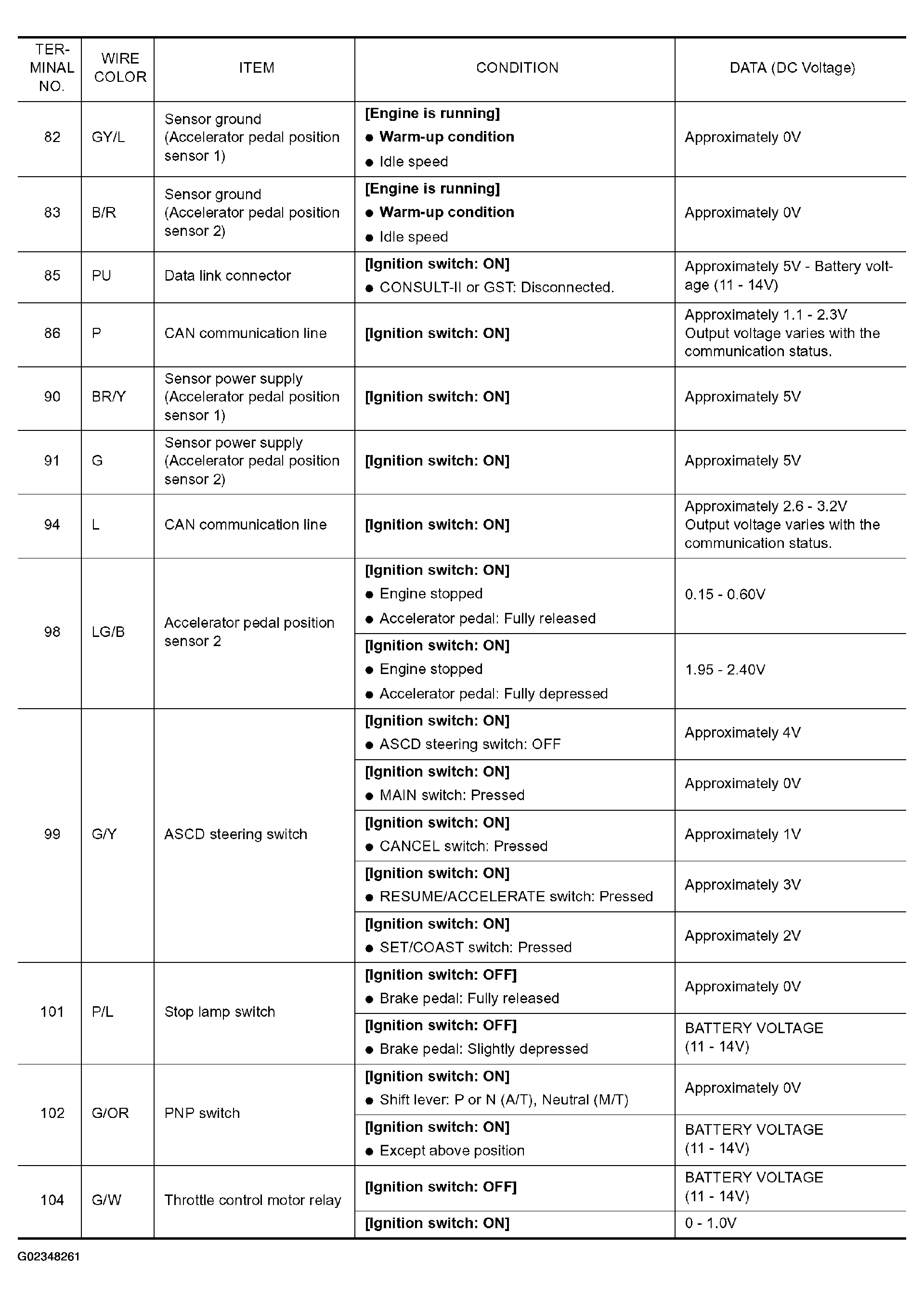

G02348261

Courtesy of NISSAN MOTOR CO., U.S.A.

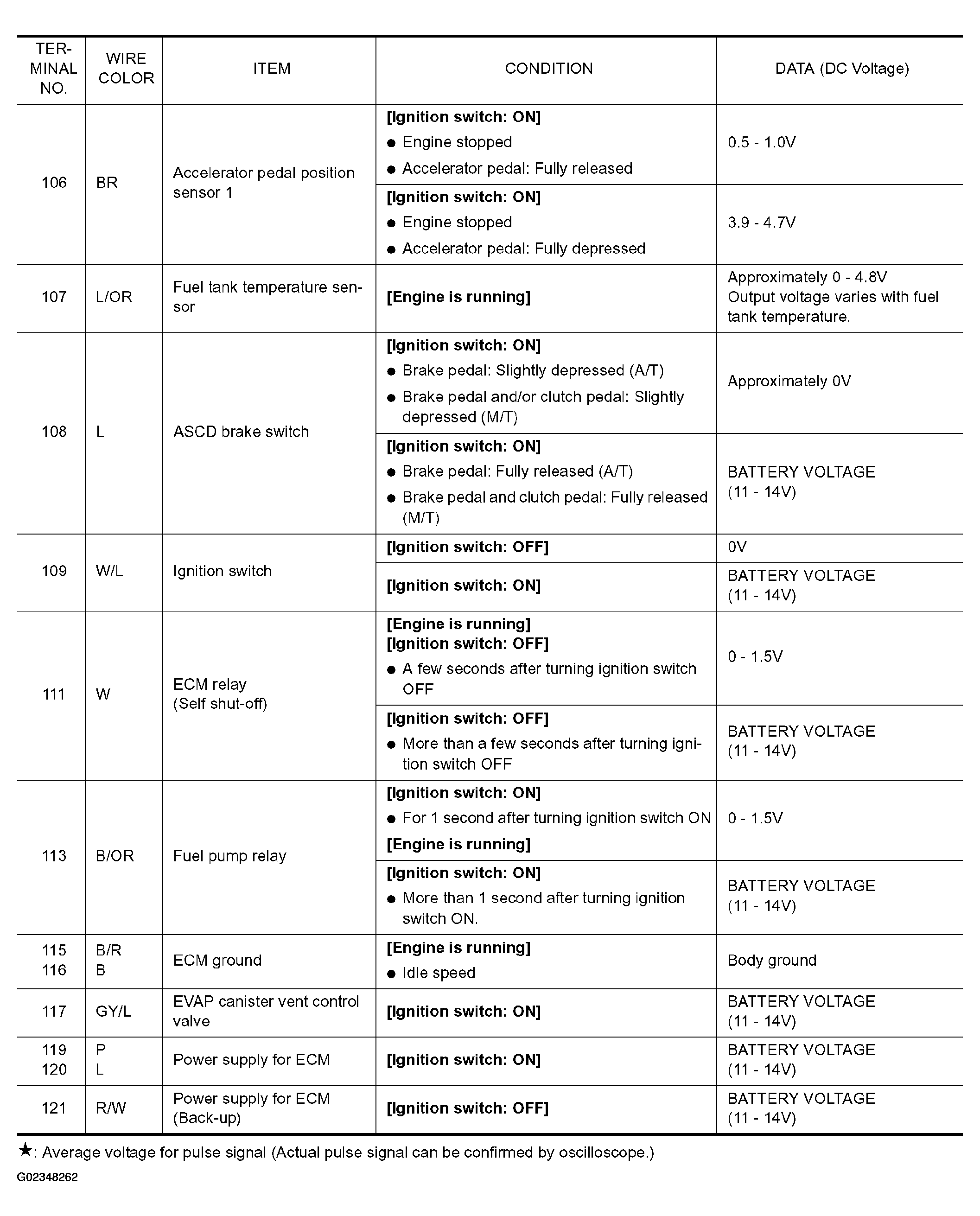

Fig 9: ECM Inspection Table - (9 Of 9)

G02348262

Courtesy of NISSAN MOTOR CO., U.S.A.
