AWD Models

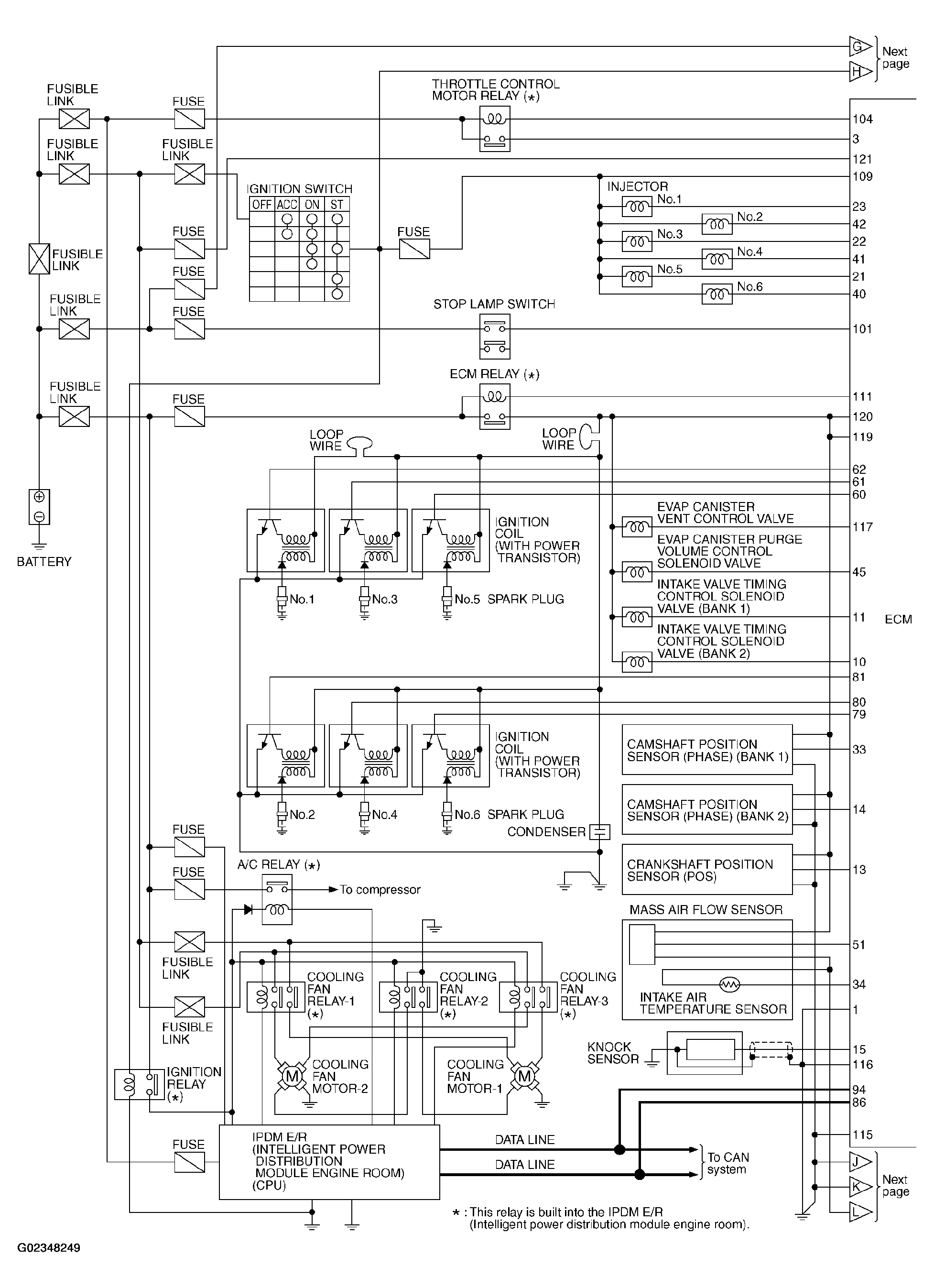

Fig 1: Circuit Diagram - AWD Models (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

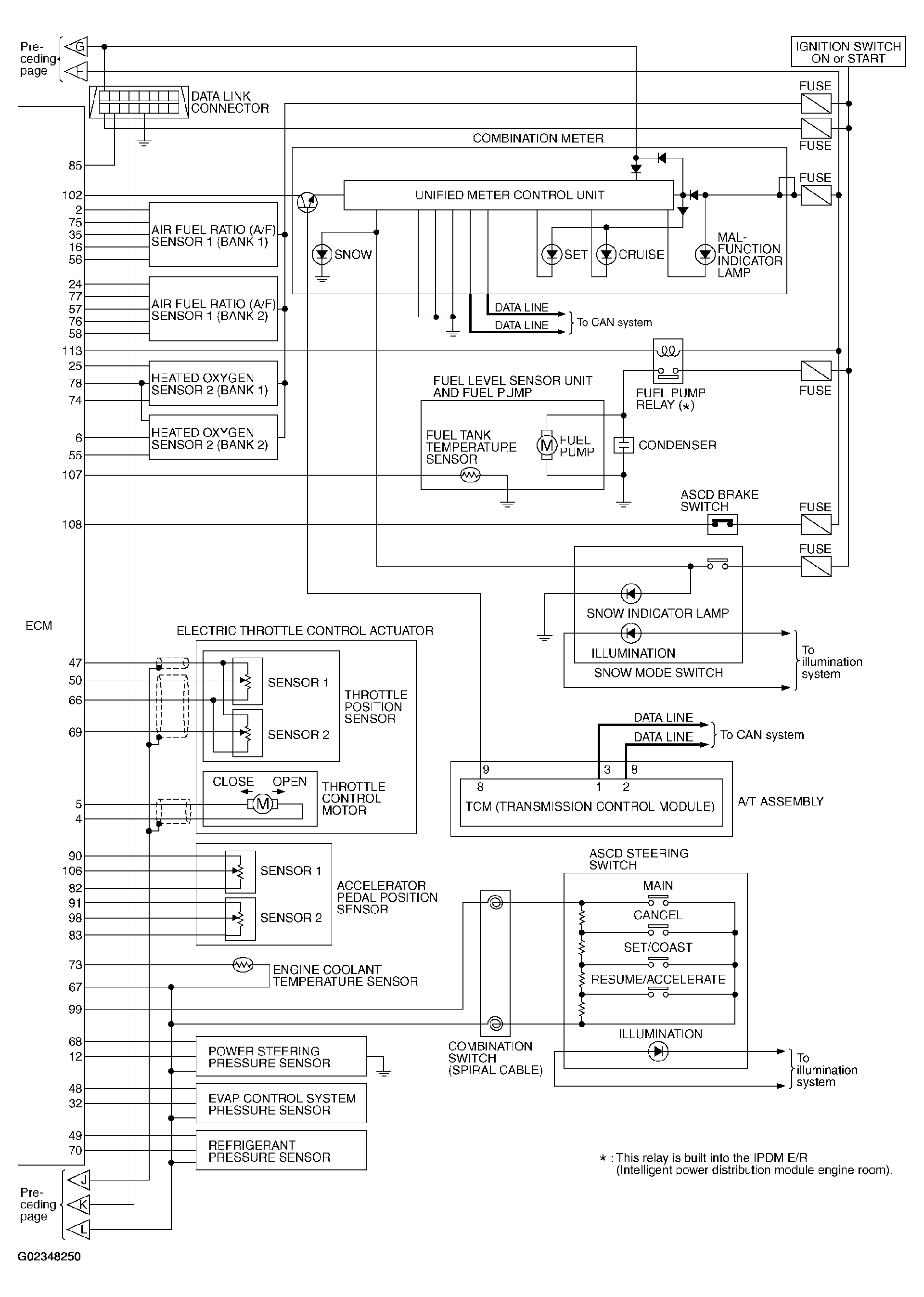

Fig 2: Circuit Diagram - AWD Models (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
