Work Item

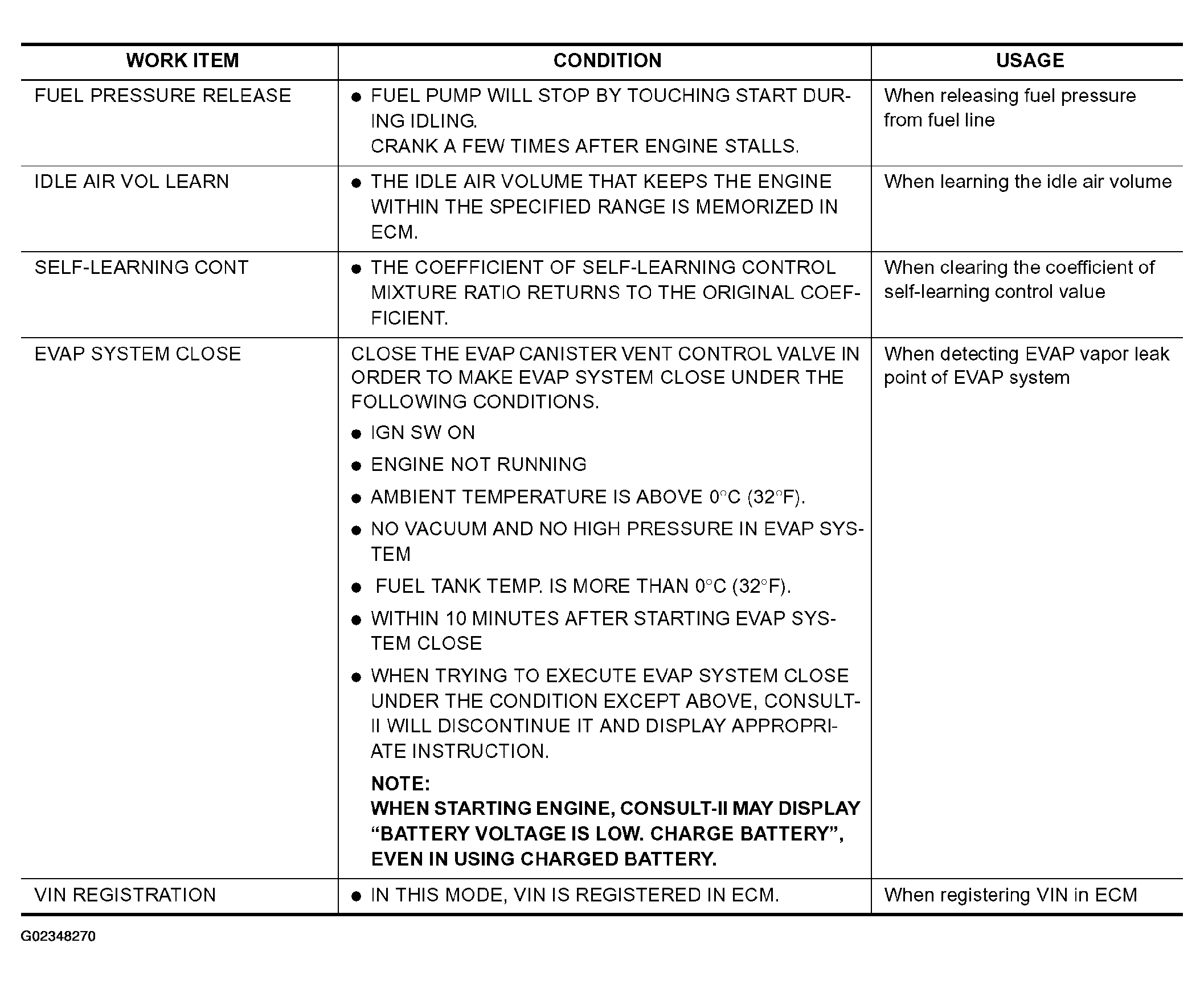

Fig 1: Work Support Mode Table - (1 Of 2)
G02348270Courtesy of NISSAN MOTOR CO., U.S.A.

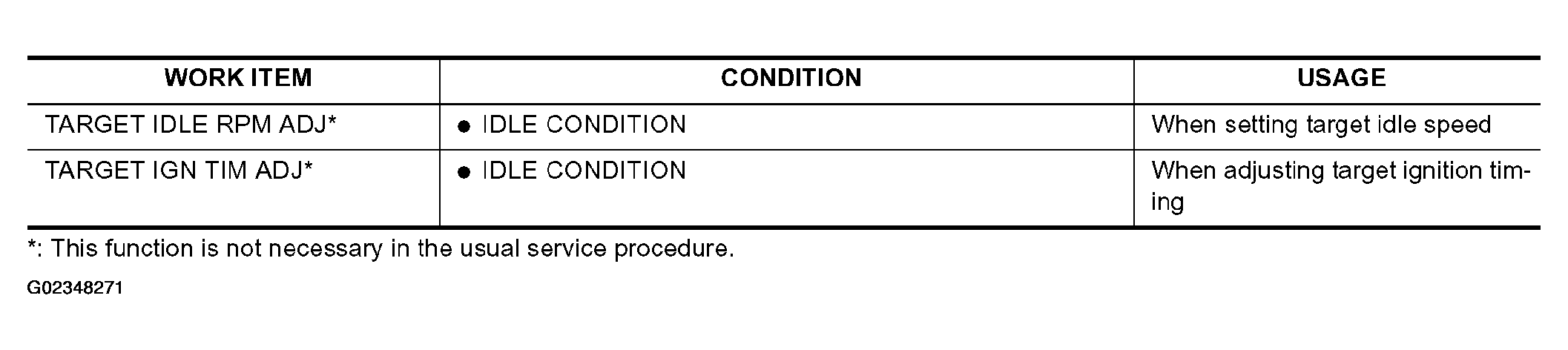

Fig 2: Work Support Mode Table - (2 Of 2)
G02348271Courtesy of NISSAN MOTOR CO., U.S.A.
