CONSULT-II Function (ENGINE): Function

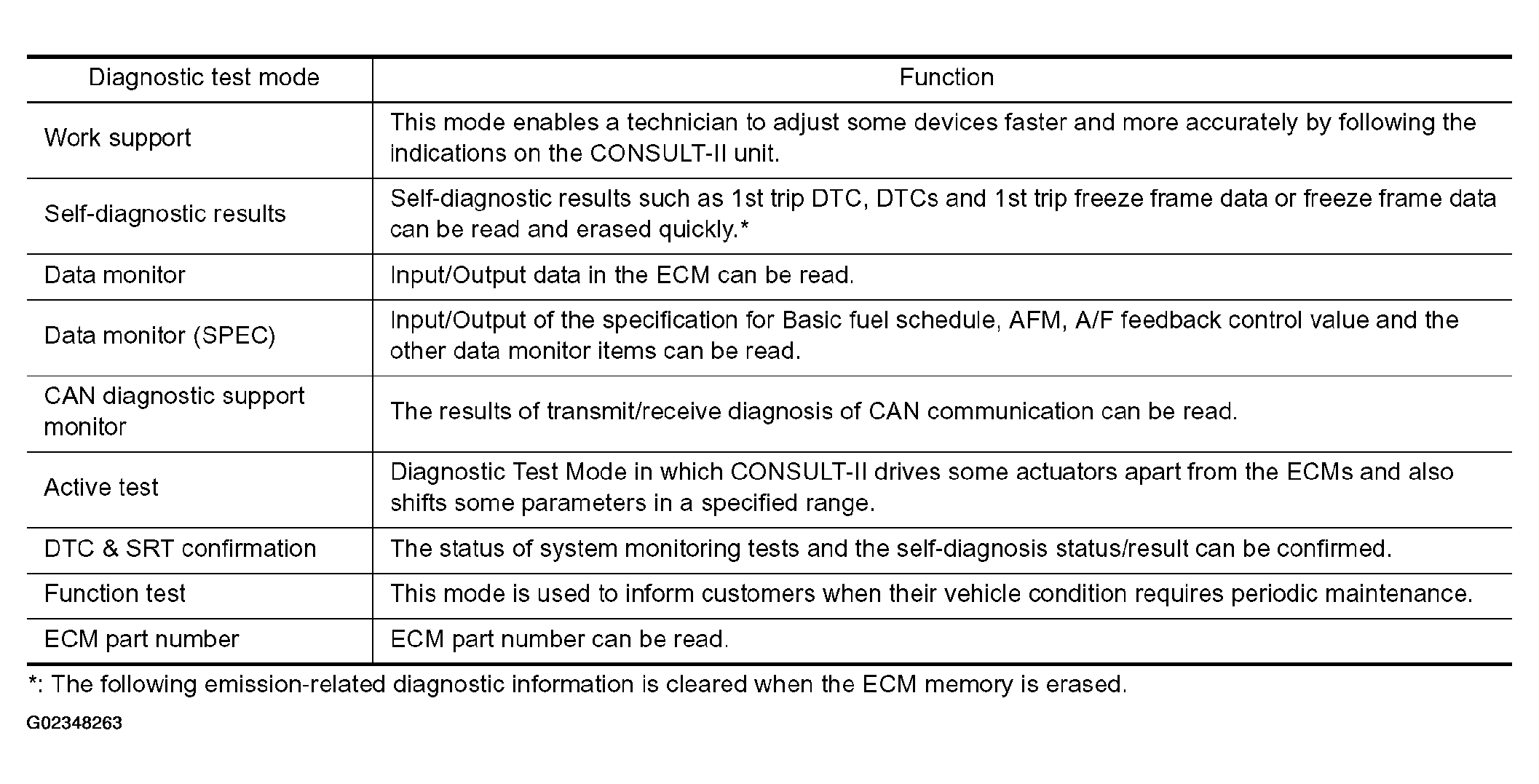

Fig 1: CONSULT-II Function Table
G02348263Courtesy of NISSAN MOTOR CO., U.S.A.
