Idle Speed and Ignition Timing

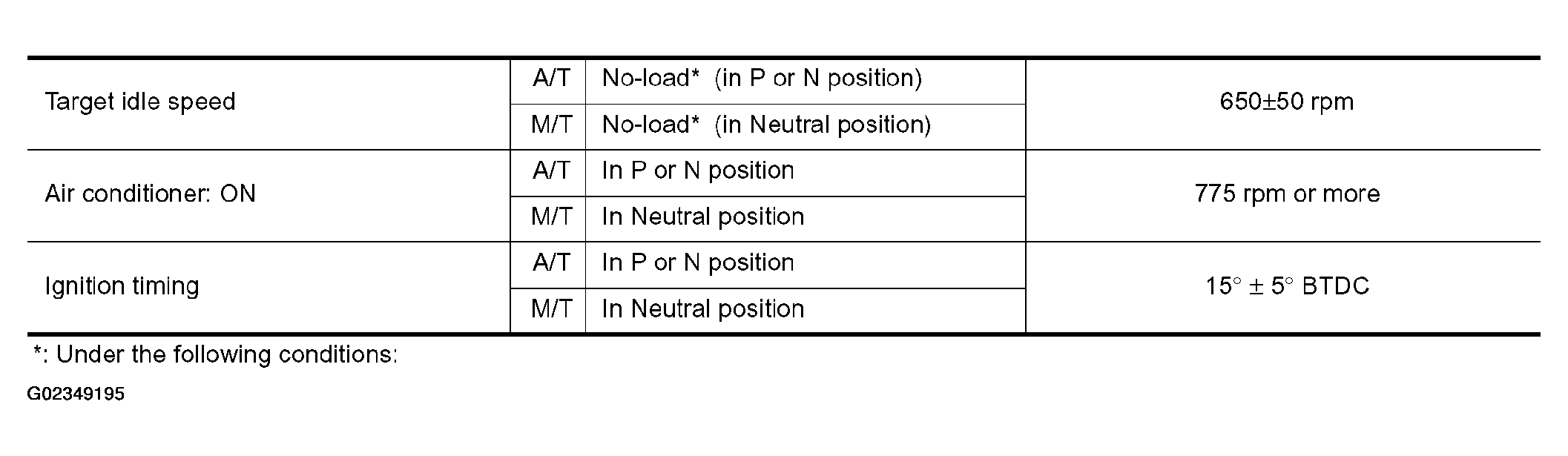

Fig 1: Idle Speed And Ignition Timing Table
G02349195Courtesy of NISSAN MOTOR CO., U.S.A.
