ASCD Steering Switch

Disconnect combination switch (spiral cable) harness connector M203>.
Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

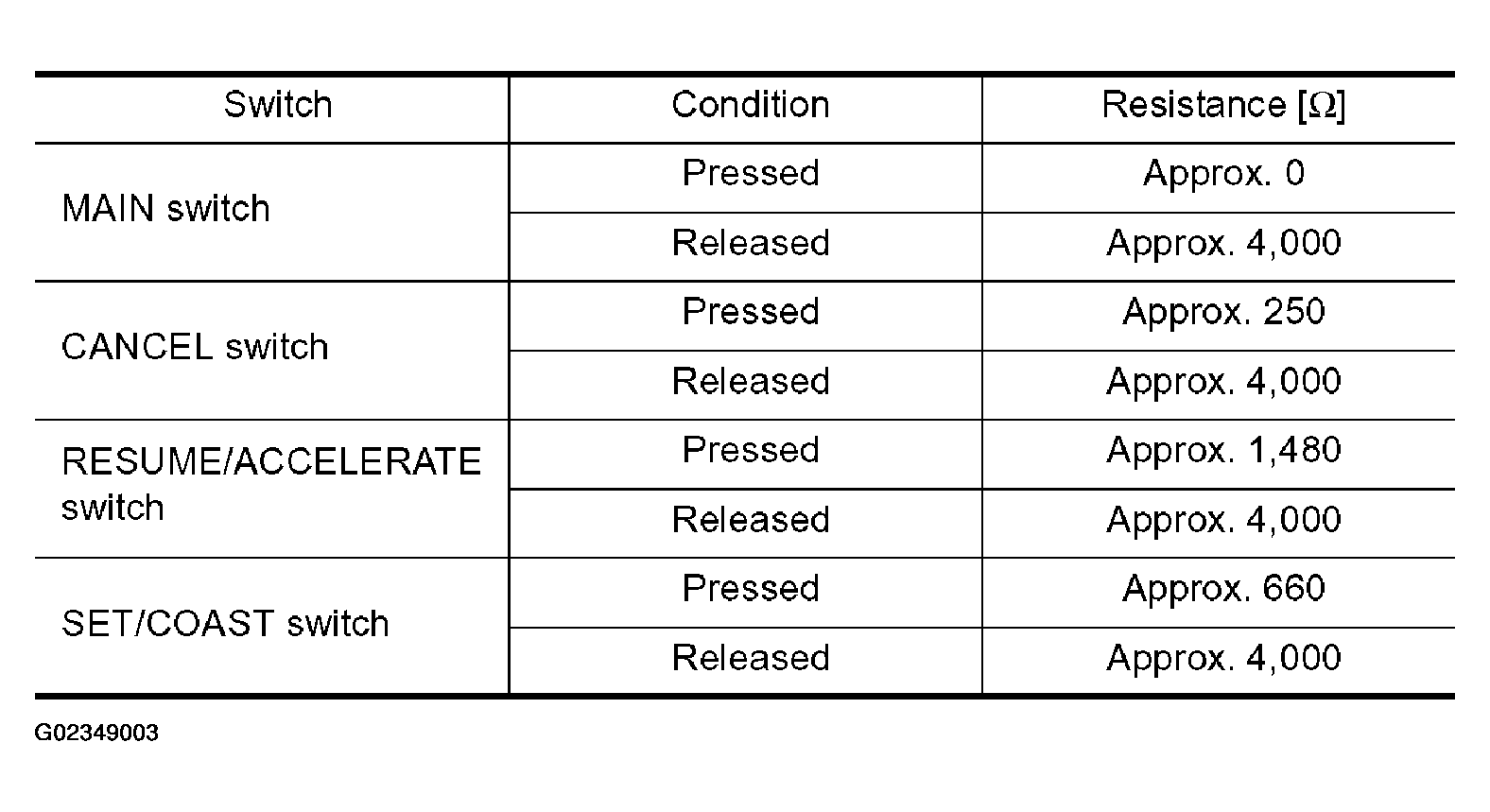

Fig 1: Switch Condition Resistance Table
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Continuity Between Combination Switch (Spiral Cable) Terminals 14 And 15 With Pushing Each Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
