On Board Diagnosis Logic

This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and EVAP canister purge volume control solenoid valve.

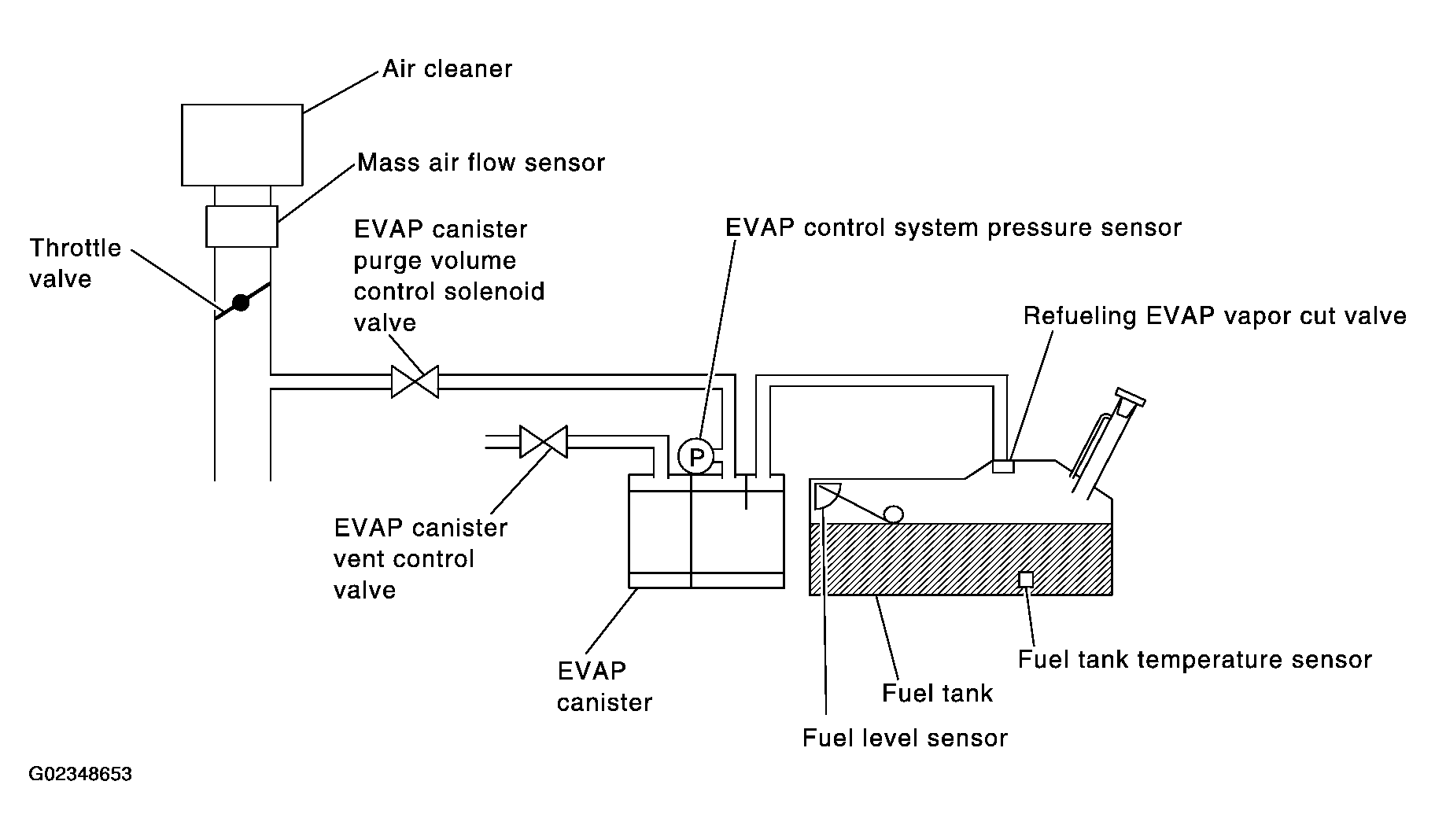

Fig 1: Diagnosis Procedure DTC P0455 -Detecting Very Large Leak
G02348653Courtesy of NISSAN MOTOR CO., U.S.A.

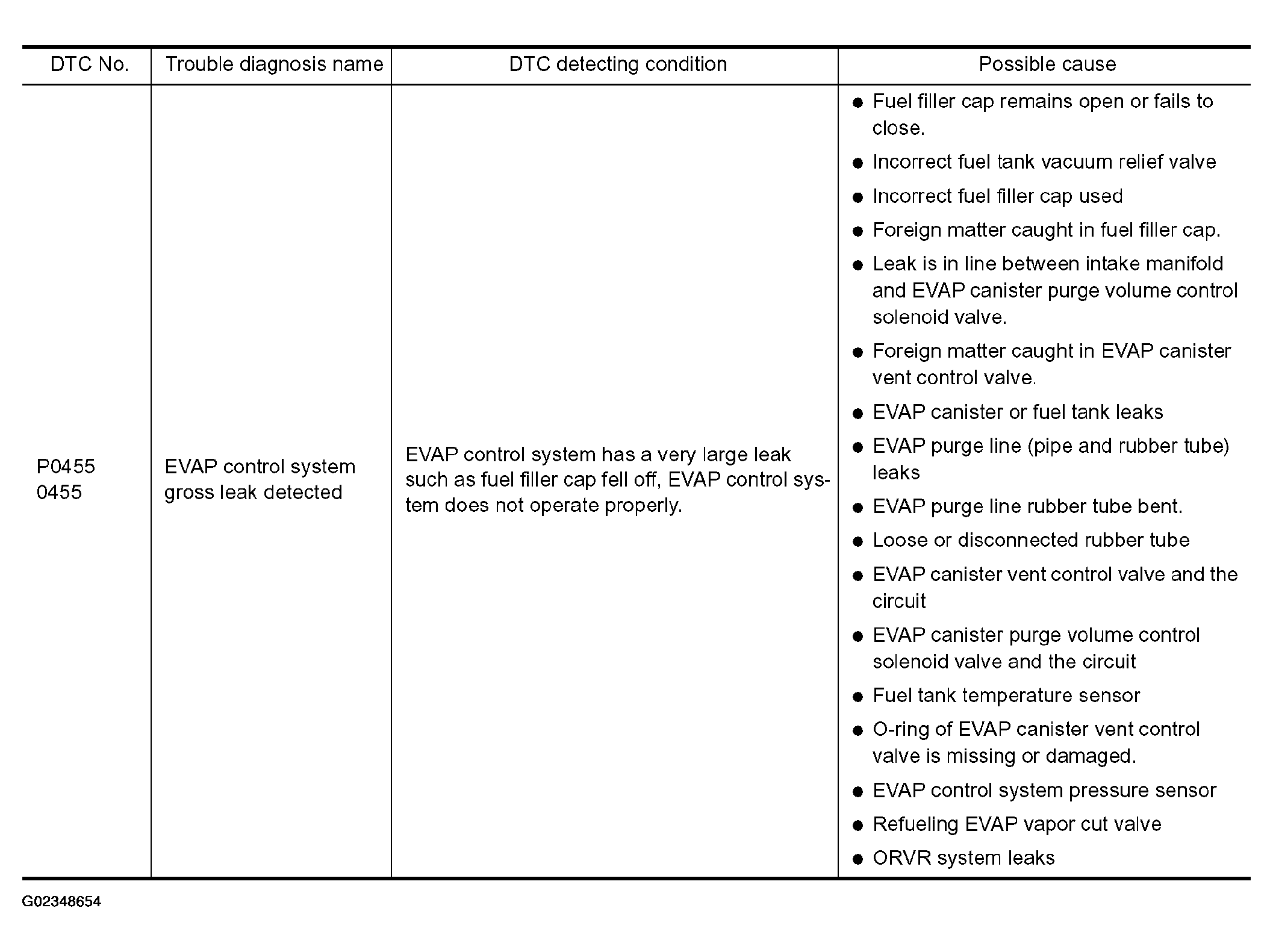

Fig 2: DTC P0455 - Detection Condition And Possible Cause Table
G02348654Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
  • If the fuel filler cap is not tightened properly, the MIL may come on.
  • Use only a genuine NISSAN rubber tube as a replacement.
