On Board Diagnosis Logic: Notes

These self-diagnoses have the one trip detection logic.

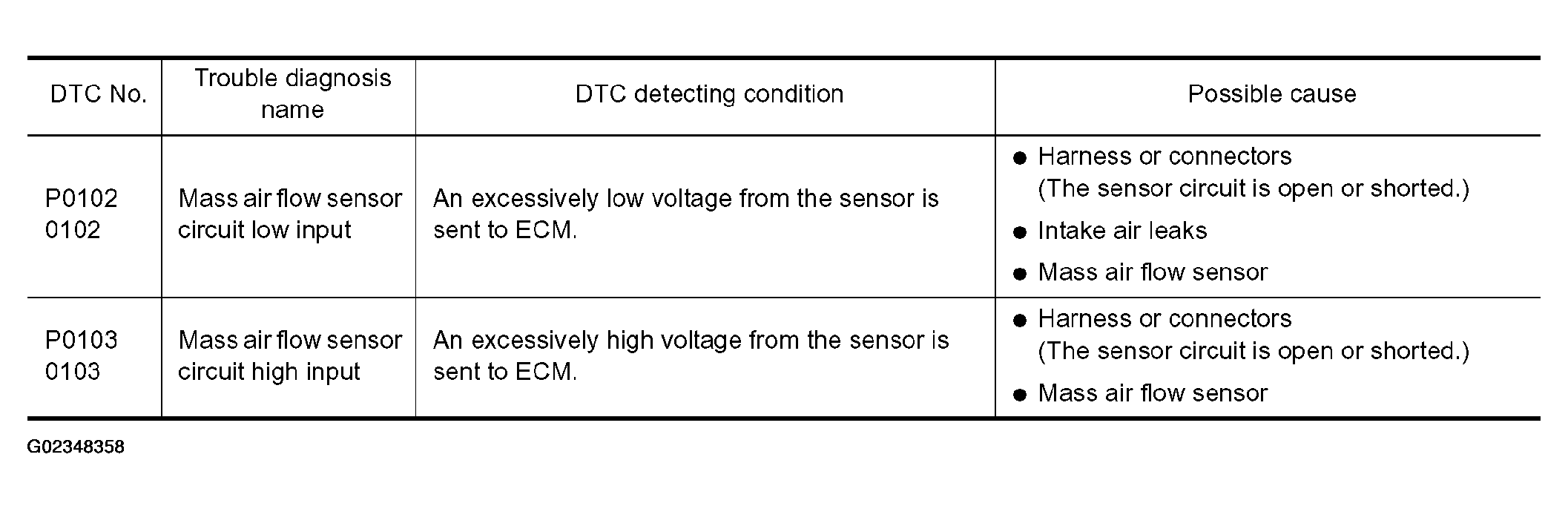

Fig 1: On Board Diagnosis Logic Table
G02348358Courtesy of NISSAN MOTOR CO., U.S.A.
