With GST

Start engine and warm it up to normal operating temperature.
Select Service $01 with GST.
Check the mass air flow sensor signal with Service $01.
Check for linear mass air flow sensor signal value rise in response to increases to about 4,000 RPM in engine speed.
If NG, go to "Diagnostic Procedure ".

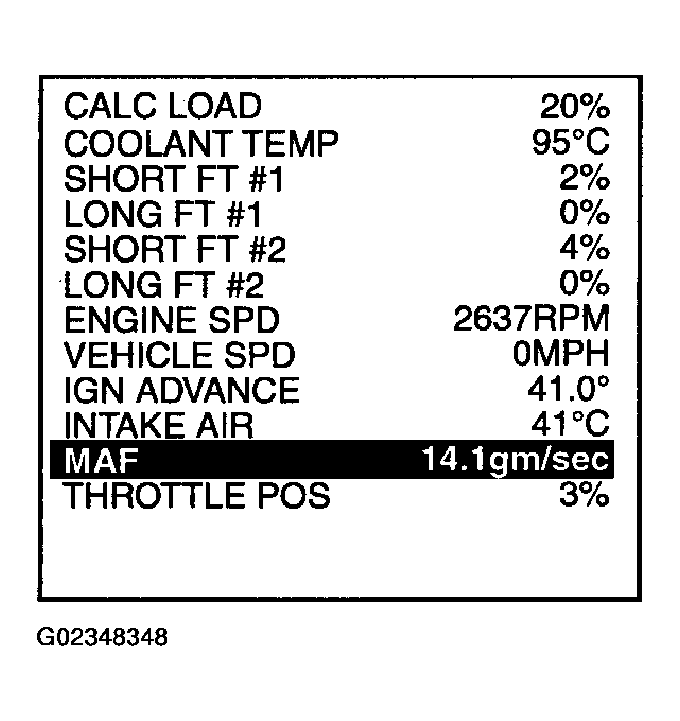

Fig 1: Procedure For Malfunction B
Courtesy of NISSAN MOTOR CO., U.S.A.
