Overall Sequence

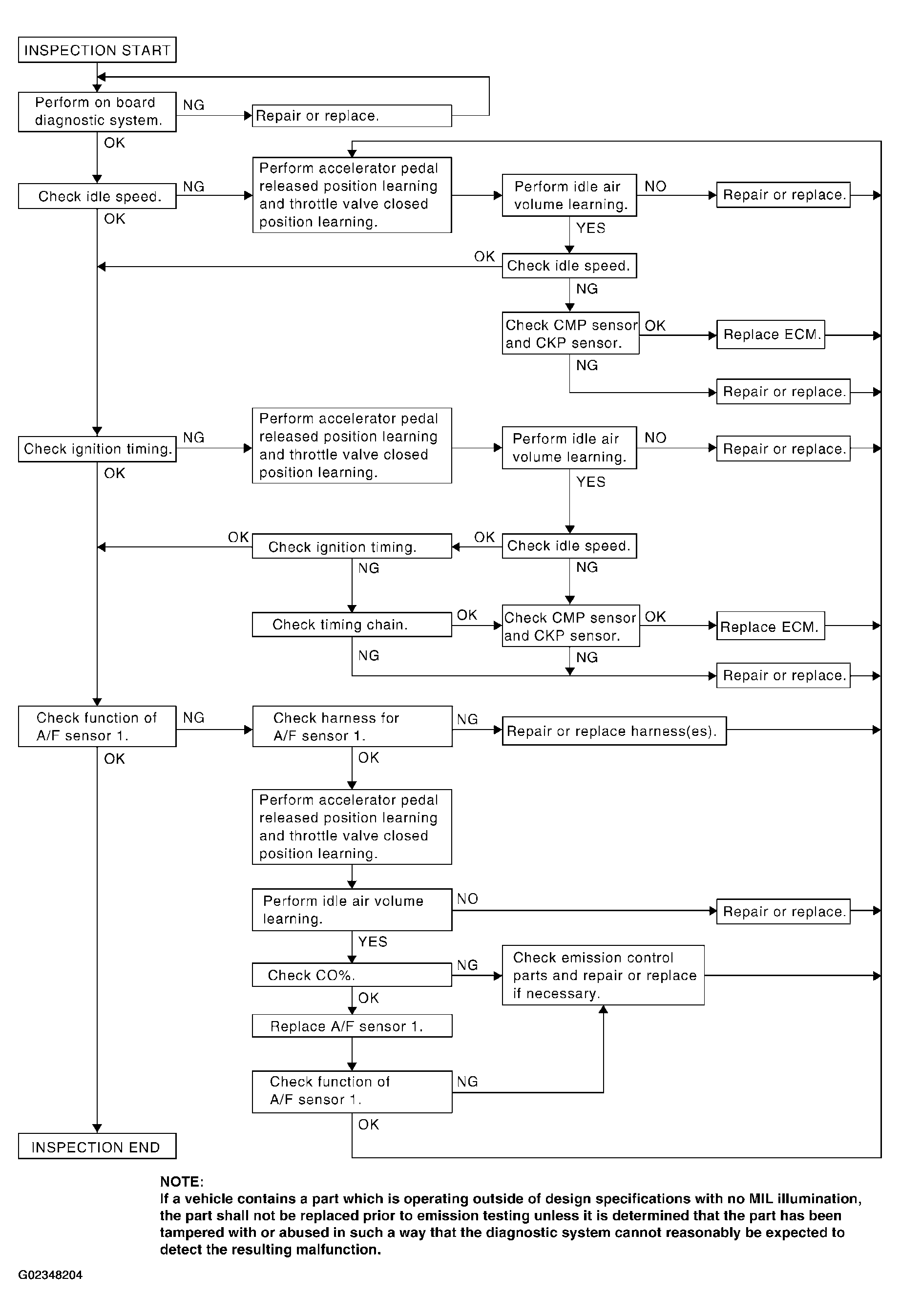

Fig 1: Idle Mixture Ratio Adjustment Overall Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.
