Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Circuit Breaker (W/Auto Drive Positioner) Behind left side of dash. See Figure .

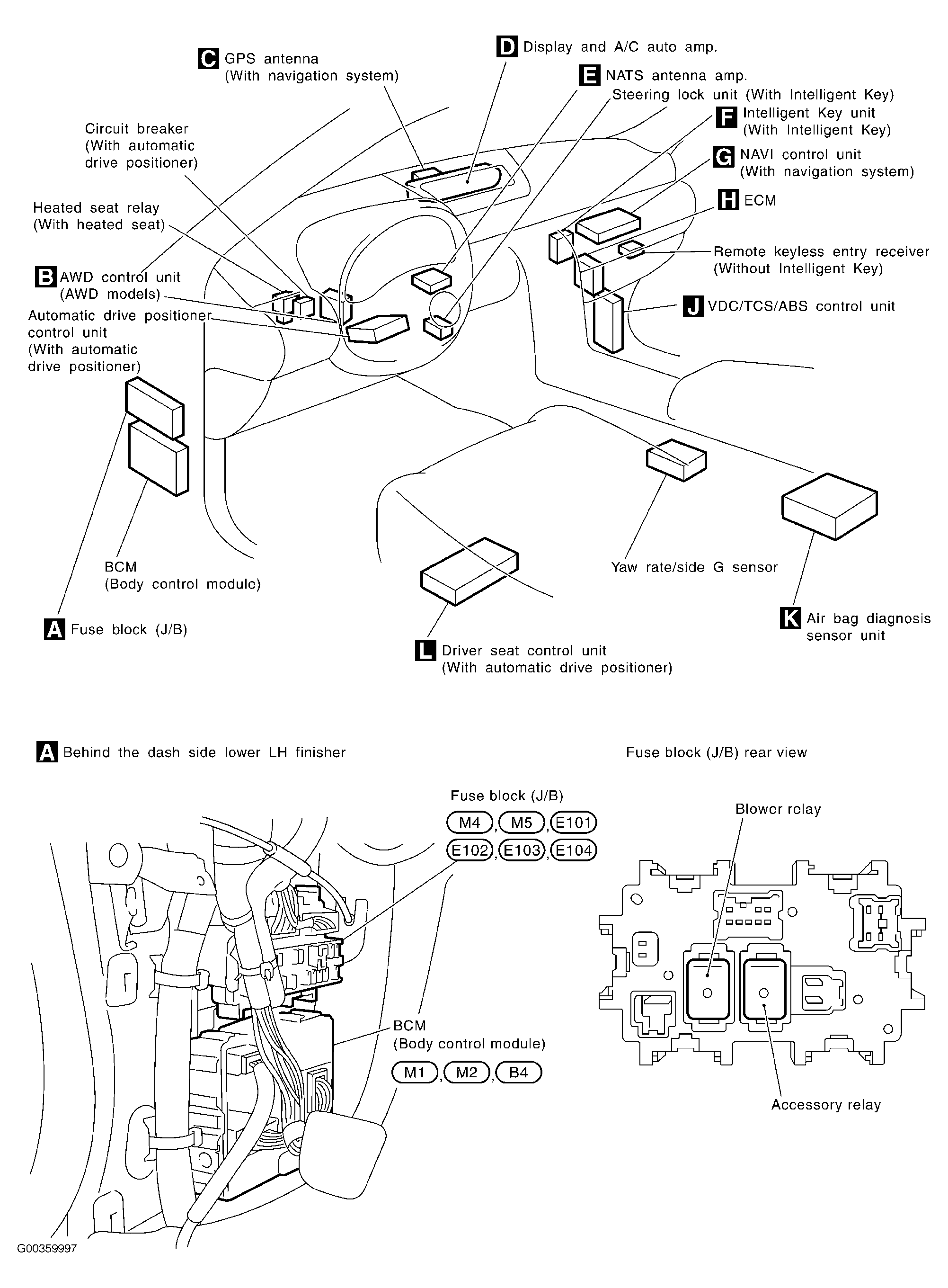

Fuse Block (J/B) Behind left kick panel. See Figure .

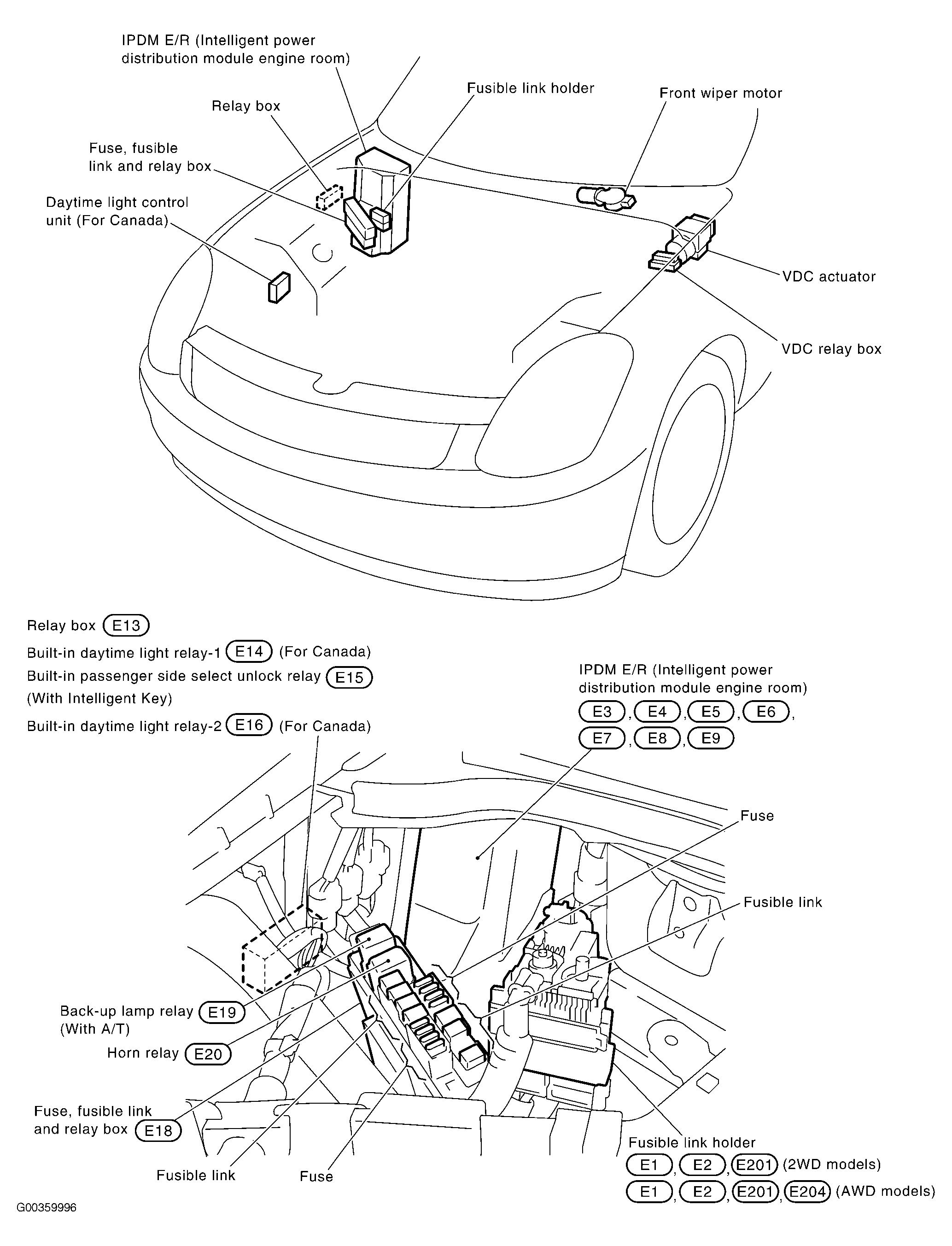

Fuse, Fusible Link & Relay Box At right rear of engine compartment. See Figure .
Fusible Link Holder At right rear of engine compartment. See Figure .
Fusible Links In fusible link & relay box, at right rear of engine compartment. See Figure .
IPDM E/R (Intelligent Power Distribution Module Engine Room) At right rear of engine compartment. See Figure .
Relay Box At right rear of engine compartment. See Figure .
VDC Relay Box At left rear of engine compartment. See Figure .
