On Board Diagnosis Logic: Notes

This self-diagnosis has the one trip detection logic.

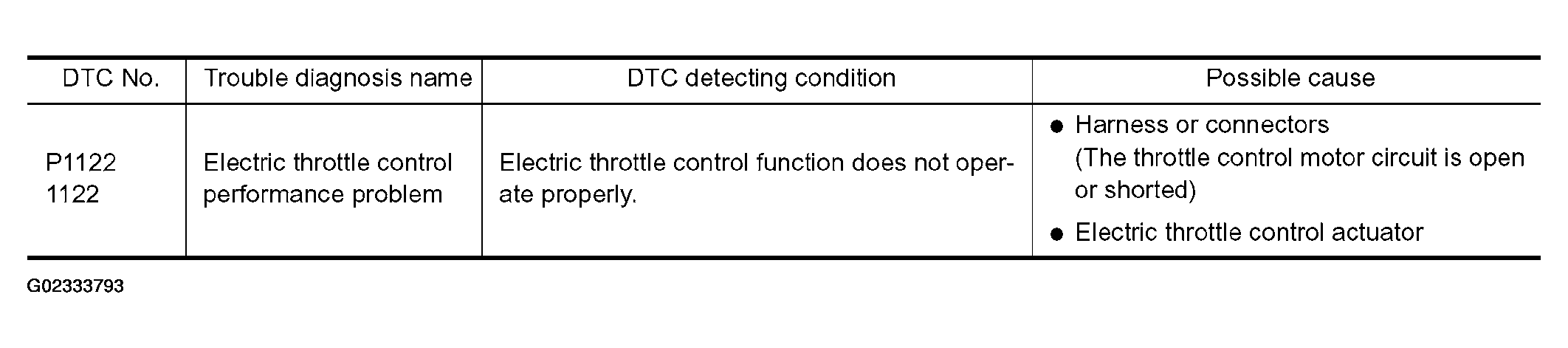

Fig 1: On Board Diagnosis Logic Chart (DTC P01122)
G02333793Courtesy of NISSAN MOTOR CO., U.S.A.
