Specifications with CONSULT-II

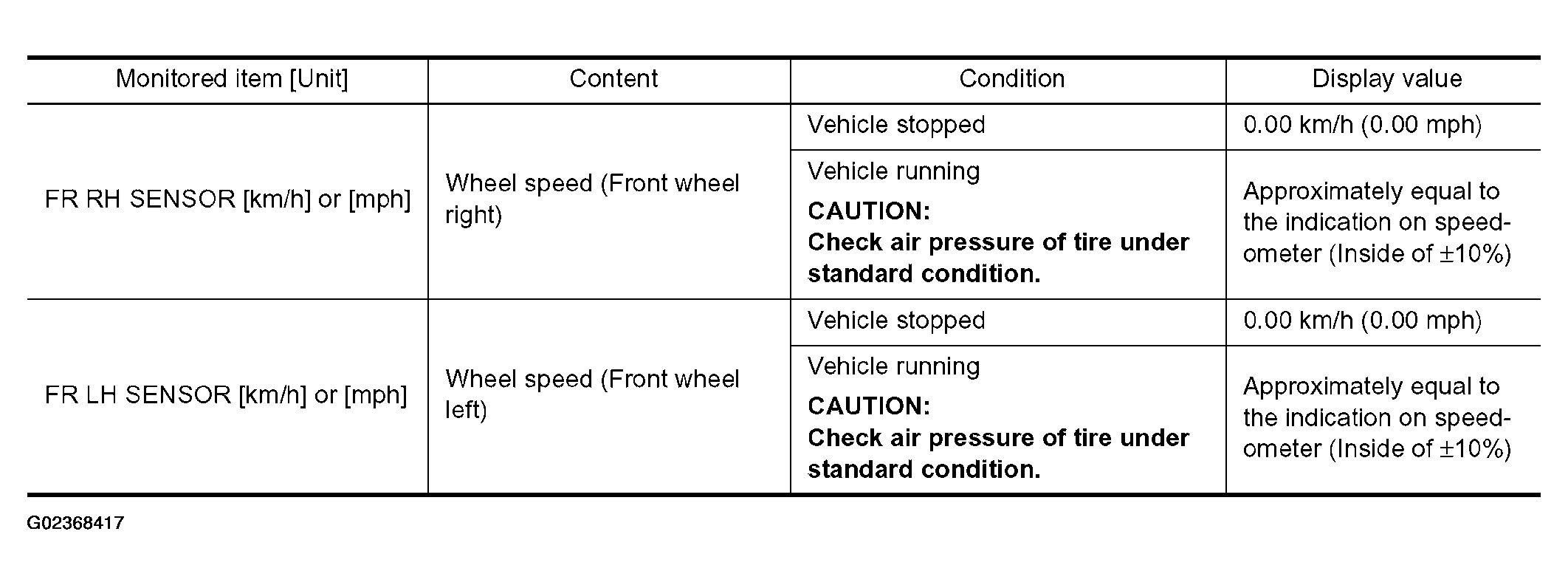

Fig 1: Specifications For - CONSULT-II
G02368417Courtesy of NISSAN MOTOR CO., U.S.A.

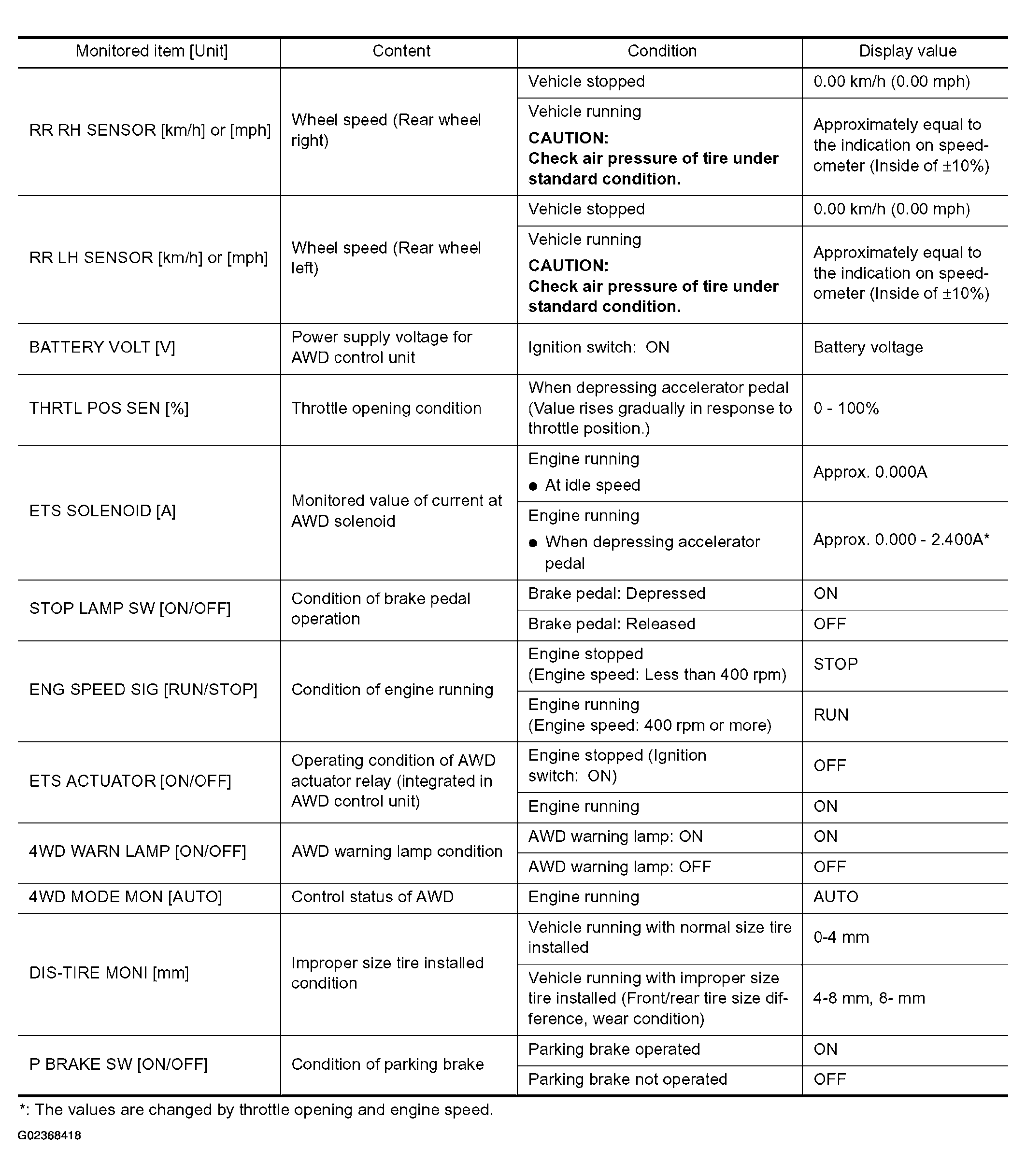

Fig 2: Specifications For - CONSULT-II
G02368418Courtesy of NISSAN MOTOR CO., U.S.A.

*: The values are changed by throttle opening and engine speed.
