System Diagram: Notes

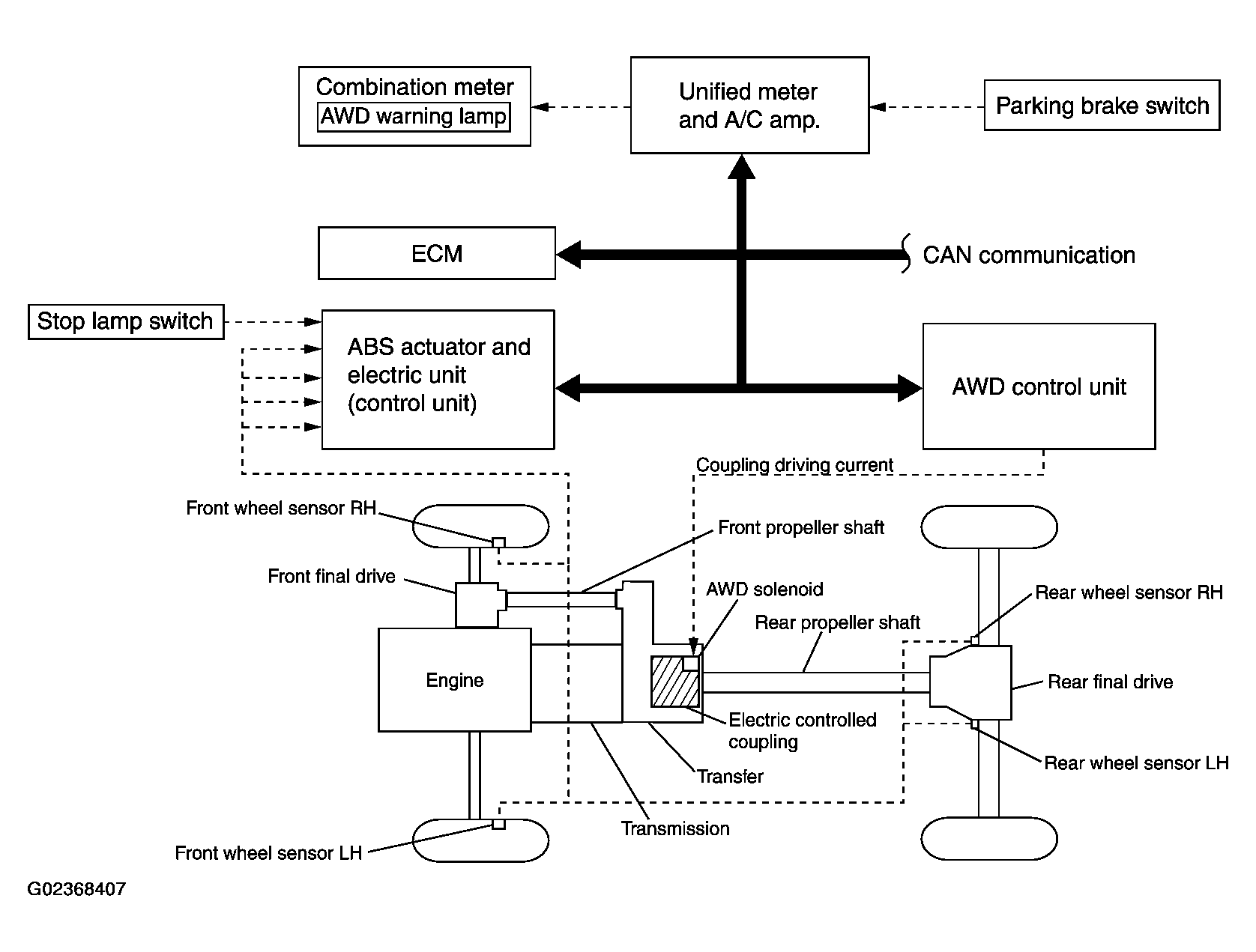

Fig 1: AWD System - System Diagram

G02368407

Courtesy of NISSAN MOTOR CO., U.S.A.
