Control Device Removal and Installation: Removal

Disconnect lower lever of control device and control rod.
Remove knob cover below selector lever knob downward.
Pull lock pin out of selector lever knob.
Remove selector lever knob.
Remove console finisher.
- Refer to "COMPONENT PARTS DRAWING ".
Remove center console.
- Refer to "COMPONENT PARTS DRAWING ".

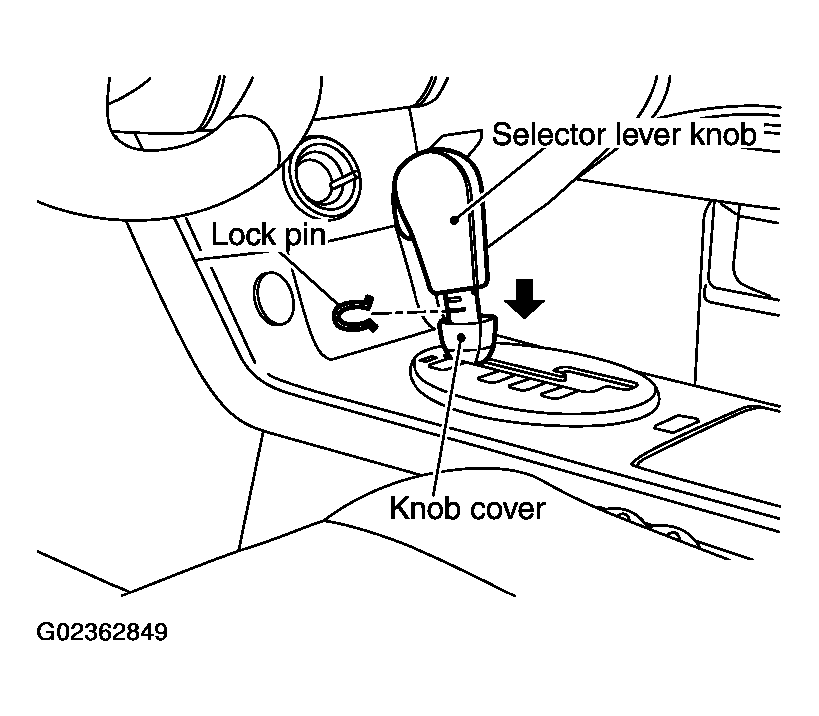

Fig 1: Identifying Knob Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove key interlock cable from control device.
- Refer to "REMOVAL AND INSTALLATION ".
Disconnect A/T device harness connector.
Remove control device assembly.
