Revolution Sensor Components (2WD Models Only): Components

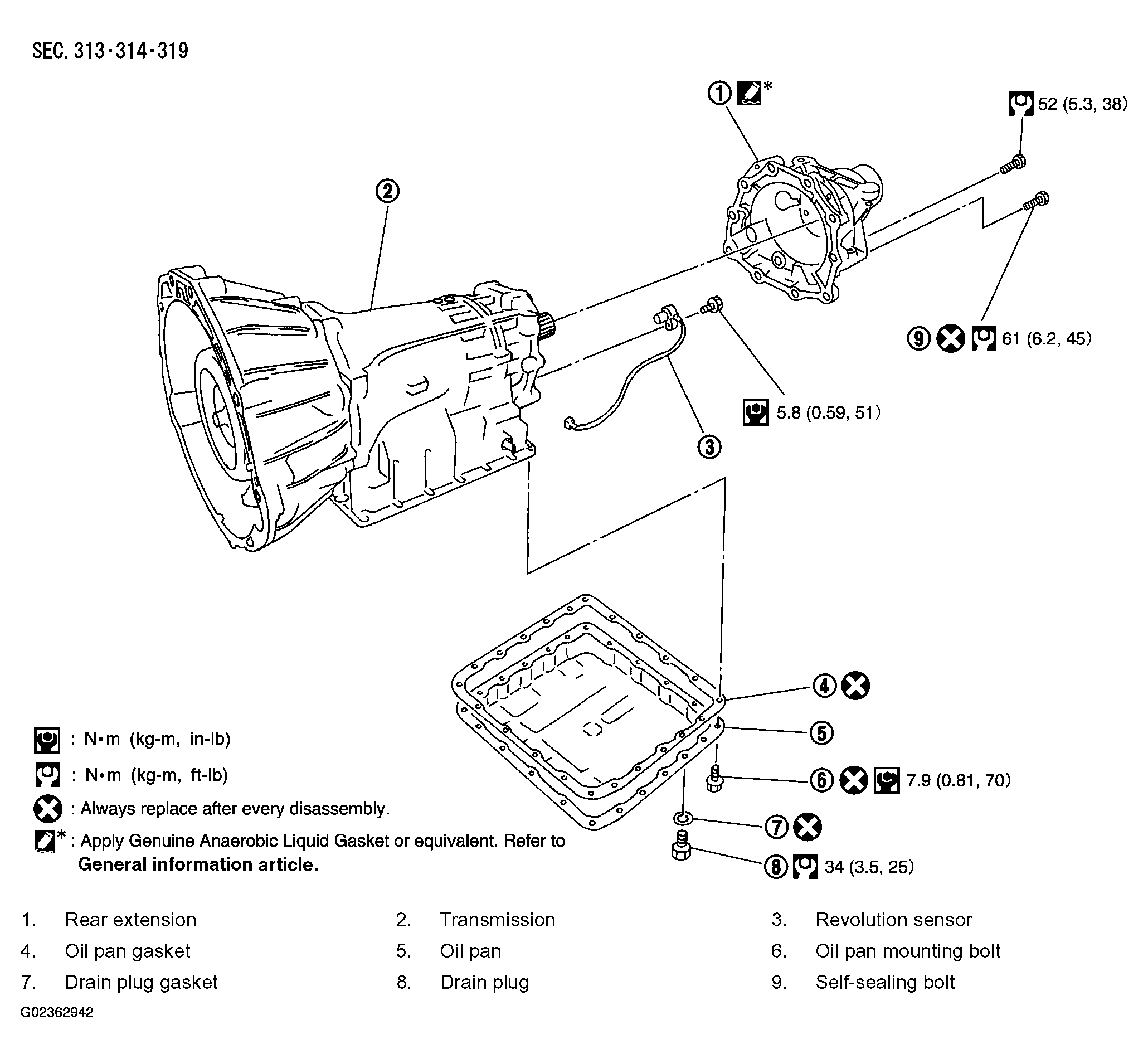

Fig 1: Revolution Sensor Replacement Components With Torque Specifications
G02362942Courtesy of NISSAN MOTOR CO., U.S.A.
