Cross-Sectional View (AWD Models)

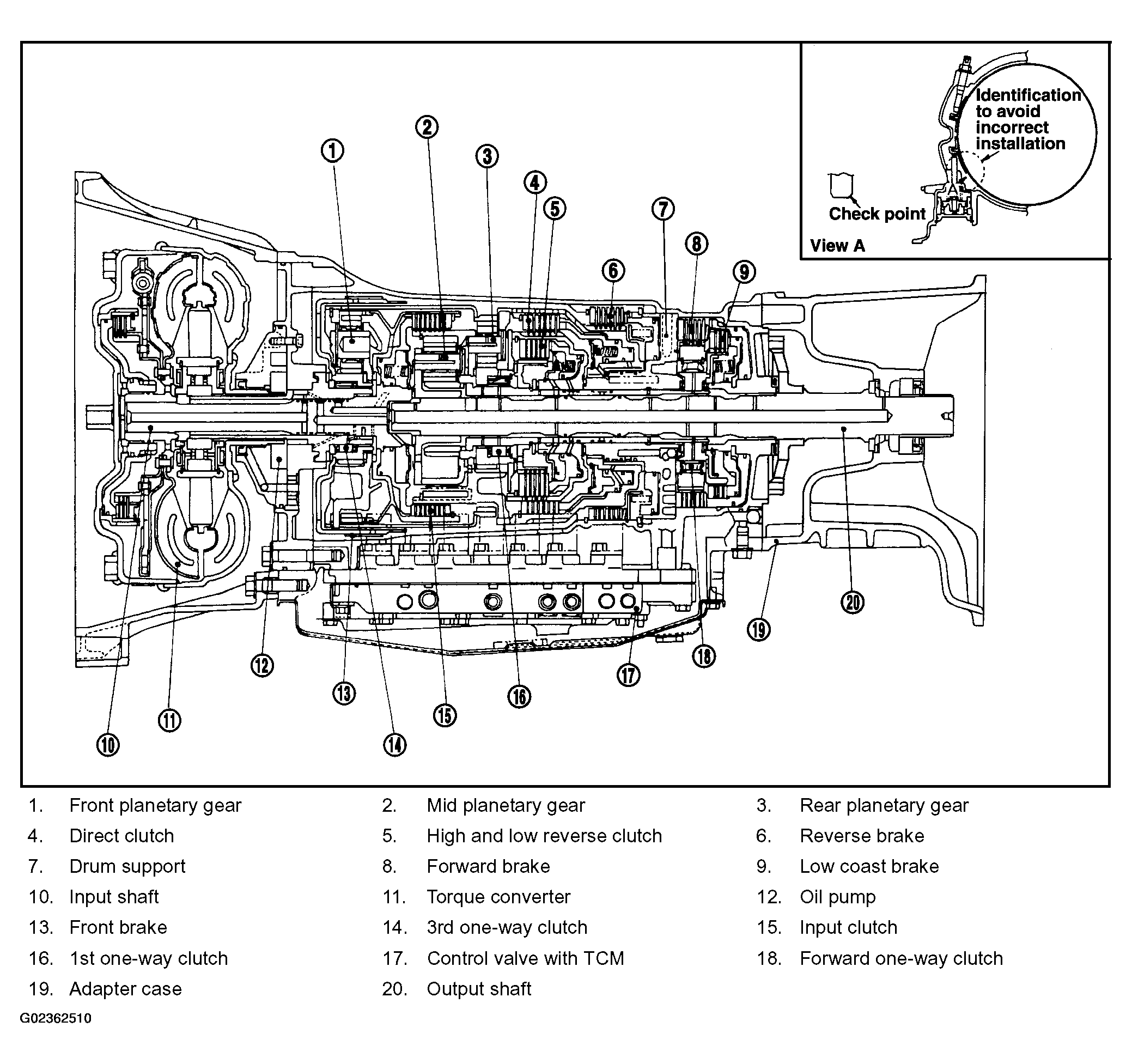

Fig 1: Cross-Sectional View (AWD Models) Of A/T Control System
G02362510Courtesy of NISSAN MOTOR CO., U.S.A.
