DTC P1217: Engine Over Temperature: Wiring Diagram

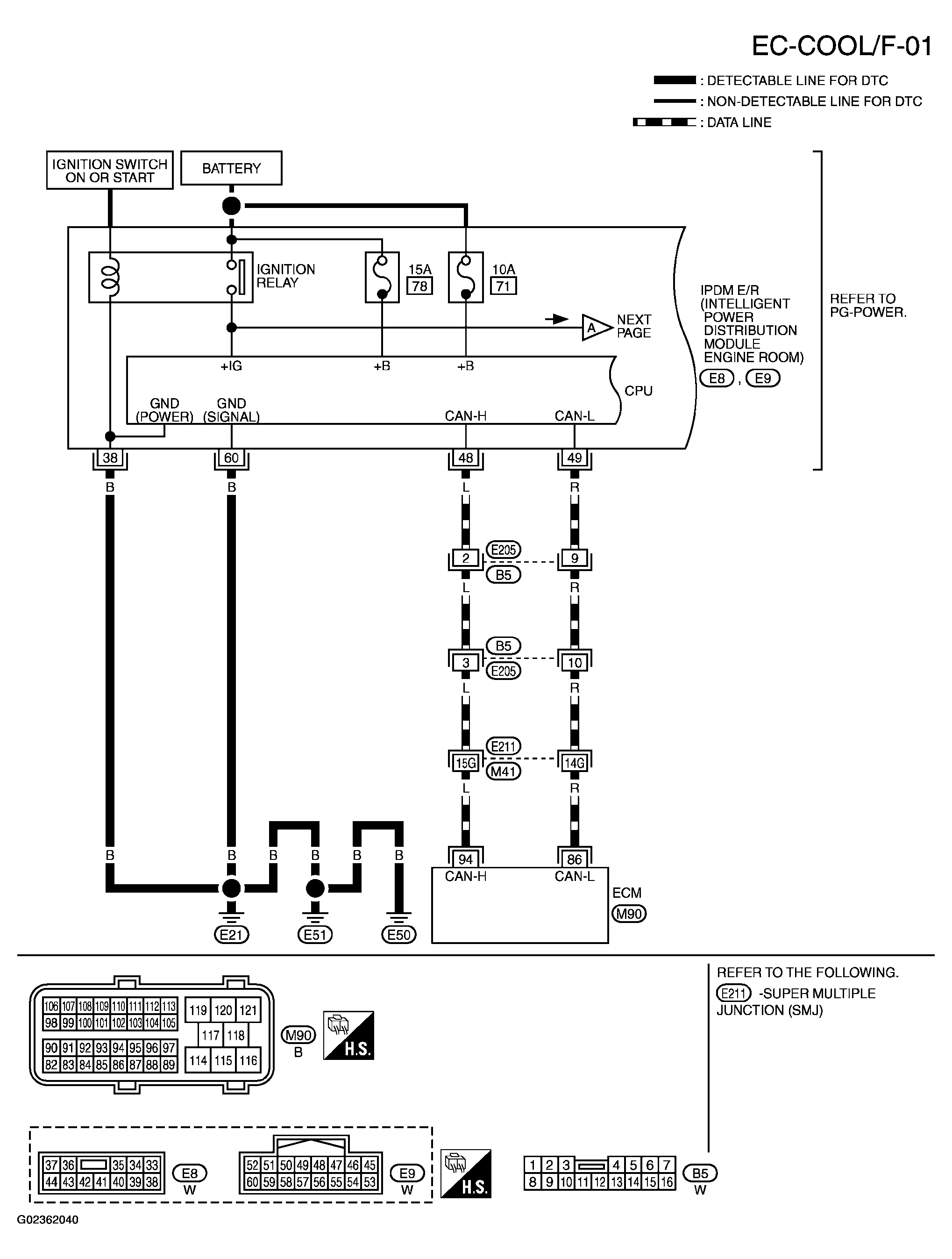

Fig 1: Wiring Diagram - EC-COOL/F-01
G02362040Courtesy of NISSAN MOTOR CO., U.S.A.

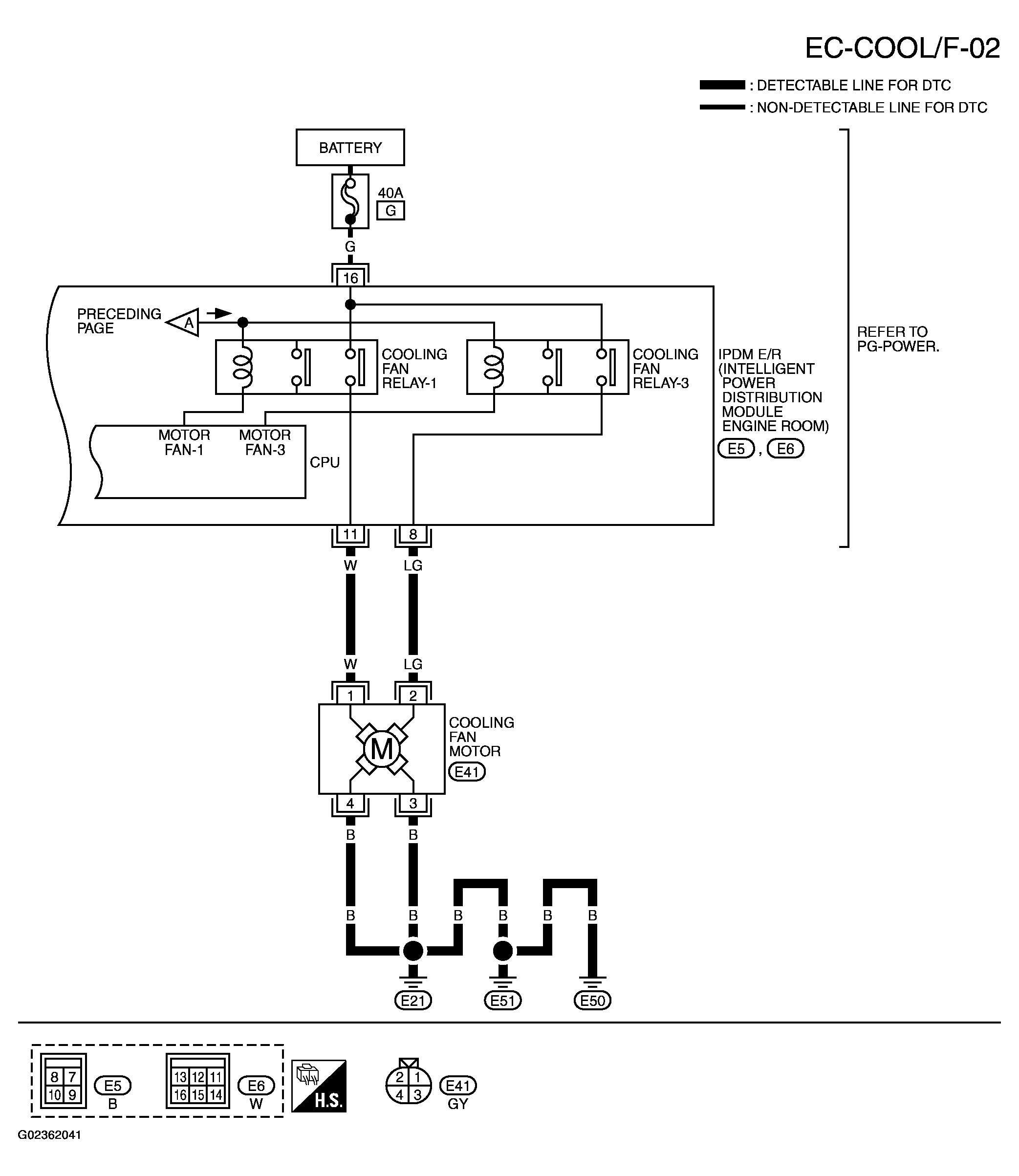

Fig 2: Wiring Diagram - EC-COOL/F-02
G02362041Courtesy of NISSAN MOTOR CO., U.S.A.
