System Description
>>
Evaporative Emission Line Drawing
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Evaporative Emission Line Drawing

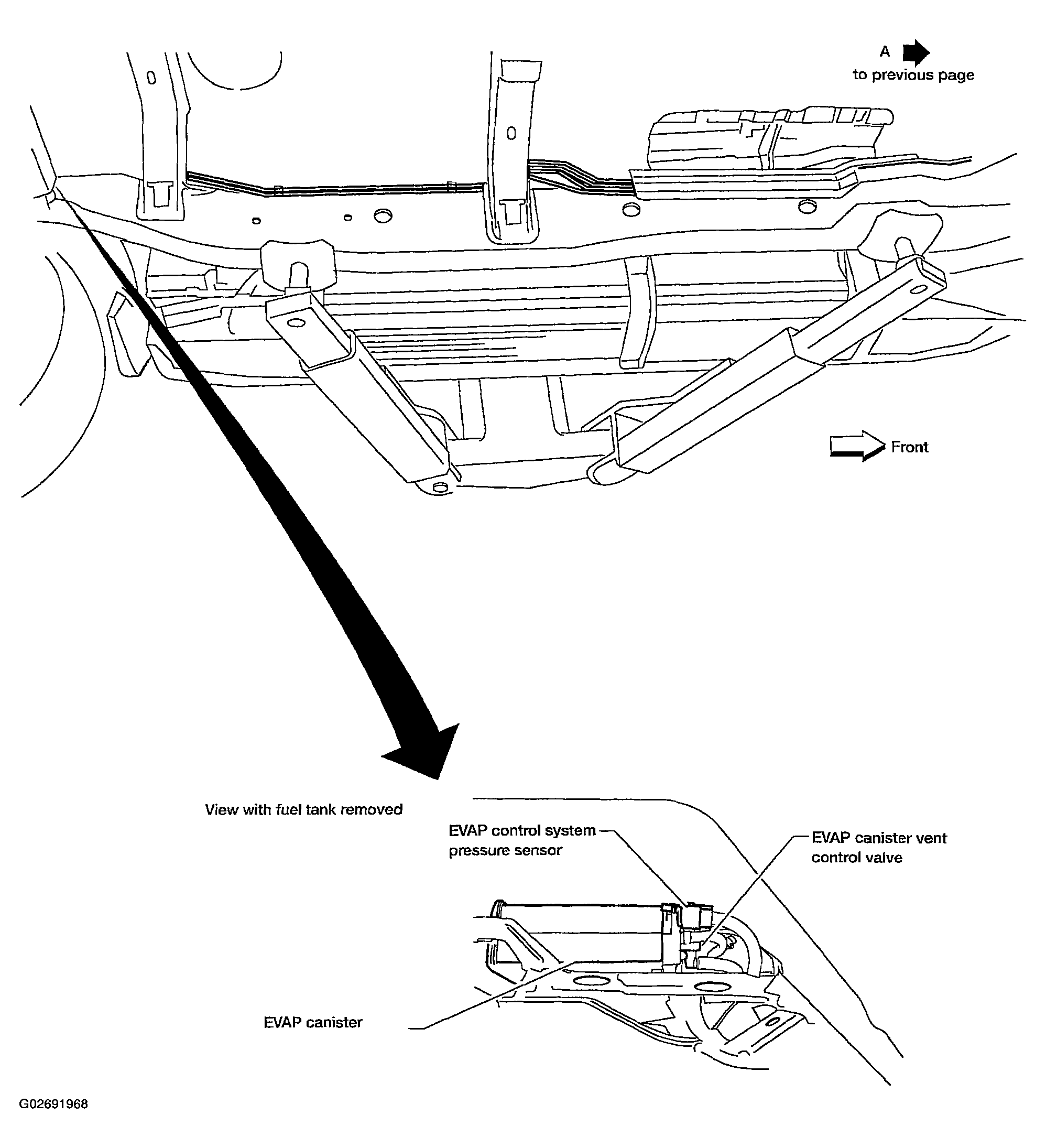

Fig 1: Identifying Evaporative Emission Line Drawing
Courtesy of NISSAN MOTOR CO., U.S.A.

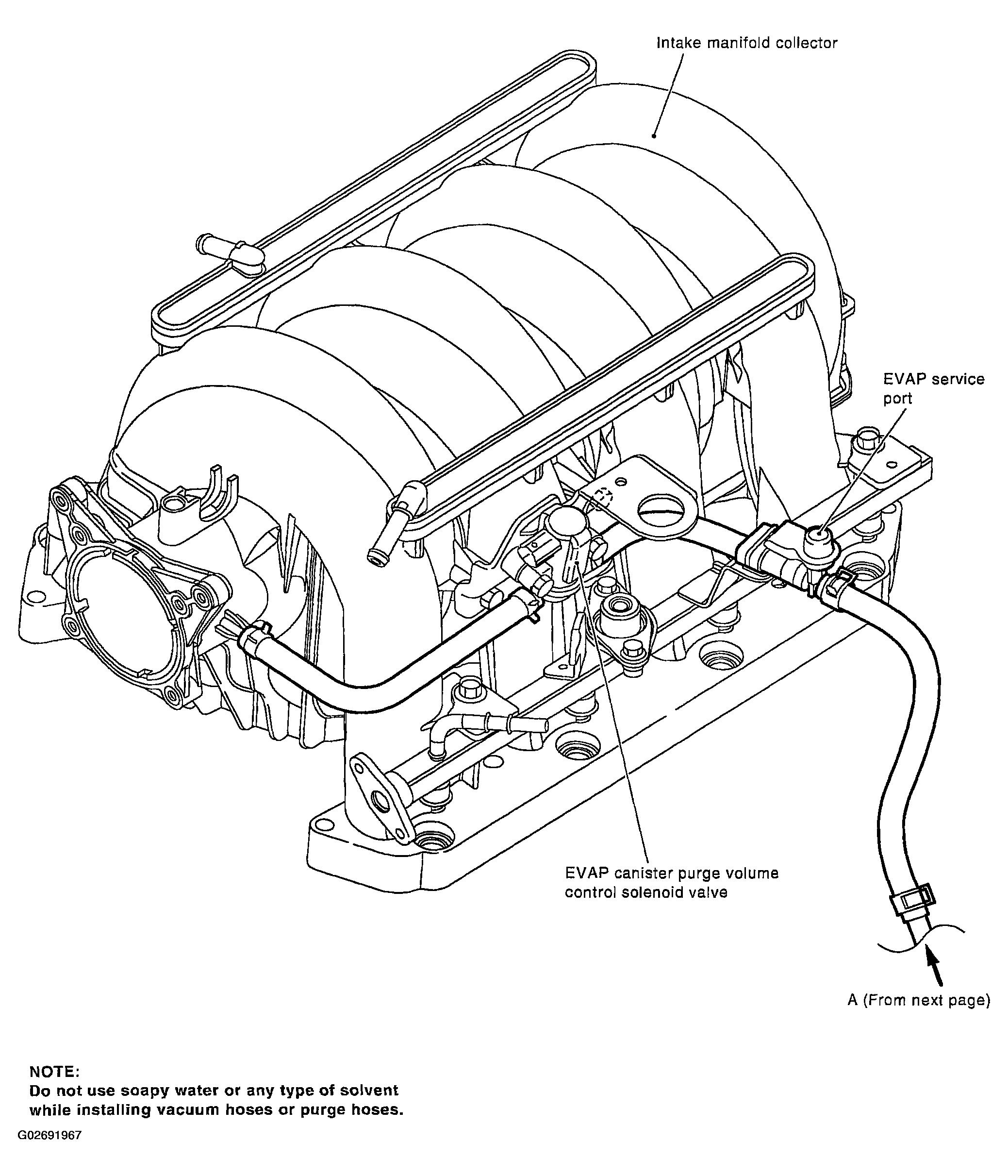

Fig 2: Identifying EVAP Canister System
Courtesy of NISSAN MOTOR CO., U.S.A.
