Indications Of 4WD Warning Lamp

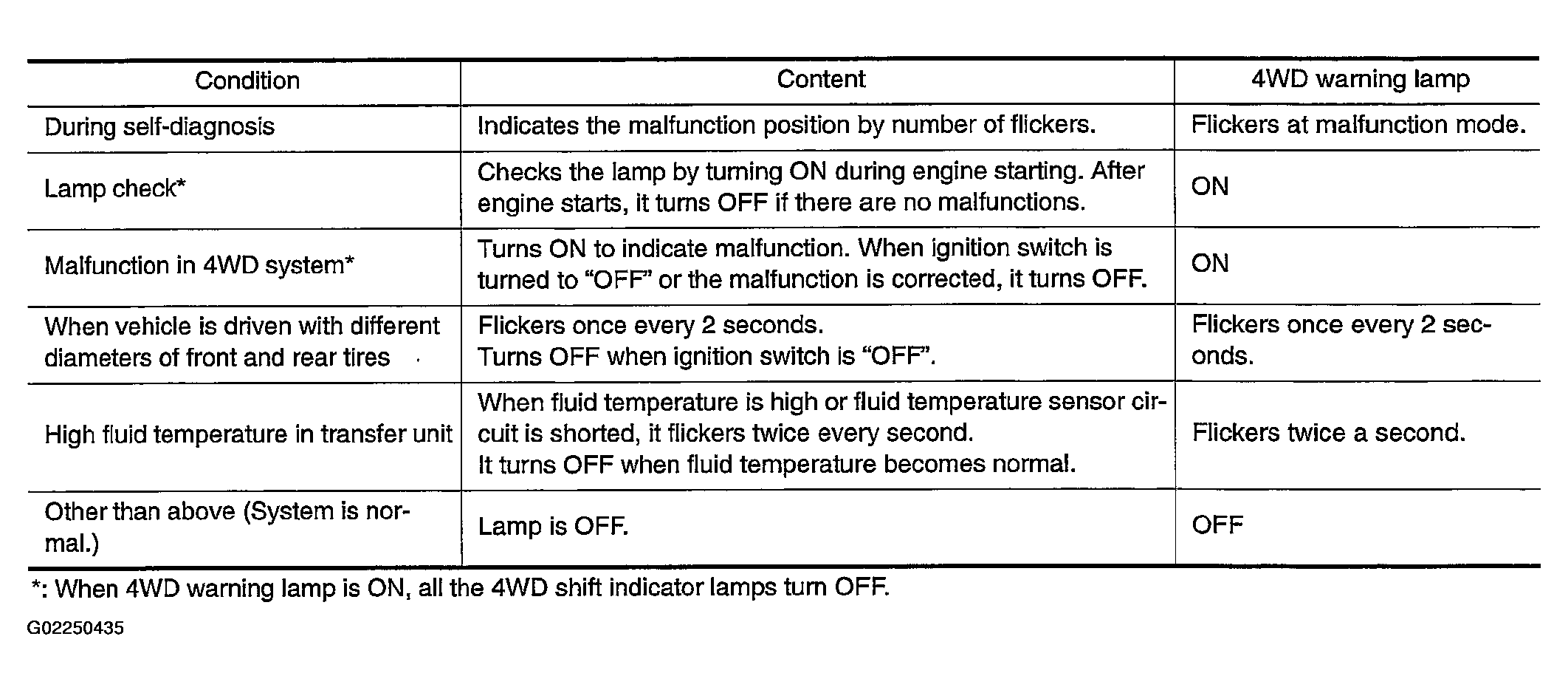

Fig 1: Indications Of 4WD Warning Lamp
Courtesy of NISSAN MOTOR CO., U.S.A.
