Disassembly and Assembly: Notes

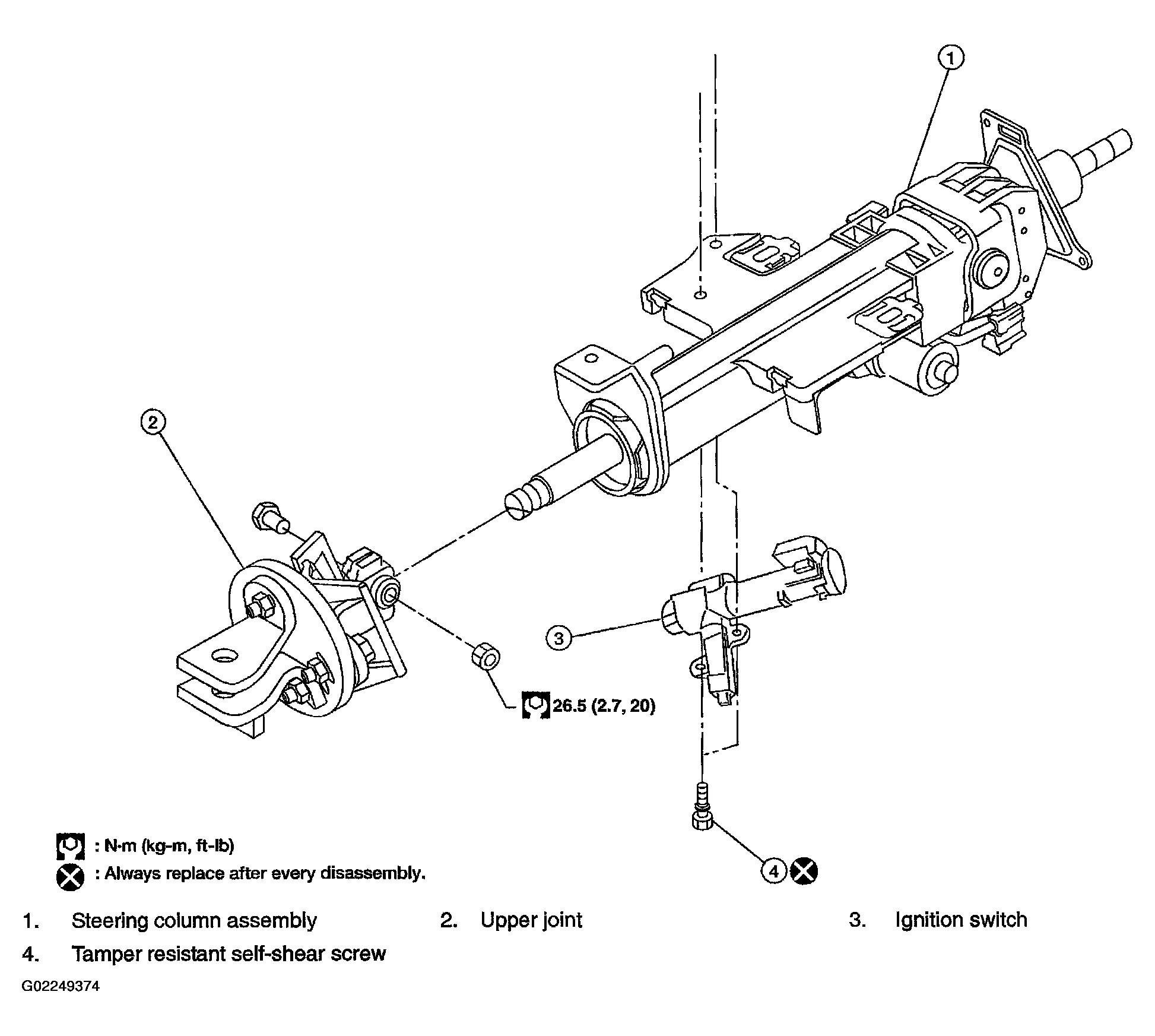

Fig 1: Exploded View And Torque Specification Of Steering Column
G02249374Courtesy of NISSAN MOTOR CO., U.S.A.
